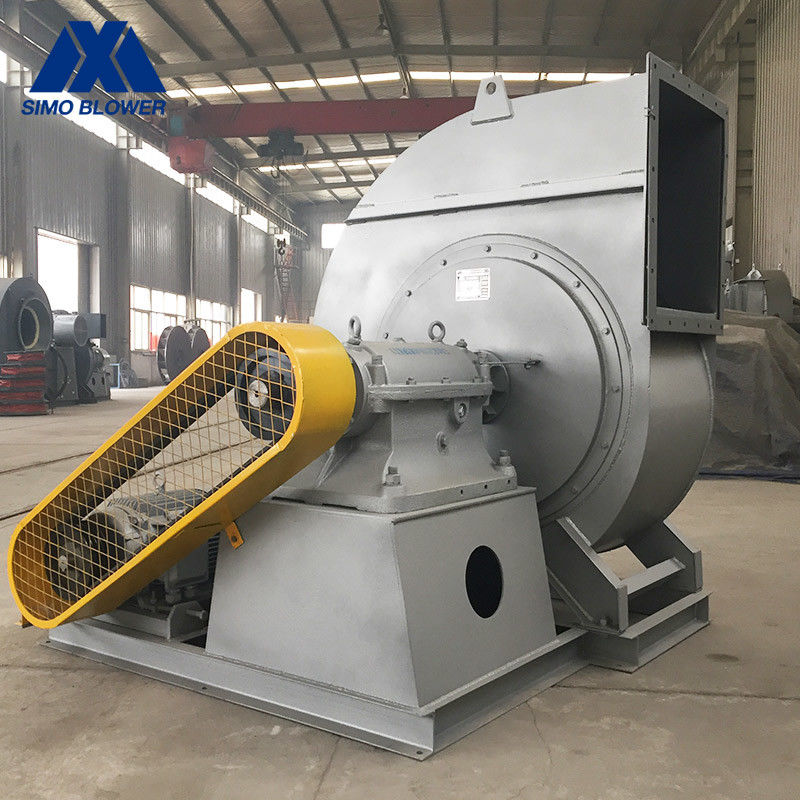

Backward 16Mn Forced Draft Of Industrial Kilns Flue Gas Centrifugal Blower Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-09
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Feature: High Performance
Mounting: Free Standing System Type: Single Inlet, Overhang Type
Color: Customer's Requirement Type: Centrifugal Fan
High Light:

flue gas blower

,

direct driven centrifugal fan

,

Kilns Flue Gas Centrifugal Blower Fan

Backward 16Mn Forced Draft Of Industrial Kilns Flue Gas Centrifugal Blower Fan


Introduction

The Backward 16Mn Forced Draft Of Industrial Kilns Flue Gas Centrifugal Blower Fan is the earliest used fan in China, and it is also the most commonly used fan.
Suitable for conveying clean air or light materials at normal temperature, most commonly used in industrial furnaces for air supply, light particle/powder/crush/fiber transportation, air drying/cooling of materials, ventilation and smoke exhaust, and other areas.
No viscous substances are allowed inside the gas, and the dust and hard particles contained in the gas are larger than 150 mg/m3, and the gas temperature does not exceed 80°C.

Technical data


series model

Blower Fan

Rotation Speed
(r/min)

Blower Fan

Total Pressure
(Pa)

Blower Fan

Air Capacity
(m³/h)

Power
(kW)

4-09

Centrifugal Blower Fan

7C 710 ~ 1800 233 ~ 2406 4939~24038 1.5 ~ 15
8C 630 ~ 1800 240 ~ 3150 6542~ 35882 1.5 ~ 37
10C 520 ~ 1300 258 ~ 2551 10931~50807 3 ~ 37
12C 420 ~ 1170 242 ~ 2980 15256 ~ 79015 4 ~ 75
1040 2349~1493 37778~70236 55


FAQ


1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
