| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO |
| Model Number: | SIMO Blower 4-10 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Total Pressure: | 8000pa |
|---|---|---|---|
| Structure: | Double Suction | Application: | Steel Plant |
| Type: | Double Suction | Blades: | Backward Curve Blade |
| Blade Number: | 12 | Characteristics: | Low Pressure |
| Feature: | Coupling Driving | Impeller Testing: | Dynamic Blancing Adjusting |
| Cooling Type: | Air Cooling/Circulating Water Cooling | ||
| High Light: | Steel Plant Sintering Fan,G4-73 Converter Induced Draft Fan,Double suction Sintering Fan |
||

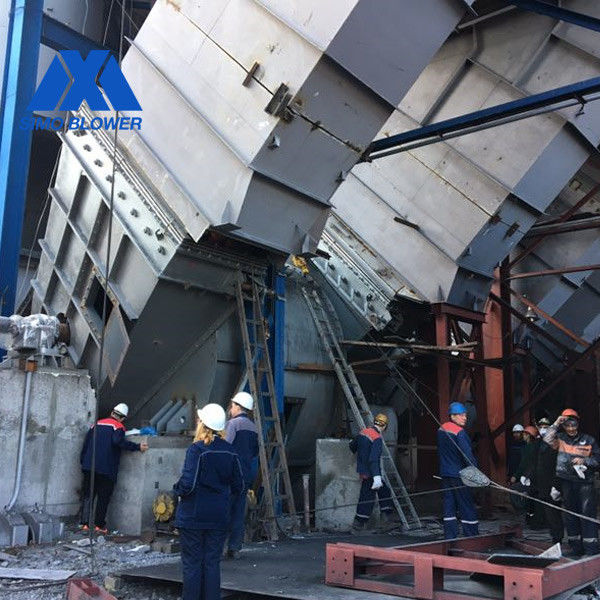

The converter induced draft fan has high gas temperature and high dust content, which requires high pressure and flow of the fan, which is a severe challenge for the fan. SIMO BLOWER has prepared a lot of technical solutions for our converter system customers to deal with extremely harsh working conditions, making stable operation and reliable performance the focus of the design and manufacture of sintering fans. Whether working under abrasive and high temperature conditions or keeping bearings lubricated and cooled, the experts at SIMO BLOWR will provide you with the best sintered blower solutions in the industry.
| Product | Flow range | Pressure range | Speed ofmain shaft | Impeller diameter | |||
| m3/h | cfm | pa | mmwc | rpm | mm | in" | |
| 6-11F | 52395-575176 | 30820-338340 | 30820-338340 | 234-1435 | ≤1450 | 1500-3600 | 59-142 |
| 6-12F | 15189-703455 | 8934-413798 | 2171-12259 | 221-1251 | ≤1450 | 1800-3300 | 70-130 |
| 5-11D | 590-560735 | 347-329845 | 684-9887 | 69-1100 | ≤4000 | 400-3300 | 15-130 |
| 6-2*11F | 1800-3300 | 1058-1942 | 2025-14068 | 107-199 | ≤1450 | 1500-3600 | 59-142 |
| 7-07D | 173-100788 | 100-59288 | 451-27519 | 45-2807 | ≤4000 | 500-3000 | 19-119 |
| 5-12C | 590-700735 | 347-412198 | 684-8687 | 69-886 | ≤4000 | 400-3300 | 15-130 |
| 9-11D | 603-154074 | 355-90632 | 364-8683 | 37-885 | ≤4000 | 400-3000 | 15-119 |
Xinxiang SIMO Blower Co., Ltd which was founded in 1955, mainly designs and manufactures Centrifugal fans and Axial flow fans which are applied to industrial systems, which is the senior member of China General Machinery Industry Association (CGMA).SIMO BLOWER is one of the main large fan manufacturers in Central China, which owns more than 200 employees and the production capacity of 15000 sets one year.There is an advanced Air flow Test Laboratory in our company. We master mature fan designing, testing, manufacturing technology, and can design and manufacture multipurpose fans according to users' requirements. So, we are able to meet users' complex and professional applications. SIMO BLOWER's products have been widely used in thousands of customers' industrial systems, such as Coal-fired power, Metallurgy, Papermaking, Cement and Glass production, Chemical industry, Material handling, Sewage treatment, Waste incineration, Subway ventilation, Industrial boiler and Dust removal systems etc.
