| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO |
| Model Number: | SIMO Blower 4-10 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Total Pressure: | 2139~8005Pa |
|---|---|---|---|
| Structure: | Cantilever | Application: | Boiler Matching |
| Type: | Coupling Drive | Blades: | Backward Curve Blade |
| Blade Number: | 12 | Characteristics: | Low Pressure |
| Feature: | Coupling Driving | Impeller Testing: | Dynamic Blancing Adjusting |
| Cooling Type: | Air Cooling/Circulating Water Cooling | ||
| High Light: | Boiler matching induced draft fan,Centrifugal Boiler induced draft fan,Coupling Driving Boiler induced draft fan |
||

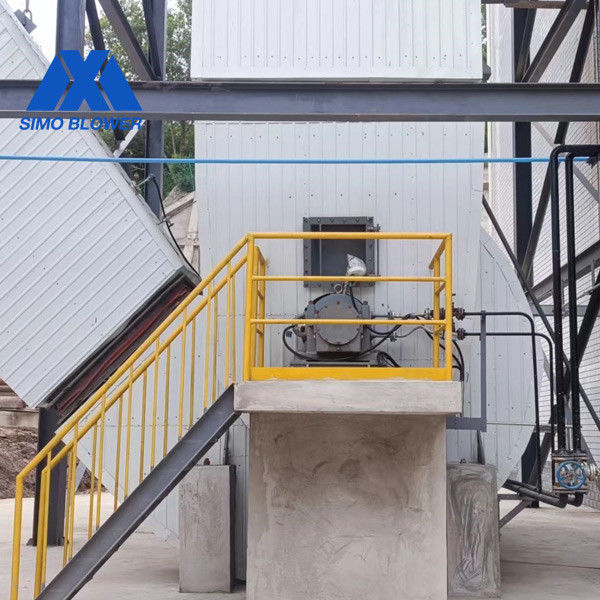

Centrifugal fan Boiler induced draft fan Various specifications factory direct sales
Industrial boiler is one of the most popular application areas for SIMO BLOWER‘s products. SIMO BLOWER can provide full sets of blower fan products, can meet 1~450T of coal fired boiler, biomass boiler, waste incineration boiler and other industrial boiler systems’ performance requirements.
SIMO BLOWER is available for sale to the users of industrial boiler fan including: Coal-fired boiler fan, Biomass fuel boiler fan, Waste incineration boiler fan, which is used to industrial boiler f orced draft fan (FD Fan), induced draft fan(ID Fan), primary air fan(PA Fan), secondary air fan(SA Fan), as well as flue gas dust removing fan, flue gas desulfurization fan(FGD Fan), flue gas denitrification fan and so on.
| Product | Flow range | Pressure range | Speed ofmain shaft | Impeller diameter | |||
| m3/h | cfm | pa | mmwc | rpm | mm | in" | |
| 6-11F | 52395-575176 | 30820-338340 | 2304-14068 | 234-1435 | ≤1450 | 1500-3600 | 59-142 |
| 6-12F | 15189-703455 | 8934-413798 | 2171-12259 | 221-1251 | ≤1450 | 1800-3300 | 70-130 |
| 7-07D | 173-100788 | 100-59288 | 451-27519 | 45-2807 | ≤4000 | 500-3000 | 19-119 |
| 5-11D | 590-560735 | 347-329845 | 684-9887 | 69-1100 | ≤4000 | 400-3300 | 15-130 |
| 9-11D | 603-154074 | 355-90632 | 364.8-8683 | 37-9242 | ≤4000 | 400-3000 | 15-119 |
| 4-10D | 10696-952530 | 6291-560312 | 615-8302 | 262-847 | ≤4000 | 400-3000 | 15-120 |
| 9-10D | 273-81858 | 160-48152 | 348-15425 | 35-1573 | ≤4000 | 250-2000 | 9-79 |
| 6-05D | 884-321950 | 520-189383 | 542.3-9112 | 55-930 | ≤4000 | 400-3000 | 15-119 |
| 7-07D | 173-100788 | 100-59288 | 451-27519 | 45-2807 | ≤4000 | 500-3000 | 19-119 |
| 9-11D | 603.7-154074 | 355-90632 | 364-8683 | 37-9242 | ≤4000 | 400-3000 | 15-119 |
Xinxiang SIMO Blower Co., Ltd which was founded in 1955, mainly designs and manufactures Centrifugal fans and Axial flow fans which are applied to industrial systems, which is the senior member of China General Machinery Industry Association (CGMA).SIMO BLOWER is one of the main large fan manufacturers in Central China, which owns more than 200 employees and the production capacity of 15000 sets one year.There is an advanced Air flow Test Laboratory in our company. We master mature fan designing, testing, manufacturing technology, and can design and manufacture multipurpose fans according to users' requirements. So, we are able to meet users' complex and professional applications. SIMO BLOWER's products have been widely used in thousands of customers' industrial systems, such as Coal-fired power, Metallurgy, Papermaking, Cement and Glass production, Chemical industry, Material handling, Sewage treatment, Waste incineration, Subway ventilation, Industrial boiler and Dust removal systems etc.
