| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 4-10 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | Industrial Ventilation | Feature: | High Performance |
|---|---|---|---|
| Main Shaft: | High-strength Carbon Structural Steel | Voltage: | 380V/415V/440V/660V/6KV/10KV |
| Power Source: | Three Phase AC Motor | Bearing Type: | Rolling Bearing |
| OEM Service: | Provide | Name: | Industrial Boilers FD Fan |
| Impeller Testing: | Dynamic Blancing Adjusting | ||
| High Light: | 10KV Industrial Boiler Fan,10KV Fd Fan In Power Plant,High Performance Boiler Fan |
||

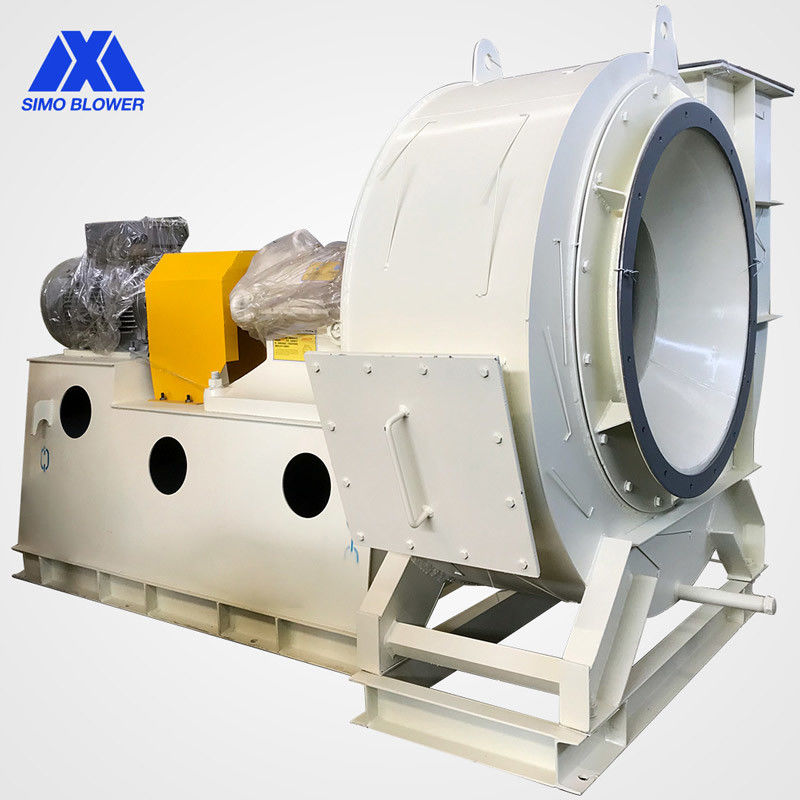

This industrial boiler FD fan are mainly applied in industrial boilers, like CFB boilers, steam boilers, coal fired boiler, biomass boilers, and so on. Blower fan, boiler draught fan, boiler smoke-exhaust fan, boiler primary air/secondry air/ circulating blower fan, and so on. Below boiler fd fan for your reference.
| Performance | Pressure range | 3031---16205 | Pa |
| Air flow range | 2065~316891 | m3/h | |
| Impeller diameter | 400~2370 | mm | |
| Speed | 960~3550 | rpm | |
| Material | boiler fd fan case | Q235, Q345, stainless steel | Design as special |
| boiler fd fan shaft | 45# steel, Q304, SS304,SS316L | ||
| boiler fd fan impeller | Q304, 12Cr1Mov,15Crmov, 15MnV | ||
| Medium | 10---200℃ | Dustiness<80 g/m3 | incombustible |
| Motor | Siemens, ABB, WN, SIMO, LA | IP 54,55,56 | 3 phase |
| Optional | System base frame, Protective screening, | ||
| components | Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument, Lube system, Overhead lube tank. |
||
Xinxiang SIMO BLOWER Limited Company which was founded in 1995, mainly designs and manufactures Centrifugal fans and Axial flow fans which are applied to industrial systems, which is the senior member of China General Machinery Industry Association. SIMO BLOWER is one of the main large fan manufacturers in Central China, whichcovers an area of 100,000 square metres, owns more than 200 employees and the production capacity of 15000 sets one year.
There is an advanced Air flow Test Laboratory in our company. We master mature fan designing, testing, manufacturing technology, and can design and manufacture multipurpose fans according to users' requirements. So, we are able to meet users' complex and professional applications. SIMO BLOWER's products have been widely used in thousands of customers' industrial systems, such as Coal-fired power, Metallurgy, Papermaking, Cement and Glass production, Chemical industry, Material handling, Sewage treatment, Waste incineration, Subway ventilation, Industrial boiler and Dust removal systems etc.
