| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 6-04 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Type: | Centrifugal Fan | Feature: | High Efficiency |
|---|---|---|---|
| After-sales Service Provided: | Field Installation, Commissioning And Training | Drivetrain: | Direct/Coupling Driven/V-belt Driven |
| Noise: | Optional | Bearing Type: | Rolling Bearing |
| Keywords: | Steel Mill Fan | Warranty: | 1 Year |
| High Light: | exhaust blower fan 4500kW,exhaust blower fan 700000Nm3/hr,exhaust blowers industrial 4500kW |
||

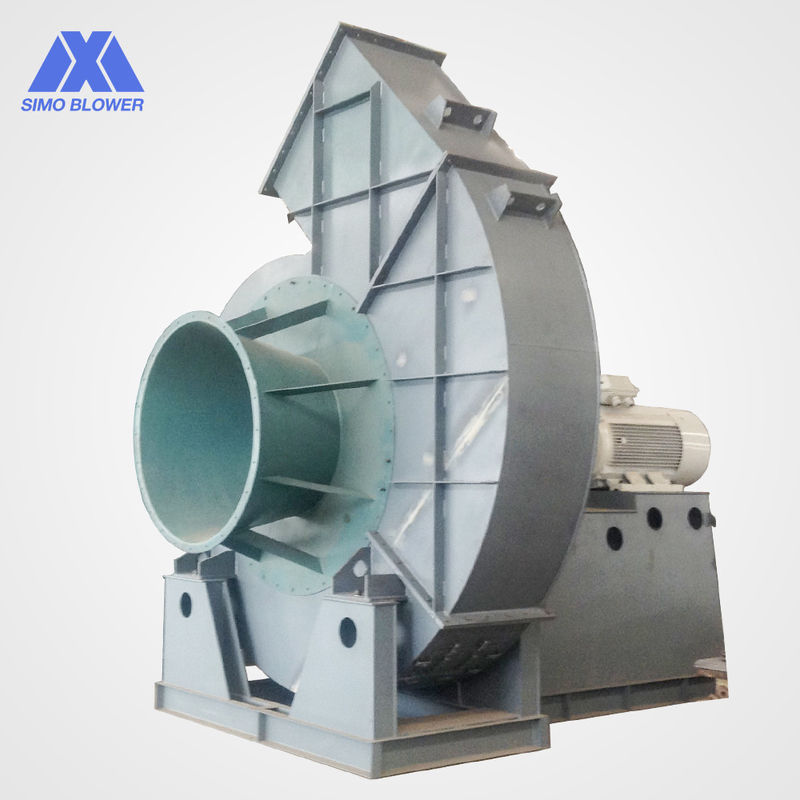

The kiln head exhaust fan provides negative pressure for the kiln head dust collector and discharges the dedusted kiln head exhaust gas into the atmosphere. The working temperature of the fan is 180-250°C, and the dust content is less than 50mg/Nm³. The fan adopts a high-efficiency, low-noise, low-noise, and large-flow model. The impeller is an arc-shaped disc with single-plate backward blades, which has the characteristics of wear resistance, high temperature resistance, and long service life.
| model | Air Capacity(m³/h) | Total Pressure(Pa) | High Efficiency(10%) | Rotation Speed(r/min) |
| No8D~28D | 6550~401000 | 1120~12500 | 86.5 | 730~1450 |
| No20F~33.5F (单,双吸) | 77820~1050000 | 4030~13400 | 83 | 730~960 |
1. High temperature measures: the use of high temperature alloy, reasonable cooling measures, scientific high temperature deformation prevention structure
2. Wear-resistant measures: high hardness composite material, ensure the use of impeller, prolong the life
3. Anti-corrosion measures: a variety of anti-corrosion measures to adapt to different corrosion conditions
4. Efficient products: simulation analysis and optimization of the efficient model, strict processing process
1. Strong technical research and development strength, advanced, scientific and accurate design;
2. The manufacturing process is rigorous and accurate, and the process equipment is perfect and advanced;
3. Scientific and standard performance test center to verify model parameters;
4. Rich experience in field testing;
5. Professional team, no worries after sale.
1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
Xinxiang SIMO Blower Co., Ltd., formerly known as Xinxiang Blower Factory, was established in 1955, which is the designated factory for fan production by the former Ministry of Machinery Industry. In 2006, the state-owned enterprise was restructed. In August 2008, the company was registered as Xinxiang SIMO Blower Limited Company, with a registered capital of RMB32,000,000. In June 2016, the company was renamed as Xinxiang SIMO Blower Co., Ltd. In May 2018, the national SME share transfer system was listed. It is one of the larger fan manufacturers in central China and a member unit of China Fan Association. SIMO Blower is a state-level high-tech enterprise, safety production standardization of level3 enterprise, a provincial level1 advanced management enterprise, and has won more than 20 provincial and municipal honorary titles such as "contract-honoring & trustworthy enterprise", "advanced quality management unit", and "customer satisfied enterprises". The company has passed the national level industrialization and information integration management system assessment, ISO9001 quality management system certification, ISO14001 environmental management system certification, OHSAS45001 occupational health and safety management system certification and CE certification.
