Free Customization Raw Mill Fan Air Blower Fan for Cement Plant

Name: Free Customization Raw Mill Fan Air Blower Fan for Cement Plant
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: SIMO Blower 4-10
Price: 2,500.00 USD
Availability: InStock

Brand Name

SIMO

Product Model

SIMO Blower 4-10

Certificate

CE, ISO9001:2008,TUV

Country Of Origin

Henan China

MOQ

1 Set

Unit Price

Negotiable

Payment Method

T/T, L/C, Payment Term Is Negotiable

Supply Capacity

500 Sets Per Month

Product Details

Highlight:

custom cement plant air blower

raw mill fan with warranty

industrial cement fan customization

Application: Industrial/ Explosion Resistant

Mounting Types: Base Mounted

Air Flow: 10696-952530m³/H

Total Pressure Range: 615-8302PA

Speed: ≤4000rpm

Material: Carbon Steel

Drive Type: Direct Driven, Coupling Driven, Belt Driven

Voltage: 380V/415V/440V/660V/6KV/10KV

Customized Support: ODM OEM OBM

Bearing Cooling: Air Cooling Or Circulating Water Cooling

Warranty: 1 Year

Product Description

Detailed Specifications And Features

Detail introduction:

We offer free customization for raw mill air blower fans, specifically designed for cement plants. Tailored to meet unique operational requirements, these fans ensure optimal airflow, high efficiency, and durability under heavy-duty conditions. Built with advanced materials and precision engineering, they provide reliable performance in raw material processing, enhancing productivity and reducing energy consumption. Perfect for cement plant applications, our fans deliver long-lasting, efficient, and cost-effective solutions to support your operations.

Product features:
1.It can work stably at a high medium temperature, and can output a large gas flow with low noise.
2.The fan blade placement angle is optimized, more wear-resistant and longer service life.
3.The air damper can be used to flexibly adjust the pressure and flow of the fan during operation. It is also possible to select a variable frequency motor, with adjust the pressure and flow of the fan by changing the speed.
4.For the material of impeller and main shaft, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature resistant high-strength alloy steel under different working conditions temperature and working speed, so that the impeller and main shaft still maintains a reliable strength at high temperature.
5.Fan systems with impeller diameters less than 1400 mm at normal temperature do not require additional bearing cooling devices, reducing users' investment and maintenance.

The following datas are only part of performance of our product.
If you can't find the datas you need, pls send us your performance requirements
we will provide you customized design service.

Series no.	4-10 series	Feature selection
Series no.	4-10 series	Normal	anti-corrosion	wear-resisting	High temperature	anti-explosion	Remarks
Performance	Impeller diameter	400-3000mm
	Rotation speed	≤4000rpm
	Pressure range	615-8302Pa
	Flow range	10696-952530m³/h
Structure	Blade type	Backward, Straight, Aerofoil type
	Impeller support	SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type
	Lubrication method	Oil bath lubrication, grease lubrication, lubrication oil station					Can be specified
	Cooling method	Air cooling, Water cooling, Oil cooling					Can be specified
	Driven mode	Direct driven, Coupling driven, Belt driven					Can be specified
Gas composition	Gas temperature	Normal	Customer request	Customer request	≥250ºC	Customer request
Gas composition	gas characteristic	Clean gas	Corrosive gas	Particulate dust	High temperature gas	Flammable gas, explosive gas
System configuration	Motor brand	Chinese famous brand, ABB, Siemens, WEG etc					Can be specified
	Impeller	High quality carbon steel	FRP, Stainless steel, Rubber Lining	Wear-resistant layer or wear-resistant liner, ceramic patch	High temperature high quality alloy steel	FRP, Aluminum alloy	Can be specified
	Air inlet cone	High quality carbon steel	FRP, Stainless steel, Rubber Lining	High quality carbon steel	High quality carbon steel	High quality carbon steel	Can be specified
	Casing	High quality carbon steel	FRP, Stainless steel, Rubber Lining	High quality carbon steel	High quality carbon steel	High quality carbon steel	Can be specified
	Air damper	High quality carbon steel	FRP, Stainless steel, Rubber Lining	High quality carbon steel	High quality carbon steel	High quality carbon steel	Can be specified
	Main shaft	High strength carbon steel, Alloy structural steel					Can be specified
	Bearing	ZWZ, SKF, FAG, NSK					Can be specified
	Bearing housing	Cast iron
	Foundation bolts	GB799-1988
Option parts	System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.

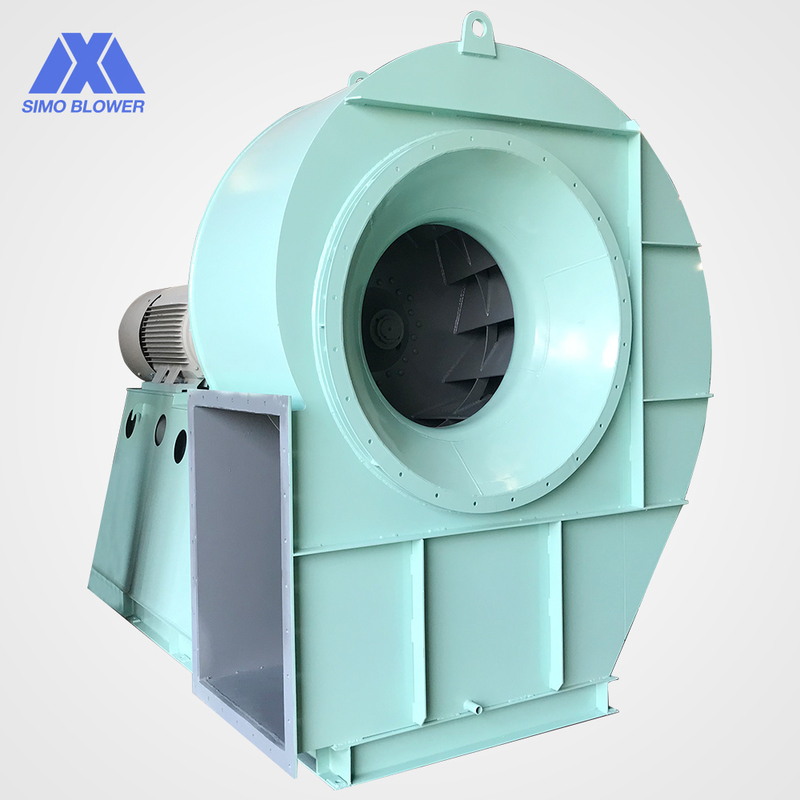

Free Customization Raw Mill Fan Air Blower Fan for Cement Plant 1

Free Customization Raw Mill Fan Air Blower Fan for Cement Plant 2

Free Customization Raw Mill Fan Air Blower Fan for Cement Plant 3

Free Customization Raw Mill Fan Air Blower Fan for Cement Plant 4 More than 300 sets of various processing and testing equipment, with an annual production capacity of 10,000 sets. Meet emergency delivery needs and guarantee your engineering time.Accurately control every link, ensure the production quality of equipment, and ensure zero error.
