Efficient Energy Saving Boiler Fan High Temperature Materials Cooling

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-10
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Material: Carbon Steel/Alloy Steel/Stainless Steel Main Shaft: High-strength Carbon Structural Steel
Blade: Forward / Backward/Backward Curved Electric Current Type: AC
Impeller Test: Ultrasonic Flaw Detection Delivery Time: 30 Days
High Light:

Efficient Energy Saving Boiler Fan

,

Boiler Fan High Temperature Cooling

,

Ultrasonic Flaw Detection Boiler Fan

Efficient Energy-Saving Boiler Fan High Temperature Materials Cooling



Introduction



G4-10 and Y4-10 series ventilation and induced draft fans are suitable for the ventilation and induced draft fan systems of 2~670T/h steam boilers in thermal power plants.

The fan housing shall be made in steel and its thickness and strength should be able to withstand the maximum running weight of the fan. The volute shall be continuously welded and equipped with access door for removing possible foreign objects entered into the scroll.



Detail introduction



Fan inlet shall be aerodynamic design round curved section to transit the air to the wheel cone smoothly, it shall have good commutated effect to reduce turbulence, improve fan efficiency and reduce noise.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
4-10 8C 1450 21041400 1615630993 18.55
9C 960 ~ 1450 775 ~ 2668 15229 ~ 44128 11 ~ 37
10C 730 ~ 1450 553 ~ 3301 15886 ~ 60533 7.5 ~ 55
11C 730 ~ 1450 669 ~ 4003 21144 80570 11 ~ 90
12C 730 ~ 1450 797 ~ 4777 25661 ~ 104600 15 ~ 132
14C 730 ~ 1450 1086 ~ 6541 43591 166100 37 ~ 315
16C 580 ~ 960 895 ~ 3709 51699 ~ 164150 45 ~ 185
18C 580 ~ 960 1133 ~ 4710 73610 ~ 233730 75 ~ 280
20C 580 ~ 960 1400 ~ 5837 100970 320610 110 ~ 520
22C 480 ~ 960 1216 ~ 6865 116000 434000 140 ~ 850
25C 480 ~ 730 1579 ~ 5138 171000 484000 165 ~ 700
28C 375 ~ 730 1205 ~ 6400 187000 ~ 680000 320 ~ 1250
29.5C 596 ~ 745 3236 ~ 7218 348000 ~ 810000 800 ~ 1600


Product Features



The wheel shall be steel backward-bladed centrifugal and fully welded. The wheel shall be statically and dynamically balanced to level G4.0 in compliance with ISO standard 1940. Steady air-flow and noise should be minimal when the wheel is operating at the maximum allowable speed. The performance of the fan will not be affected because of the special characteristics of the wheel.



FAQ


1,What parameters need to be provided when you design the industrial centrifugal fans?

 A: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2,How about your company’s pre-sales service and after-sales service?
A: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3,Does your company have qualifications?
 A: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.

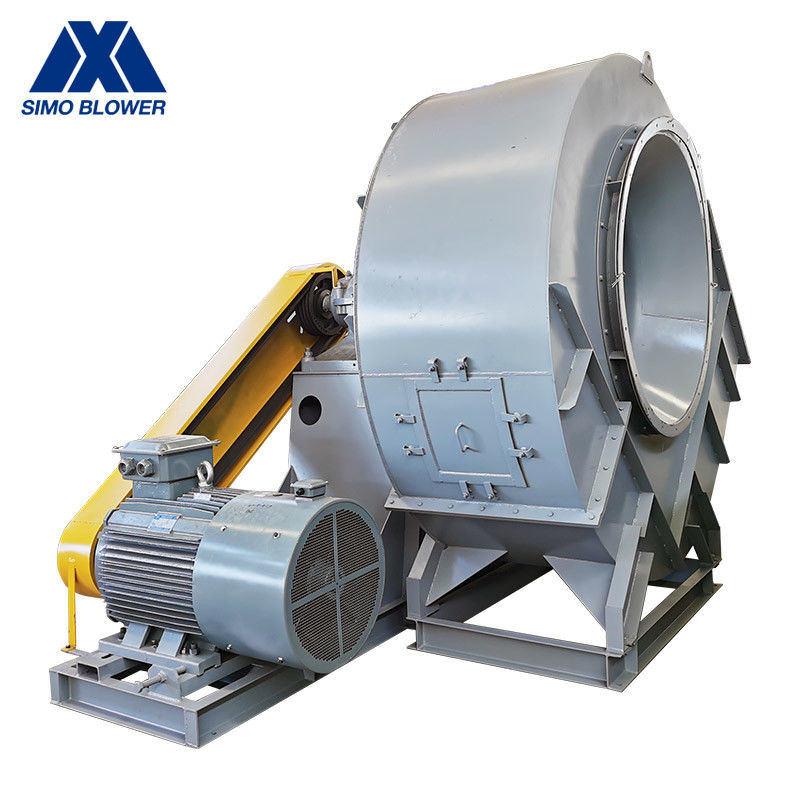

Efficient Energy Saving Boiler Fan High Temperature Materials Cooling 0

Efficient Energy Saving Boiler Fan High Temperature Materials Cooling 1

Efficient Energy Saving Boiler Fan High Temperature Materials Cooling 2
