| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 5-12 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Warranty: | 1 Year | Motor Type: | Three Phase AC Motor |
|---|---|---|---|
| Lubrication: | Oil Bath Lubrication | Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung |
| Delivery Time: | 30 Days | Blade: | Forward / Backward/Backward Curved |
| High Light: | Metallurgy Air Supply Cement Fan,Aluminium Alloyed Cement Fan,TUV Air Exhaust Fan |
||

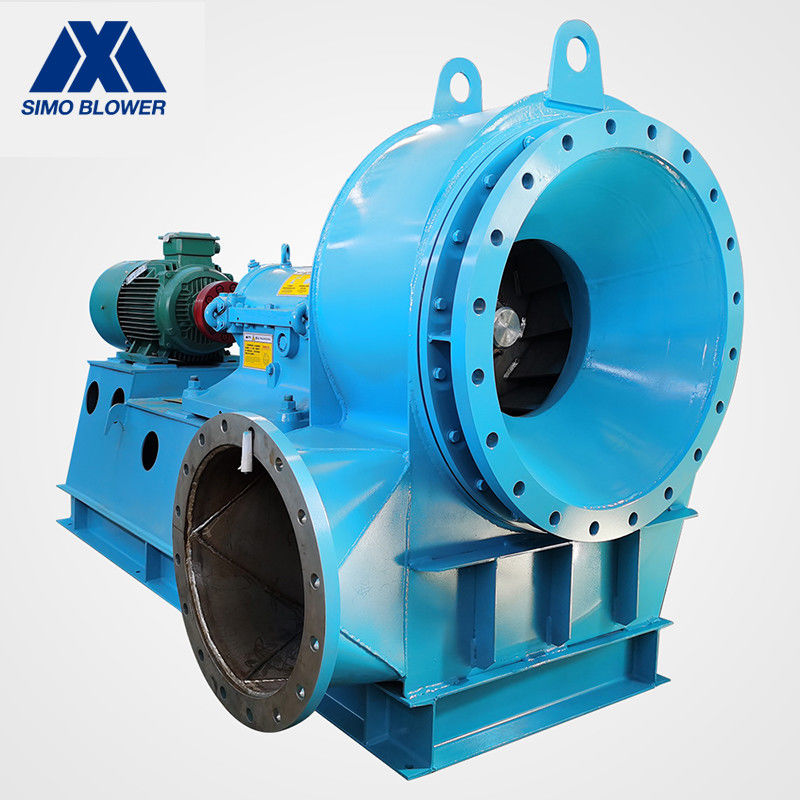

Aluminium Alloyed High Air Flow Air Supply Cement Fan Metallurgy
Introduction
The 5-12 series centrifugal fan is an enhanced version of the 5-11 series medium pressure centrifugal fan.
It is suitable for conveying non-corrosive high temperature gas with the temperature not exceeding 500℃. If the dust content of the gas is large, the dust removal device with the dust removal efficiency not less than 85% should be equipped before the air inlet of the fan to improve the service life of the fan.
Detail introduction
The housing is welded into a cochlear body with steel plate, and the housing can be made into a whole or two or three open structure. For the air guide, the cochlear plate is properly thickened to strengthen its wear resistance. The inlet is streamlined and fixed at the inlet side of the fan. The transmission group is composed of spindle, water cooling device, bearing and so on.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 5-12 | 4D | 2500～3550 | 742～2221 | 2065～5564 | 2.2～5.5 |
| 5D | 2240～3150 | 964～2819 | 3772～9851 | 4～11 | |
| 6.3D | 2000～2800 | 1221～3545 | 6737～17516 | 7.5～22 | |
| 8D | 1400～2000 | 1100～3323 | 9656～25619 | 11～30 | |
| 10D | 1250～1800 | 1419～4483 | 15451～44634 | 22～75 | |
| 12.5D | 1000～1400 | 2145～4234 | 24143～67803 | 37～110 |
Product Features
It has fine air volume and pressure classification, wide coverage and large choice for users. It has the characteristics of good corrosion resistance and wear resistance, low noise, stable operation and so on. It is an ideal general anti-corrosion fan.
FAQ
1,What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2,How about your company’s pre-sales service and after-sales service?
A: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3,Does your company have qualifications?
A: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
