| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 5-12 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Feature: | High Performance | Motor Type: | Three Phase AC Motor |
|---|---|---|---|
| Lubrication: | Oil Bath Lubrication | Bearing Type: | Rolling Bearing |
| Delivery Time: | 30 Days | Medium: | Clean Air/Dusty Air |
| High Light: | Double Suction Antiwear Cement Fan,SS Antiwear Cement Fan,2500r/min Air Exhaust Fan |
||

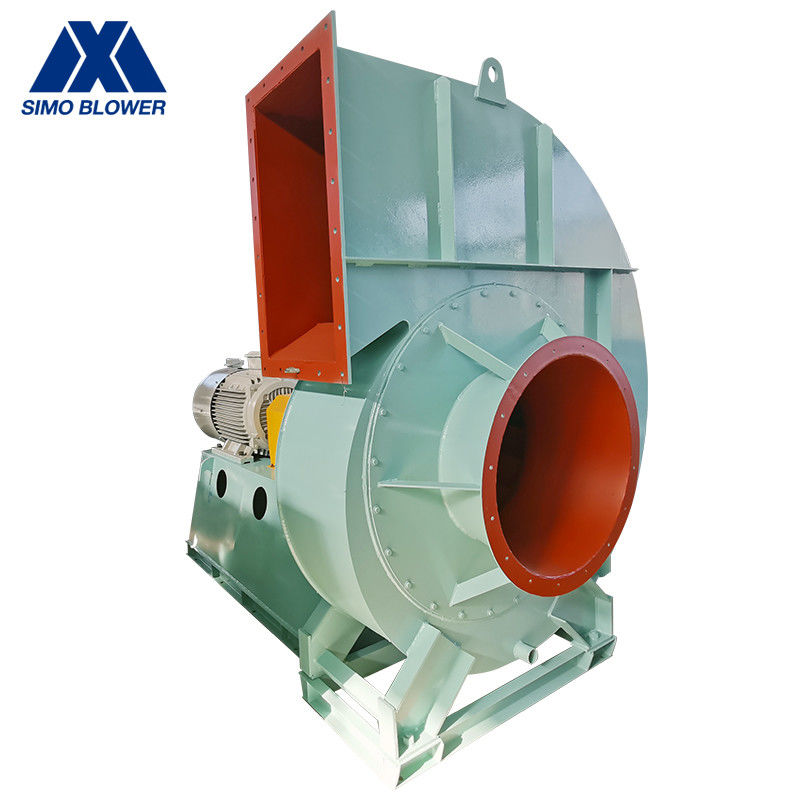

Stainless Steel Double Suction Antiwear Cement Fan Air Purification
Introduction
The 5-12 series centrifugal fan is an enhanced version of the 5-11 series medium pressure centrifugal fan.
Fans have many uses in the chemical industry, such as the transportation of chemical raw materials, reaction gases, aeration stirring, sewage treatment, ventilation and exhaust, dust removal and so on. Also for the fertilizer industry phosphoric acid device, compound fertilizer device to provide transport dust content high corrosive high tail gas fan.
Detail introduction
Transmission group: Composed of spindle, coupling, bearing box, etc., the spindle is made of high quality carbon steel, bearing box and coupling are high quality cast iron. When ordering, specify the model, speed, flow rate, total pressure, outlet Angle, rotation direction and motor model and specification.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 5-12 | 4D | 2500～3550 | 742～2221 | 2065～5564 | 2.2～5.5 |
| 5D | 2240～3150 | 964～2819 | 3772～9851 | 4～11 | |
| 6.3D | 2000～2800 | 1221～3545 | 6737～17516 | 7.5～22 | |
| 8D | 1400～2000 | 1100～3323 | 9656～25619 | 11～30 | |
| 10D | 1250～1800 | 1419～4483 | 15451～44634 | 22～75 | |
| 12.5D | 1000～1400 | 2145～4234 | 24143～67803 | 37～110 |
Product Features
It has fine air volume and pressure classification, wide coverage and large choice for users. It has the characteristics of good corrosion resistance and wear resistance, low noise, stable operation and so on. It is an ideal general anti-corrosion fan.
FAQ
1,What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2,How about your company’s pre-sales service and after-sales service?
A: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3,Does your company have qualifications?
A: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
