| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 5-12 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Feature: | High Performance | Motor: | SIEMENS/ABB/By Your Demand |
|---|---|---|---|
| Lubrication: | Oil Bath Lubrication | Bearing Type: | Rolling Bearing |
| Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung | Noise: | Optional |
| High Light: | CFB Boiler Cement Fan,Carbon Steel SWSI Cement Fan,Cement Exhaust Centrifugal Fan |
||

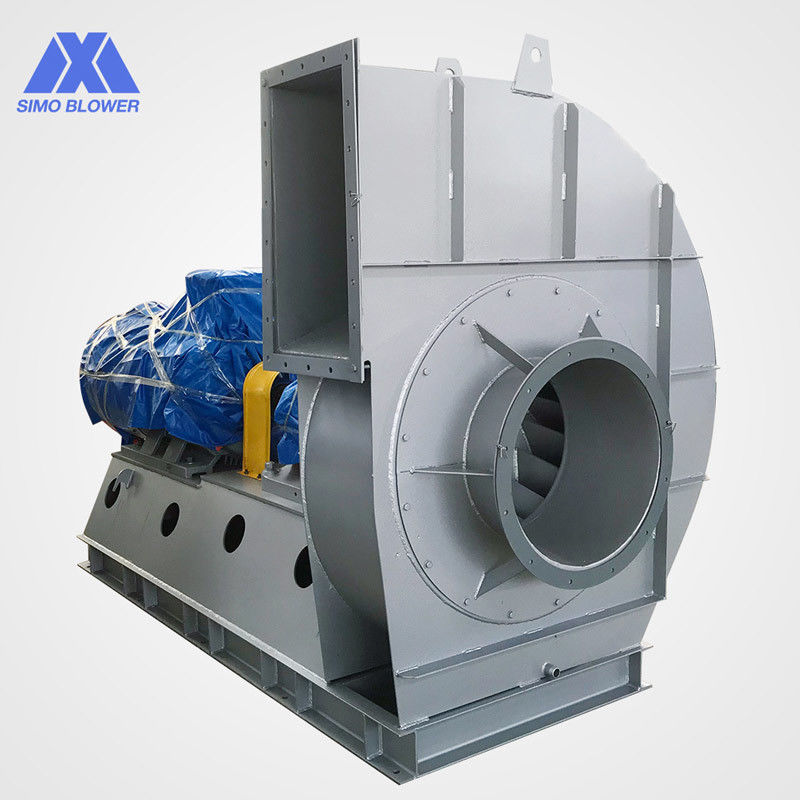

Carbon Steel Single Inlet Energy Efficiency Cement Fan CFB Boiler
Introduction
The 5-12 series centrifugal fan is an enhanced version of the 5-11 series medium pressure centrifugal fan.
The outlet position of the fan is expressed by the outlet Angle of the enclosure: the forward and reverse angles can be made into 0°, 45°, 90°, 135°, 180° and 225°
Detail introduction
1. impeller: are forward curved blade, static, dynamic balance, so stable and reliable operation.
2. housing: with titanium steel welded into a pot shell, the overall surface treatment.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 5-12 | 4D | 2500～3550 | 742～2221 | 2065～5564 | 2.2～5.5 |
| 5D | 2240～3150 | 964～2819 | 3772～9851 | 4～11 | |
| 6.3D | 2000～2800 | 1221～3545 | 6737～17516 | 7.5～22 | |
| 8D | 1400～2000 | 1100～3323 | 9656～25619 | 11～30 | |
| 10D | 1250～1800 | 1419～4483 | 15451～44634 | 22～75 | |
| 12.5D | 1000～1400 | 2145～4234 | 24143～67803 | 37～110 |
Product Features
1. Each number of the fan can be made into two types: forward or reverse (facing from one end of the motor)
2. Transmission group: Composed of spindle, coupling, bearing box, etc., the spindle is made of high quality carbon steel, bearing box and coupling are high quality cast iron. When ordering, specify the model, speed, flow rate, total pressure, outlet Angle, rotation direction and motor model and specification.
FAQ
1,What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2,How about your company’s pre-sales service and after-sales service?
A: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3,Does your company have qualifications?
A: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
