| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 6-08 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | Industrial Ventilation | Drivetrain: | Coupling Driven |
|---|---|---|---|
| Lubrication: | Oil Bath Lubrication | After-sales Service Provided: | Field Installation, Commissioning And Training |
| Bearing Cooling: | Air Cooling Or Circulating Water Cooling | Power Source: | Three Phase AC Motor |
| High Light: | 16Mn Power Plant Fan,TUV Heat Dissipation Power Plant Fan,11000m3/h Power Plant Blower |
||

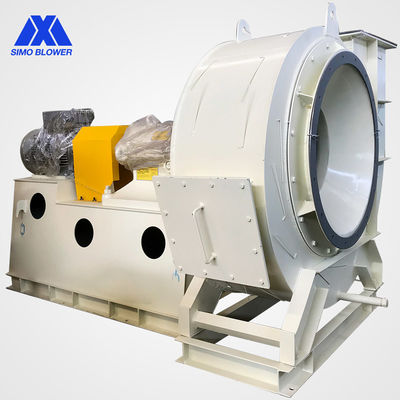

16Mn Heavy Duty Heat Dissipation Power Plant Fan Large Capacity
Introduction
Medium requirements for 6-08 series fans: The medium to be transported should be non-corrosive, non-flammable, explosive, and free of viscous substances. The dust and hard particles contained in the medium should be no more than 150mg/m3.
Stainless steel centrifugal fan can transport corrosive gases containing acid and alkali components and chemical components. According to customer needs customized 304, 316 stainless steel materials manufactured, standardized mold production. It has corrosion resistance and high strength. Large air volume and high energy efficiency. Easy to install durable and other advantages.
Detail introduction
Stainless steel centrifugal fan blade wheel shaft plate all made of 304 stainless steel, stainless steel rivets fixed, the shaft plate is equipped with disassembly device. Easy to disassemble and repair.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 6-08 | 8D | 1450 | 1859～2745 | 11000～26400 | 15 ~ 22 |
| 9D | 1450 | 2353～3474 | 15700～37500 | 30 ~ 45 | |
| 10D | 1450 | 2905～4289 | 21500～51500 | 45 ~ 75 | |
| 11D | 960 ~ 1450 | 1541～5190 | 22700～68500 | 22 ~ 110 | |
| 12D | 960 ~ 1450 | 1834～6176 | 24600～89000 | 37 ~ 160 | |
| 13D | 960 ~ 1450 | 2152～7248 | 31200～113000 | 55 ~ 250 | |
| 14D | 960 ~ 1450 | 2496～8406 | 39000～141000 | 75 ~ 400 | |
| 15D | 730 ~ 1450 | 1657～9650 | 36600～172000 | 45 ~ 500 | |
| 16D | 730 ~ 1450 | 1885～10980 | 44300～211000 | 75 ~ 710 | |
| 17D | 730 ~ 960 | 2128～5433 | 53200～168000 | 90 ~ 280 | |
| 18D | 730 ~ 960 | 2386～6091 | 63100～199000 | 110 ~ 355 | |
| 19D | 730 ~ 960 | 2658～6787 | 74200～234000 | 160 ~ 500 | |
| 20D | 730 ~ 960 | 2946～7520 | 86700～273000 | 200 ~ 630 | |
| 21D | 580 ~ 960 | 2050～8290 | 79500～316000 | 200 ~ 800 | |
| 22D | 580 ~ 960 | 2250～9099 | 92200～363000 | 220 ~ 1000 | |
| 23.5D | 580 ~ 960 | 2567～10380 | 112000～443000 | 220 ~ 1400 | |
| 25D | 580 ~ 730 | 6794～6464 | 134000～406000 | 355 ~ 800 | |
| 26.5D | 480 ~ 730 | 2236～7633 | 132000～483000 | 220 ~ 1120 | |
| 28D | 480 ~ 730 | 2496～8522 | 156000～569000 | 315 ~ 1400 | |
| 29.5D | 480 ~ 730 | 2771 ~ 9460 | 183000～667000 | 400 ~ 2000 |
Product Features
This series of fan is widely used in chemical industry, electroplating, oxidation, power plant, laboratory, circuit board, environmental protection equipment and other places containing corrosive gases, metallurgy, carbon black, ceramics and other industries are also widely used.
FAQ
1,What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2,How about your company’s pre-sales service and after-sales service?
A: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3,Does your company have qualifications?
A: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
