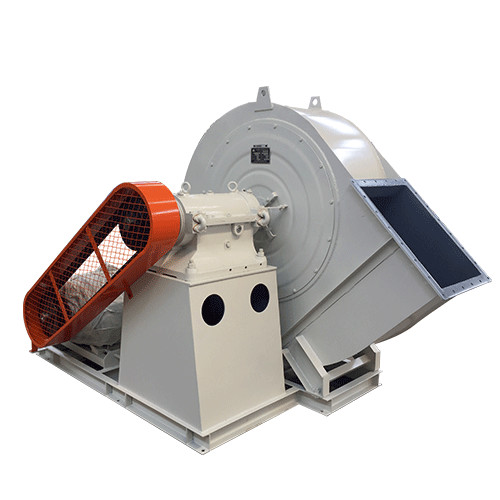

Wear Resistanting Fd Fan And Id Fan In Boiler Coupling Driving

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 5-12
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Type: Centrifugal Fan Feature: High Efficiency
After-sales Service Provided: Field Installation, Commissioning And Training Drivetrain: Direct/Coupling Driven/V-belt Driven
Noise: Optional Bearing Type: Rolling Bearing
Keywords: Steel Mill Fan Warranty: 1 Year
High Light:

Wear Resistanting fd fan blower

,

Wear Resistanting Id Fan In Boiler

,

Id Fan In Boiler Coupling Driving

fd fan and id fan in boiler

Introduction Of fd fan and id fan in boiler

Industrial boilers are one of the most widely used areas for SIMO BLOWER products. SIMO BLOWER can provide a full set of blower products for industrial boiler users, which can meet the application performance needs of 1-450T coal-fired boiler, biomass fuel boiler, waste incineration boiler and other industrial boiler systems.

SIMO BLOWER for users to buy industrial boiler fan: coal-fired boiler fan, biomass fuel boiler fan, waste incineration boiler fan, blower for industrial boiler, induced draft fan, primary fan, secondary fan, and flue gas dust blower, flue gas desulfurization fan, flue gas denitrification fan and so on.

Technical data

serice model Air Capacity(m³/h) Total Pressure(Pa) High Efficiency(10%) Rotation Speed(r/min)
【4-10】 No8D~29.5D 15900~812000 1190~8050 87.1 730~1450
No20F~31.5F 121000~1550000 2140~9100 85.5 730~960
【5-10】 No8D~29.5D 13740~647000 1540~10500 87 730~1450
No20F~35.5F 108000~1460000 2450~12500 83.1 730~960
【5-12】 No8D~30D 10000~533445 1000~15000 85 730~1450
No20F~35F 100000~1024655 1000~15000 83 730~960
【6-18】 No8D~30D 8730~621000 780~10790 86 730~1450
No20F~35.5F 103720~1480000 2805~13600 83.2 730~960
【7-05】 No8D~28D 6550~401000 1120~12500 86.5 730~1450
No20F~33.5F 77820~1050000 4030~13400 83 730~960

Programme measures

1. High temperature measures: the use of high temperature alloy, reasonable cooling measures, scientific high temperature deformation prevention structure
2. Wear-resistant measures: high hardness composite material, ensure the use of impeller, prolong the life
3. Anti-corrosion measures: a variety of anti-corrosion measures to adapt to different corrosion conditions
4. Efficient products: simulation analysis and optimization of the efficient model, strict processing process

Wear Resistanting Fd Fan And Id Fan In Boiler Coupling Driving 0

Advantage of cima

1. Strong technical research and development strength, advanced, scientific and accurate design;
2. The manufacturing process is rigorous and accurate, and the process equipment is perfect and advanced;
3. Scientific and standard performance test center to verify model parameters;
4. Rich experience in field testing;
5. Professional team, no worries after sale.

FAQ

1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.

company introduction



Wear Resistanting Fd Fan And Id Fan In Boiler Coupling Driving 1

Wear Resistanting Fd Fan And Id Fan In Boiler Coupling Driving 2

Xinxiang SIMO Blower Co., Ltd., formerly known as Xinxiang Blower Factory, was established in 1955, which is the designated factory for fan production by the former Ministry of Machinery Industry. In 2006, the state-owned enterprise was restructed. In August 2008, the company was registered as Xinxiang SIMO Blower Limited Company, with a registered capital of RMB32,000,000. In June 2016, the company was renamed as Xinxiang SIMO Blower Co., Ltd. In May 2018, the national SME share transfer system was listed. It is one of the larger fan manufacturers in central China and a member unit of China Fan Association. SIMO Blower is a state-level high-tech enterprise, safety production standardization of level3 enterprise, a provincial level1 advanced management enterprise, and has won more than 20 provincial and municipal honorary titles such as "contract-honoring & trustworthy enterprise", "advanced quality management unit", and "customer satisfied enterprises". The company has passed the national level industrialization and information integration management system assessment, ISO9001 quality management system certification, ISO14001 environmental management system certification, OHSAS45001 occupational health and safety management system certification and CE certification.
