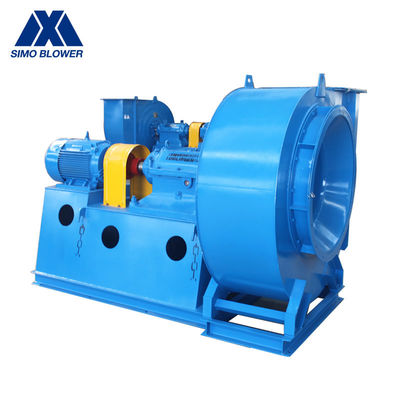

Dust Extraction Draft Centrifugal Exhaust Fan High Volume Blue

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-14
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Type: Centrifugal Fan Blade: Backward
Voltage: 380V/415V/440V/660V/6KV/10KV Bearing Type: Rolling Bearing
Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung Impeller: Dynamic Balanced
High Light:

id fan in thermal power plant

,

forced draft fan in thermal power plant

,

Dust Extraction Draft Centrifugal Exhaust Fan

Dust Extraction Draft High Volume Power Plant Centrifugal Exhaust Fan



Introduction



The Dust Extraction Draft High Volume Power Plant Centrifugal Exhaust Fan is suitable for indoor ventilation in general factories and large buildings.

Dust Extraction Draft High Volume Power Plant Centrifugal Exhaust Fan can be used to input gas as well as to output gas.

The gas delivered by the 4-14 series fan should be no more than 80 °C air and other gases that are not self-igniting and are not harmful to the human body and are not corrosive to steel materials. No viscous substances are allowed in the gas, and the dust and hard particles contained in the gas are not more than 150 mg/m3.

Dust Extraction Draft High Volume Power Plant Centrifugal Exhaust Fan has large flow and low noise, more use in building ventilation, ventilation and drying of materials, air purification and industrial waste gas treatment, industrial dust collectors, air purification and discharge in hazardous working environments(Paper production line, electrolytic aluminum production line, textile factory...). Blasting of boilers and brick kilns, transport of various gases, transport of granules/powders/debris/fiber materials, etc.



Technical data



PRODUCT PARAMETERS
Power Plant Fan
Application
Temperature Normal temperature air, Hot air
Air composition Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials
Power Plant Fan
Performance
Impeller diameter

800-1600

mm
Speed of mainshaft

580~1450

rpm
Pressure range

588~6678

Pa
Flow range

16011~161499

m3/h
Power Plant Fan
Structure
Blade Backward
Impeller support SWSI (Single Width, Single Inlet), Impeller overhung.
Drivetrain Coupling Can assign
Lubrication Oil bath lubrication
Bearing cooling Air cooling, Water cooling, Oil cooling
Power Plant Fan
System
configuration
Motor ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand…



Can assign

Impeller Q235, Q345, SS304, SS316, HG785, DB685...

Casing, Air inlet cone,

Air inlet damper

Q235, Q345, SS304, SS316, HG785, DB685...
Main shaft 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel...
Bearing FAG, SKF, NSK, ZWZ…
Power Plant Fan
Optional
components
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc.


Advantages and Features



1. When the pressure requirement is met, a large gas flow can be output, and the noise is very low.

2. The motor selects the high-efficiency energy-saving motor of China's leading motor manufacturing enterprise (can also install the brand motor required by users), the quality is reliable, and the energy consumption is lower.

3. The V-belt drive makes your fan to operate at the optimum speed. Installation is simple and does not require the support of professional technicians.

4. The airflow channel and the impeller are optimized several times, which is more efficient and energy-saving than ordinary large-flow fans.

5. Made of high quality carbon steel, Stainless steel or other metal materials can also be used according to user requirements.

6. The impeller is annealed to completely eliminate structural stresses generated during welding, ensuring that the impeller does not undergo creep and cracking.

7. After the production is completed, all products are tested for running and vibration values for reliable operation.

8. Installation is simple and does not require the support of professional technicians.



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.



Dust Extraction Draft Centrifugal Exhaust Fan High Volume Blue 0

Dust Extraction Draft Centrifugal Exhaust Fan High Volume Blue 1

Power Plant Fan
