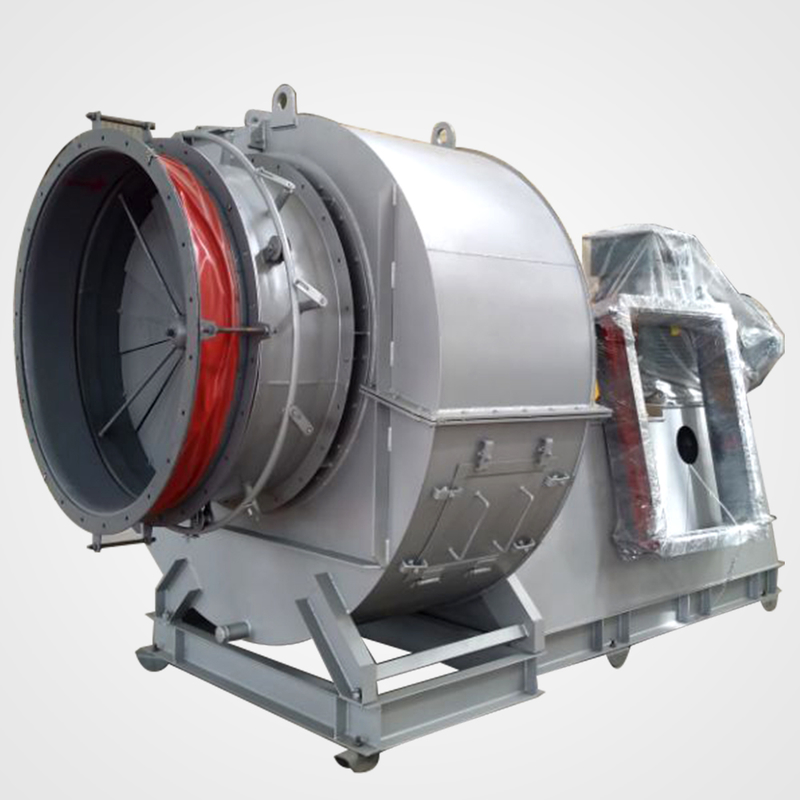

2x36t/H High Efficiency Centrifugal Fan for Thermal Power Plants

Name: 2x36t/H High Efficiency Centrifugal Fan for Thermal Power Plants
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: SIMO Blower 4-10
Price: 2,500.00 USD
Availability: InStock

Product Details:

Place of Origin:	Henan China
Brand Name:	SIMO
Certification:	CE, ISO9001:2008,TUV
Model Number:	SIMO Blower 4-10

Detail Information

Place of Origin:

Henan China

Brand Name:

SIMO

Certification:

CE, ISO9001:2008,TUV

Model Number:

SIMO Blower 4-10

Type:

Centrifugal Fan

Feature:

High Efficiency

After-sales Service Provided:

Field Installation, Commissioning And Training

Drivetrain:

Direct/Coupling Driven/V-belt Driven

Noise:

Optional

Bearing Type:

Rolling Bearing

Keywords:

4-10 Centrifugal FAN

Warranty:

1 Year

Highlight:

High Light

Highlight:

high efficiency centrifugal fan

thermal power plant fan

36t/H centrifugal fan

Trading Information

Minimum Order Quantity:

1 Set

Price:

Negotiable

Packaging Details:

Export Wooden Case Packing, Steel pallet Packing

Delivery Time:

15-35 Days

Payment Terms:

T/T, L/C, Payment Term Is Negotiable

Supply Ability:

500 Sets Per Month

Product Description

2×36t/H Thermal Power Generation Centrifugal Fan/Blower

Product Attributes

Attribute	Value
Type	Centrifugal Fan
Feature	High Efficiency
After-sales Service Provided	Field installation, commissioning and training
Drivetrain	Direct/Coupling Driven/V-belt Driven
Noise	Optional
Bearing Type	Rolling bearing
Keywords	4-10 centrifugal FAN
Warranty	1 Year

Product Description

The 2×36t/H Thermal Power Generation Centrifugal Fan/Blower is engineered for coal/gas-fired boiler systems as high-efficiency air handling equipment. Features heavy-duty construction with heat-resistant alloy impellers for reliable high-temperature flue gas handling. Dual-unit parallel configuration provides system redundancy, with power range of 45-315kW and pressure up to 15kPa, ideal for forced draft and flue gas recirculation in cogeneration systems.

Typical applications include:

Building ventilation
Mine ventilation
Smoke evacuation
Drying
Clinker cooling
Transport of gas
Transport of lightweight materials
Blasting and drafting of industrial boiler systems
Supply of air to kiln systems/incinerator systems
Induced air, air purification equipment
Industrial dust collector systems

Technical Specifications

The following datas are only part of performance of our product.

If you can't find the datas you need, please send us your performance requirements and we will provide you customized design service.

Series no.	4-10 series	Feature selection
Performance	Impeller diameter	800-2950mm
	Rotation speed	580-1450r/min
	Pressure range	553-7218Pa
	Flow range	15229-810000m³/h
Structure	Blade type	Backward, Straight, Aerofoil type
	Impeller support	SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type
	Lubrication method	Oil bath lubrication, grease lubrication, lubrication oil station (Can be specified)
Cooling method	Air cooling, Water cooling, Oil cooling (Can be specified)
Driven mode	Direct driven, Coupling driven, Belt driven (Can be specified)
Gas composition	Gas temperature	Normal \| Customer request \| Customer request \| ≥250 \| Customer request
Gas composition	Gas characteristic	Clean gas \| Corrosive gas \| Particulate dust \| High temperature gas \| Flammable gas, explosive gas
System configuration	Motor brand	Chinese famous brand, ABB, Siemens, WEG etc (Can be specified)
Option parts	System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.

Production Process

We are strict with every step about the industrial centrifugal fan and axial fan.

FAQ

1. How many years your company has experience in centrifugal fan machines?

Xinxiang SIMO BLOWER Co.,Ltd was founded in 1955. We have more than 70 years experience on centrifugal fan. We are manufacturer. Our product has been delivered to more than 40 countries and cities.

2. How about your company's pre-sales service and after-sales service?

Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition. To make sure the centrifugal fan efficiency operation. And also welcome to visit SIMO BLOWER to see the products production process and quality monitoring system. After sales service, we will offer 12 months' repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

All of our product are produced by our company will pass ISO 9001-2008 and CE.
