| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 9-03 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | Industrial Ventilation | Lubrication: | Oil Bath Lubrication |
|---|---|---|---|
| Power Source: | Three Phase AC Motor | Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung |
| Electric Current Type: | AC | Motor Type: | Three Phase AC Motor |
| High Light: | Q235 Backward Curved Boiler Fan,High Pressure Boiler Fan,Q235 Calcining Kilns |
||

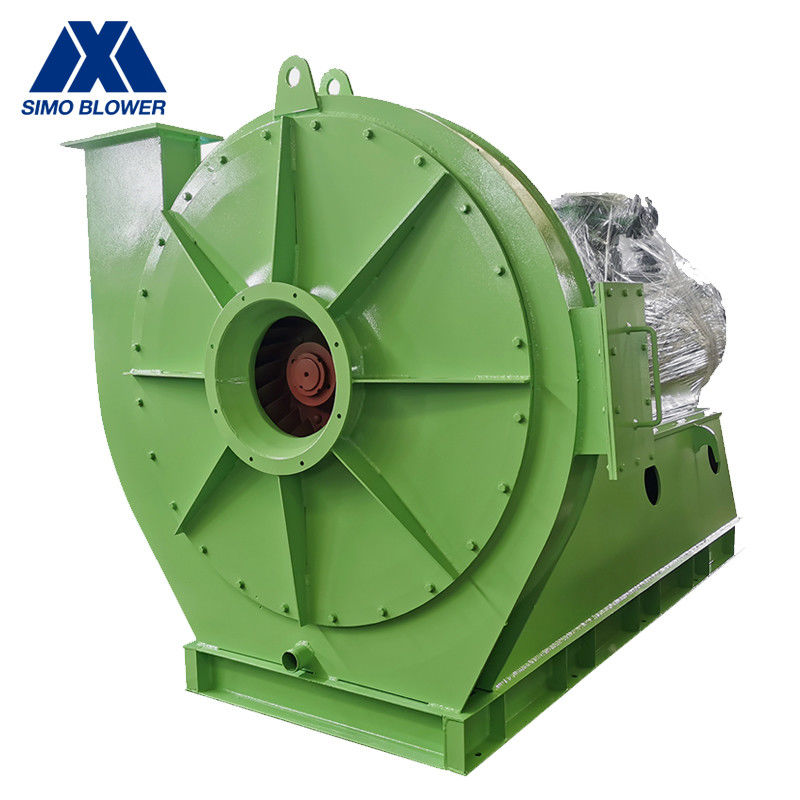

Q235 High Pressure Backward Curved Boiler Fan Calcining Kilns
Introduction
This series of fan is suitable for conveying non-corrosive, non-spontaneous combustion, temperature does not exceed 700℃ high temperature gas, dust and hard particles contained in the medium is not more than 150mg/m3.
Detail introduction
There are 12 forward bending blades on the impeller. After the impeller is formed, the dynamic and static balance and overspeed test are carried out to ensure the smooth, safe and reliable operation.
The casing is made of low alloy steel plate.
The overall structure of the air inlet collecting type streamline is connected to the front cover plate with bolts.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 9-03 | 8D | 2950 | 16680～17631 | 3019～8117 | 37～55 |
| 9D | 2950 | 21348～22314 | 4326～11632 | 75～110 |
Product Features
The transmission group is composed of a spindle, a water-cooled bearing box, a coupling, etc. The spindle is made of high-quality alloy steel, and the bearing box is an integral water-cooled structure.
FAQ
1,What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2,How about your company’s pre-sales service and after-sales service?
A: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3,Does your company have qualifications?
A: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
