| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 6-04 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | Industrial Ventilation | Delivery Time: | 30 Days |
|---|---|---|---|
| Impeller: | Dynamic Balanced | Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung |
| Electric Current Type: | AC | Impeller Test: | Ultrasonic Flaw Detection |
| High Light: | Explosion Protection Boiler Fan,Medium Pressure Boiler Fan,Backward Curved Boiler Id Fan |
||

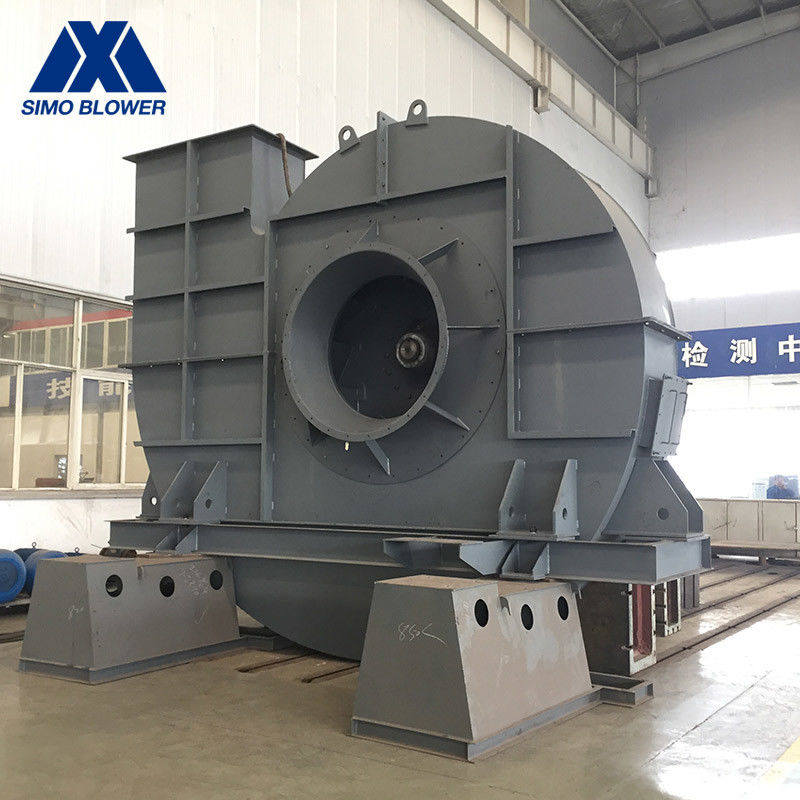

Backward Curved Medium Pressure Explosion Protection Boiler Fan
Introduction
This series fans not only provide high efficiency and energy saving equipment for cement industry, but also the better equipment for other industrial furnaces.
The product has advanced design, compact structure, easy to remove the maintenance, safe and reliable operation, wear resistance, high temperature resistant, high efficiency, low noise, smooth performance curve, wider range of flow control, high efficient area is broad, etc., can be in large dust content, and serious wear under the conditions of use, especially for cement, metallurgical and other similar to other industries.
Detail introduction
This series fans can be divided into single suction cantilever type (D, C type transmission), single suction double support type (F type transmission). Single cantilever outlet Angle can be divided into 0°, 45°. 9O °. 135°, 180°225°.270° and other 7 directions.
Access port and drain hole can be set outside the fan according to customers' needs to facilitate impeller inspection and cleaning and avoid impeller scaling. It is generally not stated that it is not equipped.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 6-04 | 14D | 1450 | 5435～7086 | 22889～41542 | 90～110 |
| 15D | 1450 | 6240～8134 | 28153～51095 | 110～160 | |
| 16D | 1450 | 7099～9255 | 34167～62011 | 160～220 | |
| 17D | 1450 | 8014～10448 | 40892～74379 | 220～280 | |
| 18D | 1450 | 8986～11713 | 48648～88292 | 280～400 | |
| 19D | 1450 | 10012～13051 | 57215～103840 | 400～500 | |
| 20D | 1450 | 11093～14461 | 66733～121114 | 450～630 |
Product Features
The series fans can be divided into two types: cis and inverse. When the impeller is seen from one side of the motor end, it is called cis when the impeller is rotating clockwise; otherwise, it is called inverse.
FAQ
1,What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2,How about your company’s pre-sales service and after-sales service?
A: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3,Does your company have qualifications?
A: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
