| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 5-12 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Material: | Carbon Steel/Alloy Steel/Stainless Steel | Main Shaft: | High-strength Carbon Structural Steel |
|---|---|---|---|
| Current Type: | AC | Electric Current Type: | AC |
| Voltage: | 380V/415V/440V/660V/6KV/10KV | Noise: | Optional |
| High Light: | Coal Injection Boiler Fan,Long Life Boiler Fan,Carbon Steel Large Centrifugal Blower |
||

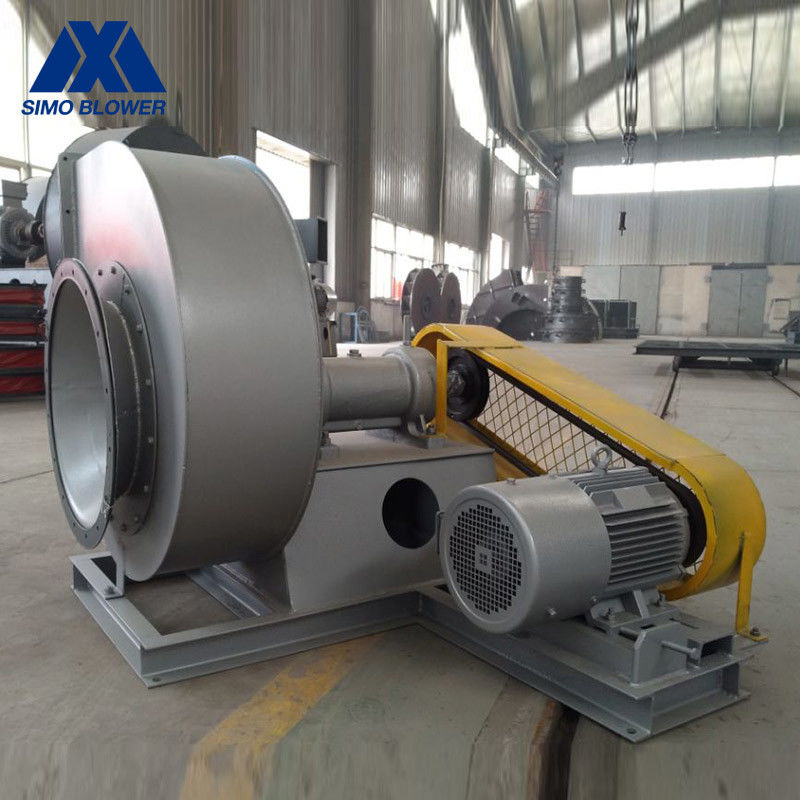

Large Capacity Long Life Coal Injection Boiler Fan Energy Efficiency
Introduction
5-12 series high temperature fan is suitable for conveying high temperature gas without corrosion, spontaneous combustion and temperature not exceeding 70O℃. If the dust content of the gas is large, dust removal device with dust removal efficiency not less than 85% should be equipped before the air inlet of the fan to improve the service life of the fan. Where the intake conditions are comparable, the performance can be selected.
Detail introduction
This series of fans is made of single suction.
This series of fans can be made into left rotation and right rotation two types, from one end of the motor facing, such as the impeller rotating clockwise to the right rotation fan, represented by "right"; The fan rotating counterclockwise is the left rotating fan, denoted by "left".
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 5-12 | 4C | 2500～3550 | 742～2221 | 2065～5564 | 2.2～5.5 |
| 5C | 2240～3150 | 964～2819 | 3772～9851 | 4～11 | |
| 6.3C | 2000～2800 | 1221～3545 | 6737～17516 | 7.5～22 | |
| 8C | 1400～2000 | 1100～3323 | 9656～25619 | 11～30 | |
| 10C | 1250～1800 | 1419～4483 | 15451～44634 | 22～75 | |
| 12.5C | 1000～1400 | 2145～4234 | 24143～67803 | 37～110 |
Product Features
The adjusting door adopts external transmission structure, which can be adjusted manually. The well can also be adjusted by angular displacement electric actuator according to the needs of users.
The outlet position of the fan is represented as "left" by the outlet Angle of the housing, and "right" can be made into five angles: 0°, 45° 90°, 135°180°.
FAQ
1,What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2,How about your company’s pre-sales service and after-sales service?
A: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3,Does your company have qualifications?
A: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
