Place of Origin: | Henan China |
---|---|
Brand Name: | SIMO |
Certification: | CE, ISO9001:2008,TUV |
Model Number: | SIMO Blower 5-12 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiable |
Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
Delivery Time: | 15-35 Days |
Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
Supply Ability: | 500 Sets Per Month |
Mounting: | Free Standing | Current Type: | AC |
---|---|---|---|
Drivetrain: | Coupling Driven | Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung |
Bearing Type: | Rolling Bearing | Delivery Time: | 30 Days |
High Light: | Aluminium Alloyed Industrial Cement Fan,Abrasion Resistant Cement Fan,Cement Centrifugal Air Blower |

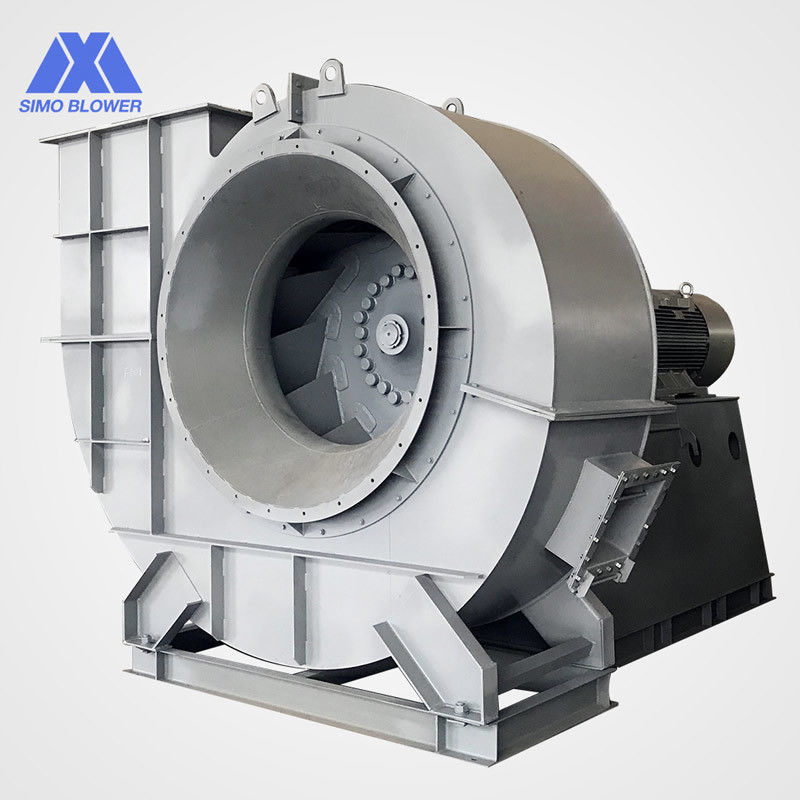

Aluminium Alloyed Industrial Cement Fan Abrasion Resistant Medium Pressure
Introduction
The 5-12 series centrifugal fan is an enhanced version of the 5-11 series medium pressure centrifugal fan.
Such as conveying high temperature/harmful/dangerous gas, hard particles, powder, debris, fiber, forced ventilation, industrial dust collectors, air filtration systems, flue gas desulfurization, flue gas denitration, industrial boiler forced draft and induced draft fan, the material conveying of the various back kiln & calcining kiln, the induced draft of the smelting furnace and the casting furnace, combustion of blast furnace, coal injection of blast furnace, pressurized transportation of gas, etc.
Detail introduction
A device for regulating the flow of the fan, axially mounted in front of the air inlet. The adjustment range is from 0° (full open) to 90°(fully closed).The converging and streamlined air inlet is made into a unitary structure and bolted to the inlet side of the fan.
By ultrasonic flaw detection for the impeller welding line and main shaft, ensure that there are no weld defects and material defects to ensure strength.
Technical data
series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
---|---|---|---|---|---|
5-12 | 4D | 2500~3550 | 742~2221 | 2065~5564 | 2.2~5.5 |
5D | 2240~3150 | 964~2819 | 3772~9851 | 4~11 | |
6.3D | 2000~2800 | 1221~3545 | 6737~17516 | 7.5~22 | |
8D | 1400~2000 | 1100~3323 | 9656~25619 | 11~30 | |
10D | 1250~1800 | 1419~4483 | 15451~44634 | 22~75 | |
12.5D | 1000~1400 | 2145~4234 | 24143~67803 | 37~110 |
Product Features
1. This series of fans can also be used for dust removal, mine ventilation and general ventilation systems. The medium transported by the forced draft fan is air, and the medium transported by the induced draft fan is flue gas or a gas containing impurity particles.
2. Ultrasonic flaw detection on the welding seam and main spindle of the impeller to ensure that there are no welding defects or material defects and ensure the strength.
FAQ
1,What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2,How about your company’s pre-sales service and after-sales service?
A: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3,Does your company have qualifications?
A: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
