| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 4-14 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Mounting: | Free Standing | Material: | Carbon Steel/Alloy Steel/Stainless Steel |
|---|---|---|---|
| Drivetrain: | Direct/Coupling Driven/V-belt Driven | After-sales Service Provided: | Field Installation, Commissioning And Training |
| Main Shaft: | High-strength Carbon Structural Steel | Noise: | Optional |
| High Light: | Q235 Single Inlet Cement Fan,Backward Single Inlet Cement Fan,TUV Backward Air Exhaust Fan |
||

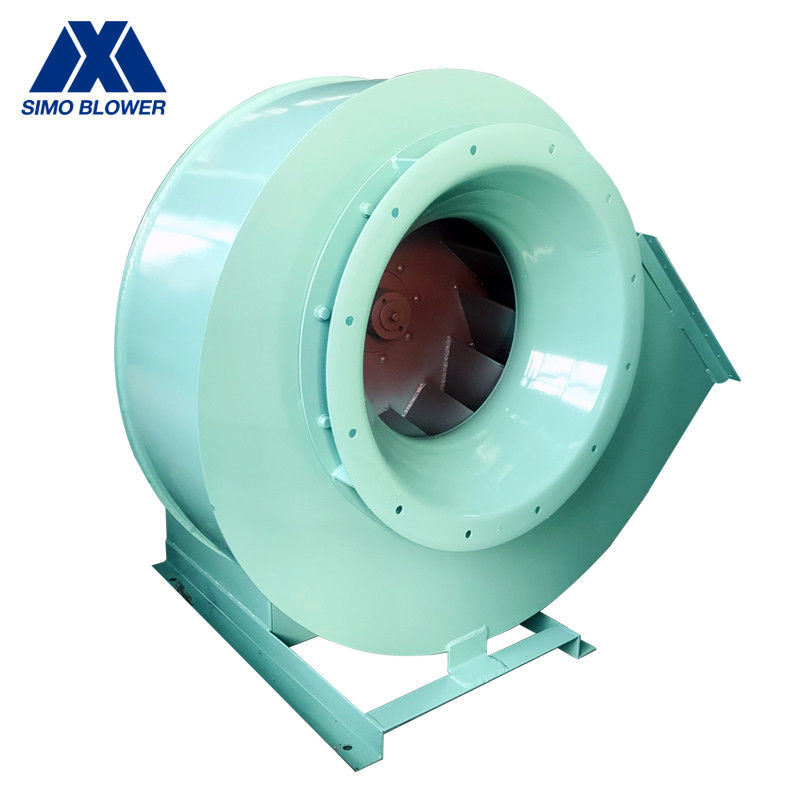

Q235 Single Inlet Cement Fan High Volume Backward Energy Saving
Introduction
The gas delivered by the 4-14 series fan should be no more than 80 °C air and other gases that are not self-igniting and are not harmful to the human body and are not corrosive to steel materials. No viscous substances are allowed in the gas, and the dust and hard particles contained in the gas are not more than 150 mg/m3.
Detail introduction
It can also be made into explosion-proof and flame-retardant type according to the requirements of use. It is suitable for occasions with flammable, explosive and corrosive gases.
When the pressure requirement is met, a large gas flow can be output, and the noise is very low.
After the production is completed, all products are tested for running and vibration values for reliable operation.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 4-14 | 2.8A | 1450 ~ 2900 | 166 ~ 970 | 565 ～2262 | 0.55 ~ 1.1 |
| 3.15A | 1450 ~ 2900 | 215 ~ 1245 | 912 ～3435 | 0.55 ~ 1.5 | |
| 3.55A | 1450 ~ 2900 | 274 ~ 608 | 1354～5013 | 0.55 ~ 3 | |
| 4A | 1450 ~ 2900 | 353 ~ 2069 | 1992～7281 | 0.75 ~ 4 | |
| 4.5A | 1450 ~ 2900 | 460 ~ 2657 | 2895～40585 | 1.1 ~ 7.5 | |
| 5A | 1450 ~ 2900 | 578 ~ 3314 | 4025～14490 | 2.2 ~ 15 |
Product Features
1. Made of high quality carbon steel, Stainless steel or other metal materials can also be used according to user requirements.
2. The airflow channel and the impeller are optimized several times, which is more efficient and energy-saving than ordinary large-flow fans.
3. Installation is simple and does not require the support of professional technicians.
FAQ
1,What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2,How about your company’s pre-sales service and after-sales service?
A: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3,Does your company have qualifications?
A: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
