| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 5-12 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | Industrial Ventilation | Mounting: | Free Standing |
|---|---|---|---|
| Main Shaft: | High-strength Carbon Structural Steel | Blade: | Forward / Backward/Backward Curved |
| Electric Current Type: | AC | Delivery Time: | 30 Days |
| High Light: | Anticorrosion Gas Delivery Cement Fan,Low Pressure Anticorrosion Cement Fan,Free Standing Raw Mill Fan |
||

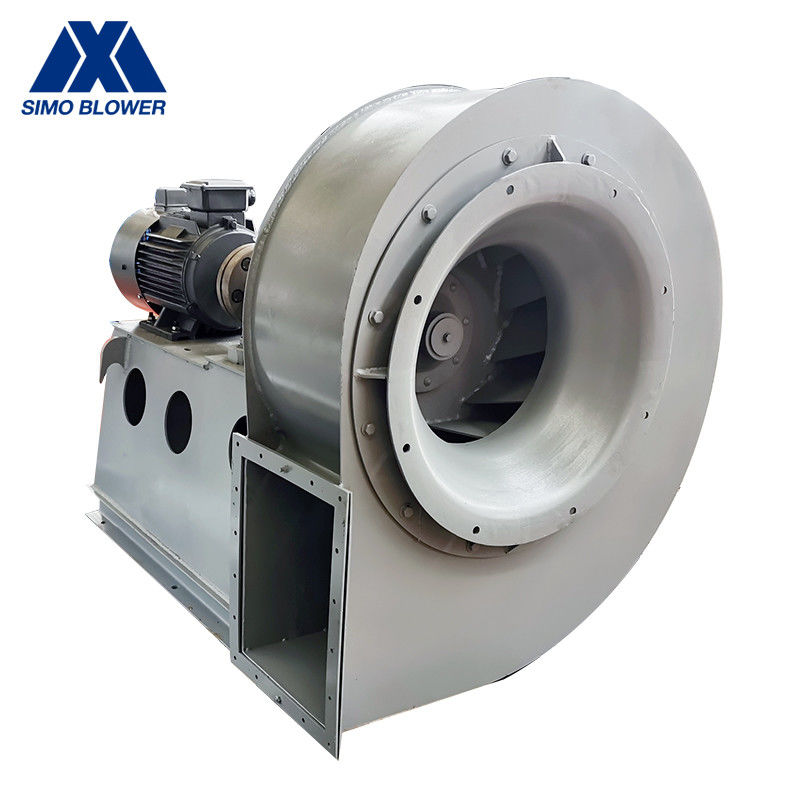

Low Pressure Large Capacity Anticorrosion Gas Delivery Cement Fan
Introduction Of Centrifugal Fan
The 5-12 series raw mill fan in cement plant is an enhanced version of the 5-11 series medium pressure centrifugal fan.
It has a larger output flow than the 5-11 series. It is also used to transport a variety of common gases and hard materials in the industrial field, the application object is exactly the same as 5-11 series fan.
When the pressure requirement is met, a large gas flow can be output, and the noise is very low.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 5-12 | 4D | 2500～3550 | 742～2221 | 2065～5564 | 2.2～5.5 |
| 5D | 2240～3150 | 964～2819 | 3772～9851 | 4～11 | |
| 6.3D | 2000～2800 | 1221～3545 | 6737～17516 | 7.5～22 | |
| 8D | 1400～2000 | 1100～3323 | 9656～25619 | 11～30 | |
| 10D | 1250～1800 | 1419～4483 | 15451～44634 | 22～75 | |
| 12.5D | 1000～1400 | 2145～4234 | 24143～67803 | 37～110 |
Application
1. Install centrifugal fans in mines and tunnels to re-enter fresh air and exhaust dirty air to ensure air circulation in the mines and tunnels.Centrifugal fans can help dust discharge, ensure air transparency in mines and tunnels, and ensure the health of workers in mines and tunnels.
2. A centrifugal fan is installed in the cooling tower, which not only plays the role of ventilation and ensures the normal operation of the cooling tower, but also plays a positive role in improving the cooling effect of the cooling tower by the large flow wind generated by the centrifugal fan.
3. Main ventilator in coal mine is an important equipment to ensure normal ventilation in underground mine, which not only affects the production capacity of coal mine, but also is very important to the safety of mining industry.
Product Advantages
1. The motor selects the high-efficiency energy-saving motor of China's leading motor manufacturing enterprise (can also install the brand motor required by users), the quality is reliable, and the energy consumption is lower.
2. The fan speed can be flexibly set by matching different diameters of belt pulley to make the fan run at the highest efficiency point and reduce energy waste.
3. In the case of a monolithic bracket, the installation is very simple and requires little support from a professional technician.
FAQ
1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
