16mn Low Pressure Forward Corrosive Gas Delivery Boiler Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-10
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Material: Carbon Steel/Alloy Steel/Stainless Steel Bearing Cooling: Air Cooling Or Circulating Water Cooling
Motor Type: Three Phase AC Motor Electric Current Type: AC
Main Shaft: High-strength Carbon Structural Steel Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung
High Light:

16mn boiler fan

,

corrosive gas delivery boiler fan

,

low pressure forward boiler fan

16Mn Low Pressure Forward Corrosive Gas Delivery Boiler Fan

Introduction


G4-10 and Y4-10 series ventilation and induced draft fans are suitable for the ventilation and induced draft fan systems of 2~670T/h steam boilers in thermal power plants.

In addition to the industrial system, it is also frequently used in agriculture and civil applications and the most versatile range of centrifugal fans.


Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
4-10 8D 1450 2104~1400 16156~30993 18.55
9D 960 ~ 1450 775 ~ 2668 15229 ~ 44128 11 ~ 37
10D 730 ~ 1450 553 ~ 3301 15886 ~ 60533 7.5 ~ 55
11D 730 ~ 1450 669 ~ 4003 21144 ~ 80570 11 ~ 90
12D 730 ~ 1450 797 ~ 4777 25661 ~ 104600 15 ~ 132
14D 730 ~ 1450 1086 ~ 6541 43591 ~166100 37 ~ 315
16D 580 ~ 960 895 ~ 3709 51699 ~ 164150 45 ~ 185
18D 580 ~ 960 1133 ~ 4710 73610 ~ 233730 75 ~ 280
20D 580 ~ 960 1400 ~ 5837 100970 ~ 320610 110 ~ 520
22D 480 ~ 960 1216 ~ 6865 116000 ~ 434000 140 ~ 850
25D 480 ~ 730 1579 ~ 5138 171000 ~ 484000 165 ~ 700
28D 375 ~ 730 1205 ~ 6400 187000 ~ 680000 320 ~ 1250
29.5D 596 ~ 745 3236 ~ 7218 348000 ~ 810000 800 ~ 1600


Product Features



1. The airflow channel and the impeller are optimized several times, which is more efficient and energy-saving than ordinary large-flow fans.

2. Made of high quality carbon steel, Stainless steel or other metal materials can also be used according to user requirements.

3. The impeller is annealed to completely eliminate structural stresses generated during welding, ensuring that the impeller does not undergo creep and cracking.



FAQ

1.Q: What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow rate(m3/h), Total pressure(Pa) or Static pressure(Pa), Inlet temperature(°C), Voltage and frequency on the working site.



2. Q:What is your delivery time?
A:15-35workdays, depending on the model of the fan.



3.Q:Are you manufacturer or trading company?
A:We are the professional manufacturer of centrifugal fans , over 65 years production experience and sales experience.



4.Q:What's your MOQ?
A:The MOQ is 1set,but larger quantity, lower price.



5.Q: What’s your warranty?
A: 12 months after arrival of the goods on site.



6.Q:How do you control the product's quality?
A:All the products have quality testing and dynamic balance before delivery.

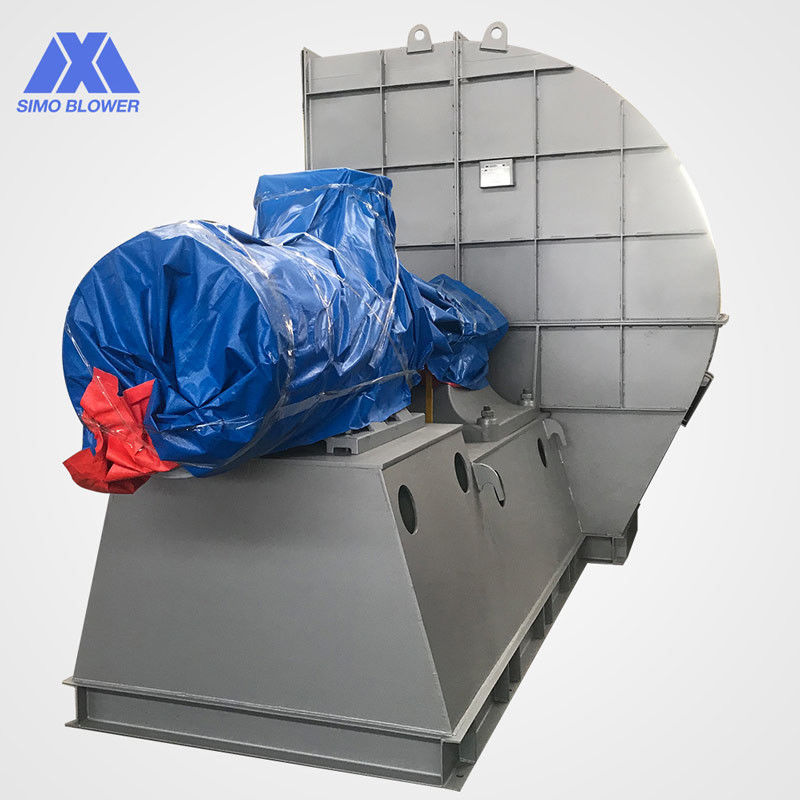

16mn Low Pressure Forward Corrosive Gas Delivery Boiler Fan 0

16mn Low Pressure Forward Corrosive Gas Delivery Boiler Fan 1

16mn Low Pressure Forward Corrosive Gas Delivery Boiler Fan 2
