High Volume High Temperature Metallurgy Dust Collector Fan Energy Saving

High Volume High Temperature Metallurgy Dust Collector Fan Energy Saving

Product Details:
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-10
Detail Information
Place of Origin:
Henan China
Brand Name:
SIMO
Certification:
CE, ISO9001:2008,TUV
Model Number:
SIMO Blower 9-10
Application:
Industrial Ventilation
Bearing:
SKF/FAG/By Your Demand
Warranty:
1 Year
System Type:
Single Inlet, Overhang Type
Impeller:
Dynamic Balanced
Color:
Customer's Requirement
High Light:

High Light

High Light:

Metallurgy Dust Collector Fan

,

Dynamic Balanced Dust Collector Fan

,

Overhang Dust Control Fan

Trading Information
Minimum Order Quantity:
1 Set
Price:
300-5000 USD
Packaging Details:
Export Wooden Case Packing, Steel pallet Packing
Delivery Time:
15-35 Days
Payment Terms:
T/T, L/C, Payment Term Is Negotiable
Supply Ability:
500 Sets Per Month
Product Description

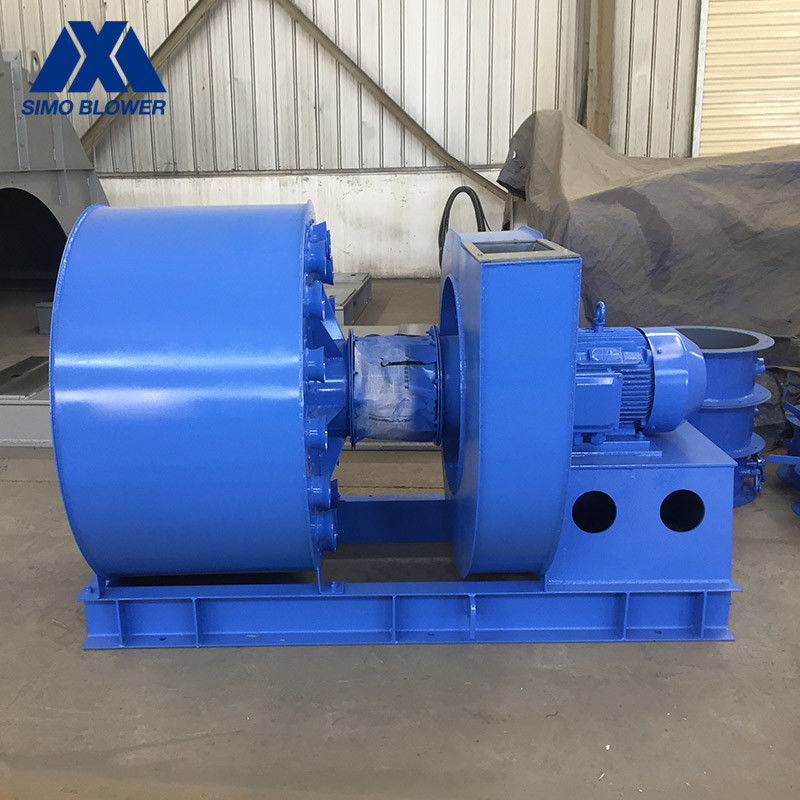

High Volume High Temperature Energy Saving Metallurgy Dust Collector Fan



Introduction



The 9-10.28 series dust extractor fan is generally used for forging furnace and high pressure forced ventilation and widely used for material transportation.

The dust collector exhaust fan is made of high quality carbon steel, and can also use stainless steel or other metal materials according to customer requirements.

When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
9-10 4A 2900 32533597 8241704 2.23
4.5A 2900 41124603 11742504 45.5
5A 2900 50805697 16103488 7.511
5.6A 2900 64007182 22624901 1115
6.3A 2900 81489149 32206978 18.530
7.1A 2900 1042611717 46109988 3755


Application

Dust Collector Blower Centrifugal fan is widely used in the cement industry, building materials industry, environmental protection industry, metallurgical industry, power industry projects such as large-scale dust collector, industrial boilers, ventilation systems, cooling.



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
