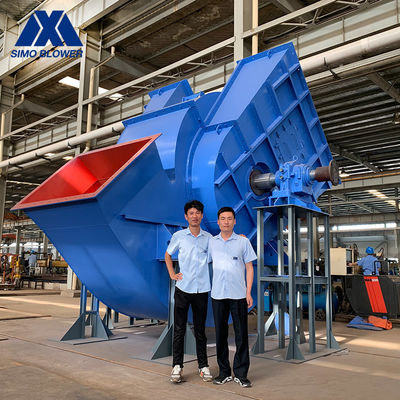

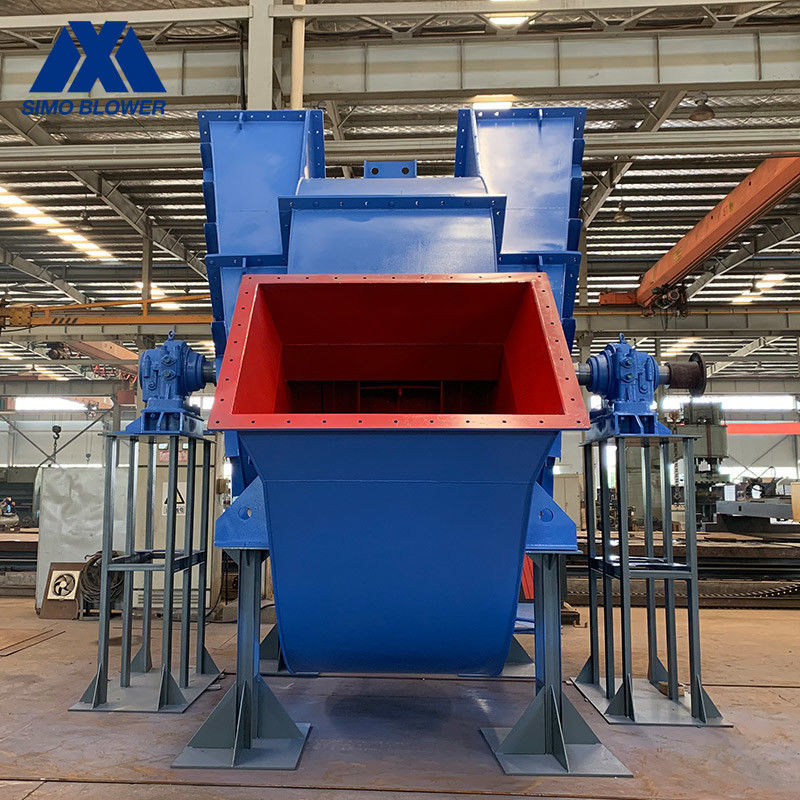

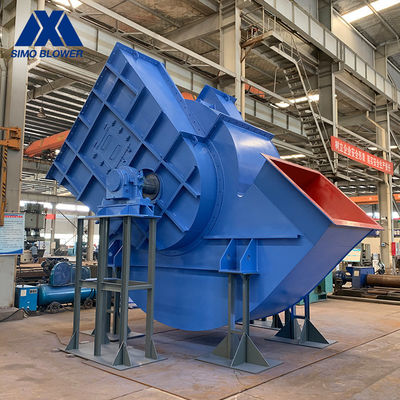

Aluminium Alloyed Energy Saving Radial Blower Dust Collector Fan
Detail introduction
1.The fan pressure is high, therefore it is especially suitable for 1-20t/h industrial boilers, which equipped with spiral pipes and multi-tube dust collector.
2.The fan has high efficiency, high total pressure, low noise, flat performance curve, wide economical use area, and adopts backward plate type blades. The efficiency of the fan at the best working point is 86.5%, and the noise index( than A sound Level) is Ls=11.5dB.
Product features
1. It can output high out gas pressure and can work at higher medium temperature, suitable for any industrial occasion where high pressure & high temperature gas needs to be delivered.
2. Made of high quality carbon steel, Stainless steel or other metal materials can also be used according to user requirements.
3.The impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.
Technical data
series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
---|---|---|---|---|---|
7-05 | 8F | 1450 | 1638~2303 | 9890~23100 | 15~18.5 |
9F | 1450 | 2074~3165 | 14100~32900 | 22~30 | |
10F | 1450 | 2560~3908 | 19300~45100 | 45~55 | |
11F | 960~1450 | 1358~4728 | 17000~60000 | 22~90 | |
12F | 960~1450 | 1617~6383 | 33400~77900 | 30~132 | |
13F | 960~1450 | 1896~6604 | 28100~99100 | 45~200 | |
14F | 960~1450 | 2198~7659 | 35100~124000 | 75~280 | |
15F | 730~1450 | 1460~8792 | 32800~152000 | 45~400 | |
16F | 730~1450 | 1660~10005 | 39800~185000 | 75~550 | |
17F | 730~960 | 1875~4950 | 47800~147000 | 75~220 | |
18F | 730~960 | 2102~5550 | 74600~174000 | 110~280 | |
19F | 730~960 | 2342~6184 | 66700~205000 | 132~400 | |
20F | 730~960 | 2595~6851 | 77800~239000 | 160~500 | |
21F | 580~960 | 1806~7554 | 90000~276000 | 132~630 | |
22F | 580~960 | 2785~8291 | 119000~167000 | 160~800 | |
23.5F | 580~960 | 2260~9460 | 18900~390000 | 200~1120 | |
25F | 580~960 | 2560~10707 | 121000~467000 | 250~1600 | |
26.5F | 480~730 | 1969~6956 | 144000~422000 | 220~900 | |
28F | 480~730 | 2198~7765 | 140000~500000 | 250~1250 | |
29.5F | 480~730 | 2836~8620 | 164000~583000 | 315~1600 | |
31.5F | 480~730 | 2783~9828 | 200000~709000 | 500~2000 |
Application
1. In the factory, the workshops, warehouses and other departments are equipped with centrifugal fans, which play a role in ventilation, ensure the fresh air in the workshop, and help to purify the working environment and the health of employees. At the same time, the factory warehouse is equipped with centrifugal fans to dry the air to ensure that the mechanical equipment or other industrial products maintain the original quality.
2. Install centrifugal fans in mines and tunnels to re-enter fresh air and exhaust dirty air to ensure air circulation in the mines and tunnels.Centrifugal fans can help dust discharge, ensure air transparency in mines and tunnels, and ensure the health of workers in mines and tunnels.
3. A centrifugal fan is installed in the cooling tower, which not only plays the role of ventilation and ensures the normal operation of the cooling tower, but also plays a positive role in improving the cooling effect of the cooling tower by the large flow wind generated by the centrifugal fan.
4. Main ventilator in coal mine is an important equipment to ensure normal ventilation in underground mine, which not only affects the production capacity of coal mine, but also is very important to the safety of mining industry.
5. Centrifugal fans are widely used in boilers and industrial furnaces. They mainly play the role of ventilation and air induction. On the one hand, they ensure the environment of the boiler room or industrial kiln. On the other hand, they allow the replacement of oxygen-enriched air, which makes the firepower of the boiler or kiln more fierce and saves coal to a certain extent. Wait for power resources to reduce enterprise production costs.
FAQ
1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
