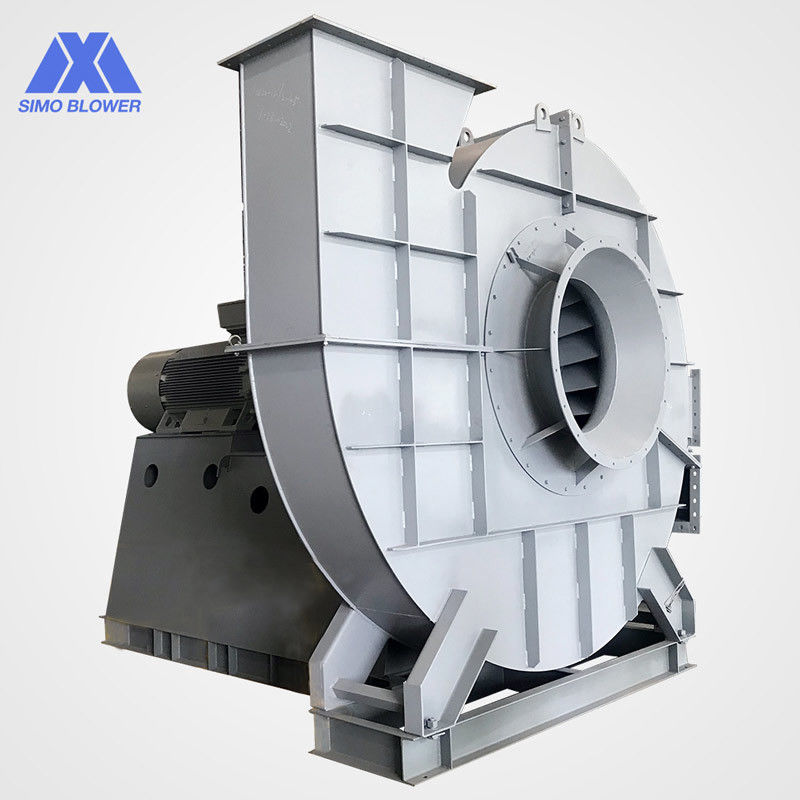

High Pressure Centrifugal Ventilation Fans Backward Boiler FD Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-08
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: General Ventilation Current Type: AC
Motor Type: Three Phase AC Motor Bearing: SKF/FAG/By Your Demand
Type: Centrifugal Fan Blade: Forward / Backward/Backward Curved
High Light:

High Pressure Centrifugal Ventilation Fans

,

Backward Centrifugal Ventilation Fans

,

Backward Boiler FD Fan

High Pressure Centrifugal Ventilation Fans Backward FD Boiler Fan



Introduction Of Centrifugal Fan



The 9-08 series high pressure fan is generally used for forging furnace and high pressure forced ventilation, and can be widely used to transport materials, transport air and non-corrosive, non-self-igniting, non-viscous substances gas.

The fan system running at normal temperature with an impeller diameter of less than 1400 mm does not require additional configuration of bearing cooling device, which reduces the user's investment and maintenance workload.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
9-08 7.1D 2900 1063512427 1229219360 75110
8D 14502900 324915955 879227696 18.5200
9D 1450 41814869 1251819717 3045
10D 1450 50656143 1717230052 5575
11.2D 9601450 30317747 1597342221 30132
12.5D 9601450 34509713 2220658695 45250
14D 9601450 434112285 3119782463 75400
16D 9601450 569616250 46569123090 185850



Product Advantages



1.The fan is made of high quality carbon steel, and can also use stainless steel or other metal materials according to customer requirements.

2.The fan can output higher gas pressure, and can provide more gas flow at the same time, low noise.

3.Running test and vibration value detection after the production is completed, the fan operation is reliable.



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.



High Pressure Centrifugal Ventilation Fans Backward Boiler FD Fan 0

High Pressure Centrifugal Ventilation Fans Backward Boiler FD Fan 1

High Pressure Centrifugal Ventilation Fans Backward Boiler FD Fan 2
