| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 9-10 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | General Ventilation | Voltage: | 380V/415V/440V/660V/6KV/10KV |
|---|---|---|---|
| Motor Type: | Three Phase AC Motor | Mounting: | Free Standing |
| After-sales Service Provided: | Field Installation, Commissioning And Training | Blade: | Forward / Backward/Backward Curved |
| High Light: | Stainless Steel Industrial Air Blower,High Pressure Industrial Air Blower,Stainless Steel Boiler Exhaust Fan |
||

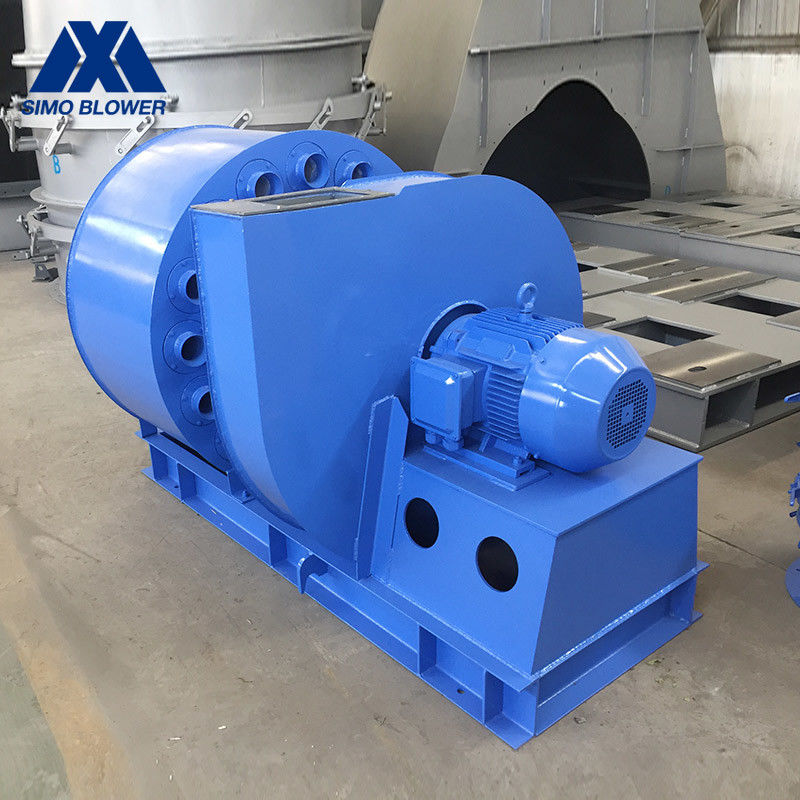

Stainless Steel Industrial Air Blower Price High Pressure Boiler Fan
Introduction Of Centrifugal Fan
The 9-11 series fan has a large flow rate and moderate pressure.
This fan is designed for the purpose of using industrial boiler to work in the high-efficiency area and achieve the energy-saving target.
The fan system running at normal temperature with an impeller diameter of less than 1400 mm does not require additional configuration of bearing cooling device, which reduces the user's investment and maintenance workload.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 9-10 | 4A | 2900 | 3253～3597 | 824～1704 | 2.2～3 |
| 4.5A | 2900 | 4112～4603 | 1174～2504 | 4～5.5 | |
| 5A | 2900 | 5080～5697 | 1610～3488 | 7.5～11 | |
| 5.6A | 2900 | 6400～7182 | 2262～4901 | 11～15 | |
| 6.3A | 2900 | 8148～9149 | 3220～6978 | 18.5～30 | |
| 7.1A | 2900 | 10426～11717 | 4610～9988 | 37～55 |
Product Advantages
1. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.
2.The fan is made of high quality carbon steel, and can also use stainless steel or other metal materials according to customer requirements.
3. Running test and vibration value detection after the production is completed, the fan operation is reliable.
FAQ
1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
