|Place of Origin:||Henan China|
|Model Number:||SIMO Blower 4-10|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Export Wooden Case Packing, Steel pallet Packing|
|Delivery Time:||15-35 Days|
|Payment Terms:||T/T, L/C, Payment Term Is Negotiable|
|Supply Ability:||500 Sets Per Month|
|Voltage:||380V/415V/440V/660V/6KV/10KV||Bearing Cooling:||Air Cooling Or Circulating Water Cooling|
|Lubrication:||Oil Bath Lubrication||Main Shaft:||High-strength Carbon Structural Steel|
|Impeller Support:||SWSI (Single Width, Single Inlet), Impeller Overhung||Type:||Centrifugal Fan|
Long Life Flue Gas Fan,
V-Belt Flue Gas Fan,
V-Belt Dust Collector Fans

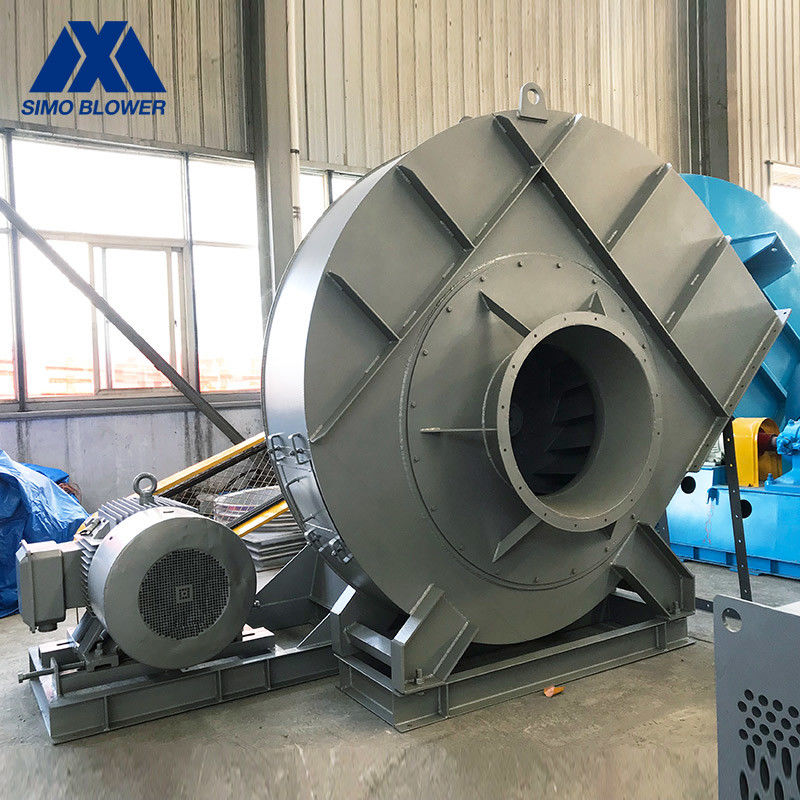

Long Life V-Belt Driving Dust Collector Fans For Sale Flue Gas Fan
Introduction Of Centrifugal Fan
G4-10 and Y4-10 series ventilation and induced draft fans are suitable for the ventilation and induced draft fan systems of 2~670T/h steam boilers in thermal power plants.
It can also be made into explosion-proof and flame-retardant type according to the requirements of use. It is suitable for occasions with flammable, explosive and corrosive gases.
No viscous substances are allowed in the gas, and the dust and hard particles contained in the gas are not more than 150 mg/m3. The gas temperature does not exceed 80°C, and similar gas properties are also available.
|9C||960 ~ 1450||775 ~ 2668||15229 ~ 44128||11 ~ 37|
|10C||730 ~ 1450||553 ~ 3301||15886 ~ 60533||7.5 ~ 55|
|11C||730 ~ 1450||669 ~ 4003||21144 ～ 80570||11 ~ 90|
|12C||730 ~ 1450||797 ~ 4777||25661 ~ 104600||15 ~ 132|
|14C||730 ~ 1450||1086 ~ 6541||43591 ～166100||37 ~ 315|
|16C||580 ~ 960||895 ~ 3709||51699 ~ 164150||45 ~ 185|
|18C||580 ~ 960||1133 ~ 4710||73610 ~ 233730||75 ~ 280|
|20C||580 ~ 960||1400 ~ 5837||100970 ～ 320610||110 ~ 520|
|22C||480 ~ 960||1216 ~ 6865||116000 ～ 434000||140 ~ 850|
|25C||480 ~ 730||1579 ~ 5138||171000 ～ 484000||165 ~ 700|
|28C||375 ~ 730||1205 ~ 6400||187000 ~ 680000||320 ~ 1250|
|29.5C||596 ~ 745||3236 ~ 7218||348000 ~ 810000||800 ~ 1600|
1. Made of high quality carbon steel, Stainless steel or other metal materials can also be used according to user requirements.
2. The impeller is annealed to completely eliminate the internal stress generated during welding, ensuring that the impeller does not undergo creep and cracks.
3. Installation is simple and does not require the support of professional technicians.
1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
