Place of Origin: | Henan China |
---|---|
Brand Name: | SIMO |
Certification: | CE, ISO9001:2008,TUV |
Model Number: | SIMO Blower 4-10 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiable |
Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
Delivery Time: | 15-35 Days |
Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
Supply Ability: | 500 Sets Per Month |
Voltage: | 380V/415V/440V/660V/6KV/10KV | Bearing Cooling: | Air Cooling Or Circulating Water Cooling |
---|---|---|---|
Category: | Blower | Main Shaft: | High-strength Carbon Structural Steel |
Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung | Warranty: | 1 Year |
High Light: | Backward Flue Gas Exhaust Fan,Q235 Flue Gas Exhaust Fan,Q235 Radial Fan Blower |

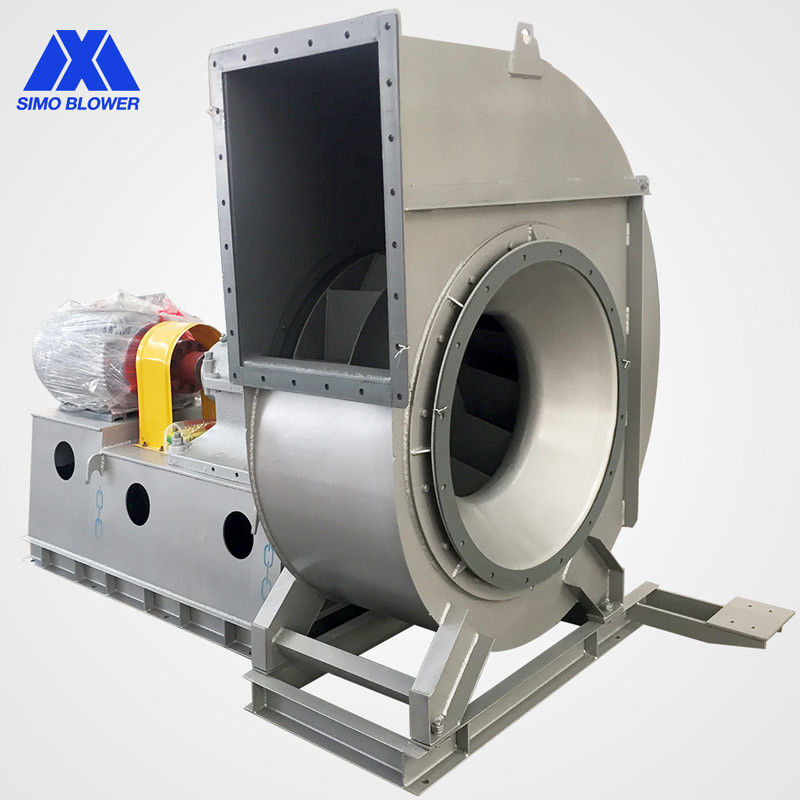

Q235 Energy Efficiency Backward Flue Gas Fan Radial Fan Blower
Introduction Of Centrifugal Fan
G4-10 and Y4-10 series ventilation and induced draft fans are suitable for the ventilation and induced draft fan systems of 2~670T/h steam boilers in thermal power plants.
They can transport clean gas, dusty gas, flammable gas, corrosive gas, powder or granular materials at normal temperature or high temperature.
The weld of the impeller and the main shaft are ultrasonic flaw detection to ensure that there are no welding defects and material defects to ensure strength.
Technical data
series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
---|---|---|---|---|---|
4-10 | 8D | 1450 | 2104~1400 | 16156~30993 | 18.55 |
9D | 960 ~ 1450 | 775 ~ 2668 | 15229 ~ 44128 | 11 ~ 37 | |
10D | 730 ~ 1450 | 553 ~ 3301 | 15886 ~ 60533 | 7.5 ~ 55 | |
11D | 730 ~ 1450 | 669 ~ 4003 | 21144 ~ 80570 | 11 ~ 90 | |
12D | 730 ~ 1450 | 797 ~ 4777 | 25661 ~ 104600 | 15 ~ 132 | |
14D | 730 ~ 1450 | 1086 ~ 6541 | 43591 ~166100 | 37 ~ 315 | |
16D | 580 ~ 960 | 895 ~ 3709 | 51699 ~ 164150 | 45 ~ 185 | |
18D | 580 ~ 960 | 1133 ~ 4710 | 73610 ~ 233730 | 75 ~ 280 | |
20D | 580 ~ 960 | 1400 ~ 5837 | 100970 ~ 320610 | 110 ~ 520 | |
22D | 480 ~ 960 | 1216 ~ 6865 | 116000 ~ 434000 | 140 ~ 850 | |
25D | 480 ~ 730 | 1579 ~ 5138 | 171000 ~ 484000 | 165 ~ 700 | |
28D | 375 ~ 730 | 1205 ~ 6400 | 187000 ~ 680000 | 320 ~ 1250 | |
29.5D | 596 ~ 745 | 3236 ~ 7218 | 348000 ~ 810000 | 800 ~ 1600 |
Product Advantages
1. The airflow channel and the impeller are optimized several times, which is more efficient and energy-saving than ordinary large-flow fans.
2. Made of high quality carbon steel, Stainless steel or other metal materials can also be used according to user requirements.
3. Installation is simple and does not require the support of professional technicians.
FAQ
1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
