HG785 Alloyed Steel Flue Gas Fan Single Inlet Boiler Id Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-09
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: General Ventilation Material: Carbon Steel/Alloy Steel/Stainless Steel
Category: Blower Main Shaft: High-strength Carbon Structural Steel
Noise: Low Warranty: 1 Year
High Light:

Alloyed Steel Flue Gas Fan

,

Single Inlet Flue Gas Fan

,

Single Inlet Boiler Id Fan

HG785 Alloyed Steel Single Inlet Boiler Id Fan Manufacturer Flue Gas Fan



Introduction Of Centrifugal Fan



The 4-09 series large-flow centrifugal fan is the earliest used fan in China, and it is also the most commonly used fan.

In addition to the industrial system, it is also frequently used in agriculture and civil applications and the most versatile range of centrifugal fans.

For the material of impeller and main shaft, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature resistant high-strength alloy steel under different working conditions temperature and working speed, so that the impeller and main shaft still maintains a reliable strength at high temperature.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
4-09 2.8A 2900 994~606 1131~2356 1.5
3.2A 1450 ~ 2900 198 ~1300 844 ~ 3517 1.1 ~ 2.2
3.6A 1450 ~ 2900 247 ~ 1578 1332 ~ 5268 1.1 ~ 3
4A 1450 ~ 2900 329 ~ 2014 2006 ~ 7419 1.1 ~ 5.5
4.5A 1450 ~ 2900 416 ~ 2554 2856 ~ 10562 1.1 ~ 7.5
5A 1450 ~ 2900 502 ~ 3187 3864 ~15456 2.2 ~ 15
6A 960 ~ 1450 317 ~ 1139 4420 ~ 13353 1.5 ~ 4



Product Advantages



1.It can also be used for mine ventilation and general ventilation without other special requirements; Mainly used to meet the needs of large air flow applications, low noise and high efficiency.

2.The fan blade placement angle is optimized, more wear-resistant and longer service life.

3.The impeller is annealed to eliminate the internal stress generated during welding, ensuring that the impeller does not undergo creep and cracks.



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.

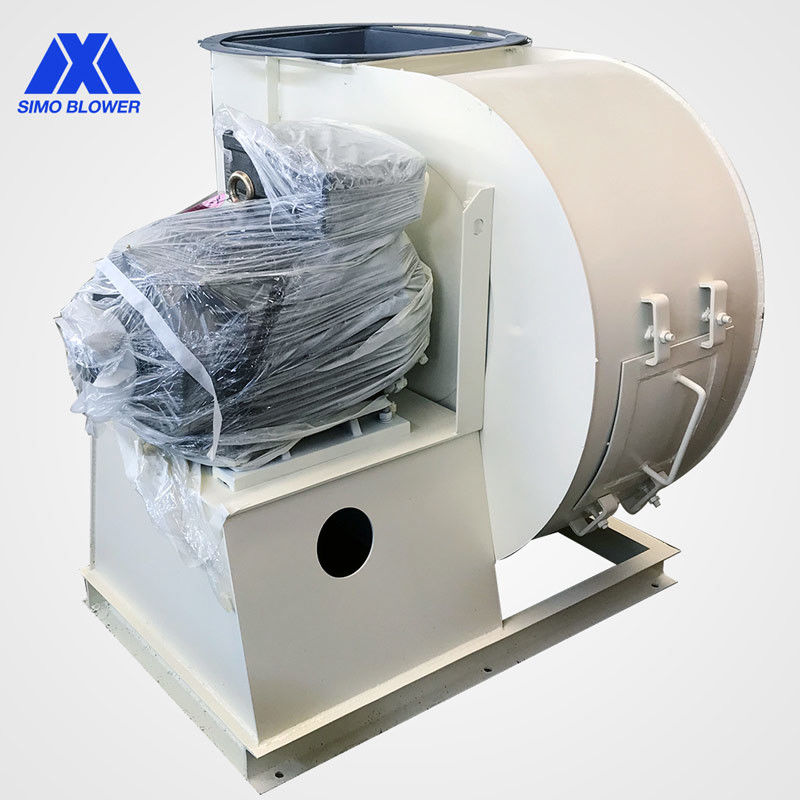

HG785 Alloyed Steel Flue Gas Fan Single Inlet Boiler Id Fan 0

HG785 Alloyed Steel Flue Gas Fan Single Inlet Boiler Id Fan 1HG785 Alloyed Steel Flue Gas Fan Single Inlet Boiler Id Fan 2
