Aluminium Alloy Flue Gas Blower Fan Double Suction Anti Explosion

Aluminium Alloy Flue Gas Blower Fan Double Suction Anti Explosion
Brand Name
SIMO
Product Model
SIMO Blower 9-08
Certificate
CE, ISO9001:2008,TUV
Country Of Origin
Henan China
MOQ
1 Set
Unit Price
Negotiable
Payment Method
T/T, L/C, Payment Term Is Negotiable
Supply Capacity
500 Sets Per Month
Product Details
Highlight:

Flue Gas Blower Fan

,

Aluminium Alloy Flue Gas Blower Fan

,

Double Suction Flue Gas Fan
Application: General Ventilation
Material: Carbon Steel/Alloy Steel/Stainless Steel
After-Sales Service Provided: Field Installation, Commissioning And Training
Motor Type: Three Phase AC Motor
Delivery Time: 30 Days
Warranty: 1 Year
Product Description
Detailed Specifications And Features

Double Suction Aluminium Alloyed Anti-Explosion Flue Gas Blower Fan



Introduction Of Centrifugal Fan



The 9-08 series high pressure fan is generally used for forging furnace and high pressure forced ventilation, and can be widely used to transport materials, transport air and non-corrosive, non-self-igniting, non-viscous substances gas.

The fan with explosion-proof motor, and its performance parameters are the same as those ordinary motors.

The motor shaft is elastically connected with the drive shaft. It is not necessary to tighten the belt or replace the belt frequently, and the maintenance workload is small.



Technical data



series model Rotation Speed
(r/min)		 Total Pressure
(Pa)		 Air Capacity
(m³/h)		 Power
(kW)
9-08 7.1D 2900 10635～12427 12292～19360 75～110
8D 1450～2900 3249～15955 8792～27696 18.5～200
9D 1450 4181～4869 12518～19717 30～45
10D 1450 5065～6143 17172～30052 55～75
11.2D 960～1450 3031～7747 15973～42221 30～132
12.5D 960～1450 3450～9713 22206～58695 45～250
14D 960～1450 4341～12285 31197～82463 75～400
16D 960～1450 5696～16250 46569～123090 185～850


Product Advantages



1. The fan system running at normal temperature with an impeller diameter of less than 1400 mm does not require additional configuration of bearing cooling device, which reduces the user's investment and maintenance workload.

2. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.

3.The fan is made of high quality carbon steel, and can also use stainless steel or other metal materials according to customer requirements.

4. Running test and vibration value detection after the production is completed, the fan operation is reliable.



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.

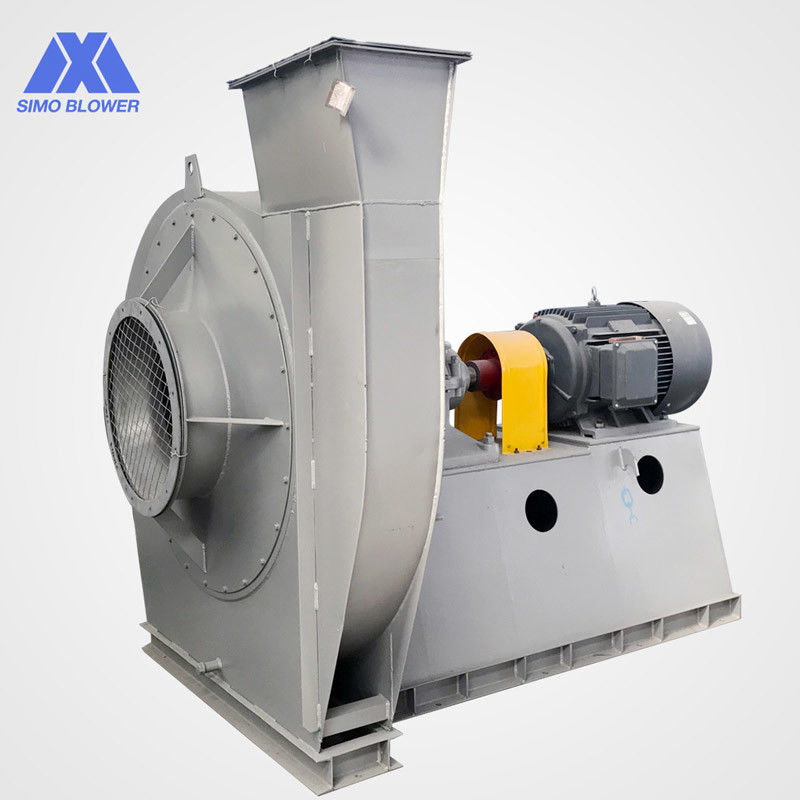

Aluminium Alloy Flue Gas Blower Fan Double Suction Anti Explosion 0

Aluminium Alloy Flue Gas Blower Fan Double Suction Anti Explosion 1

Aluminium Alloy Flue Gas Blower Fan Double Suction Anti Explosion 2
