Backward Curved Flue Gas Fan Heavy Duty Industrial For Sintering Machine

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-08
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: General Ventilation Material: Carbon Steel/Alloy Steel/Stainless Steel
After-sales Service Provided: Field Installation, Commissioning And Training Power Source: Three Phase AC Motor
Delivery Time: 30 Days Bearing Type: Rolling Bearing
High Light:

Sintering Machine Flue Gas Fan

,

Backward Curved Flue Gas Fan

,

TUV Heavy Duty Industrial Centrifugal Fan

Heavy Duty Industrial Backward Curved Sintering Machine Flue Gas Fan



Introduction Of Centrifugal Fan



The 9-10 series high pressure fan is generally used for forging furnace and high pressure forced ventilation and widely used for material transportation.

It is suitable for conveying air and non-corrosive, unnatural and non-viscous gases.

The fan is made of high quality carbon steel, and can also use stainless steel or other metal materials according to customer requirements.

When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
9-10 8D 14502900 323115034 329714287 7.5110
9D 1450 41014597 469510717 1522
10D 1450 49585840 644015455 3037
11.2D 9601450 27057364 599021713 1575
12.5D 9601450 39759229 832730186 22110
14D 9601450 424911668 1169942409 37220
16D 9601450 557515425 1746363305 75315



Product Advantages



1. The fan system running at normal temperature with an impeller diameter of less than 1400 mm does not require additional configuration of bearing cooling device, which reduces the user's investment and maintenance workload.

2. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.

3.The fan is made of high quality carbon steel, and can also use stainless steel or other metal materials according to customer requirements.

4. Running test and vibration value detection after the production is completed, the fan operation is reliable.



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.

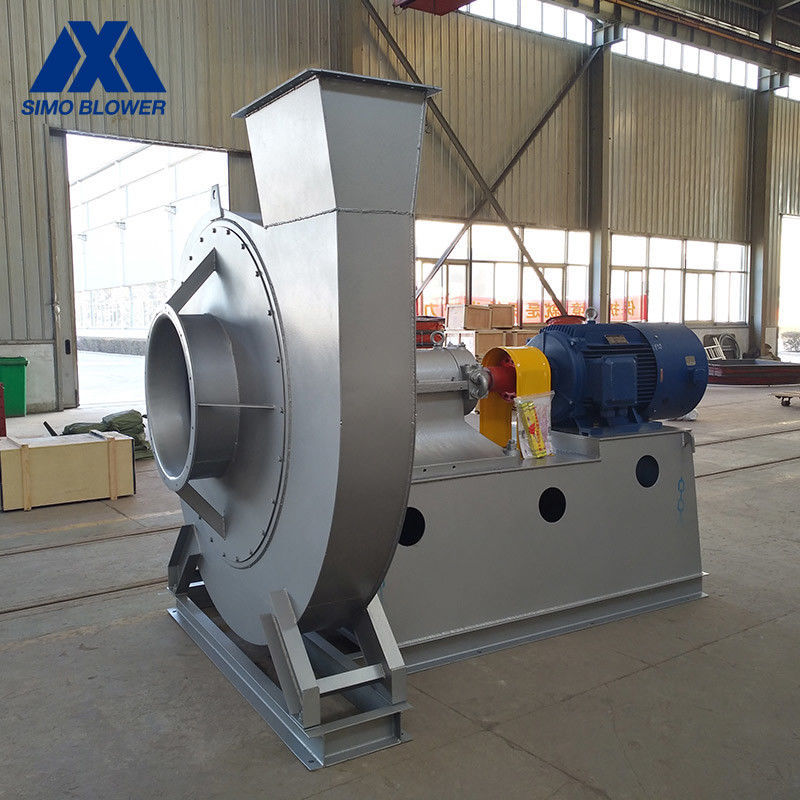

Backward Curved Flue Gas Fan Heavy Duty Industrial For Sintering Machine 0

Backward Curved Flue Gas Fan Heavy Duty Industrial For Sintering Machine 1

Backward Curved Flue Gas Fan Heavy Duty Industrial For Sintering Machine 2
