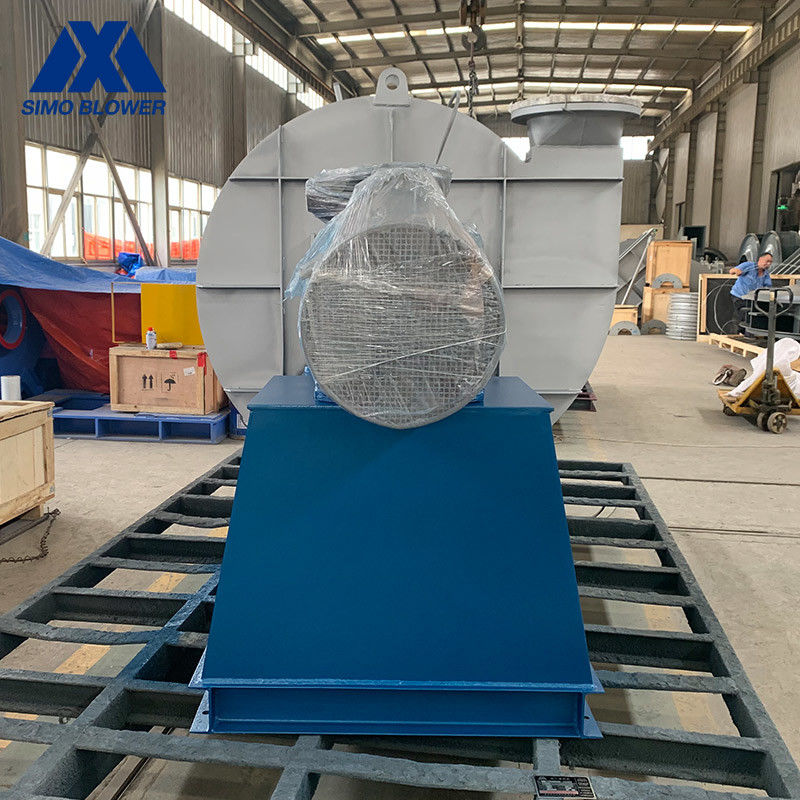

Alloy Steel Dust Collector Centrifugal Fan Long Lifetime Explosionproof

Alloy Steel Dust Collector Centrifugal Fan Long Lifetime Explosionproof

Product Details:
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-03
Detail Information
Place of Origin:
Henan China
Brand Name:
SIMO
Certification:
CE, ISO9001:2008,TUV
Model Number:
SIMO Blower 9-03
Impeller Support:
SWSI (Single Width, Single Inlet), Impeller Overhung
Main Shaft:
High-strength Carbon Structural Steel
Color:
Customer's Requirement
Motor Type:
Three Phase AC Motor
Noise:
Optional
Medium:
Clean Air/Dusty Air
High Light:

High Light

High Light:

Explosionproof Dust Collector Centrifugal Fan

,

Alloy Steel Dust Collector Centrifugal Fan

,

SWSI Dust Collector Fan

Trading Information
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Export Wooden Case Packing, Steel pallet Packing
Delivery Time:
15-35 Days
Payment Terms:
T/T, L/C, Payment Term Is Negotiable
Supply Ability:
500 Sets Per Month
Product Description

Alloy Steel Long Lifetime Explosionproof Dust Collector Centrifugal Fan



Detail introduction



The fan is suitable for equipped with economizer (heater) and smoke and dust removal device.

The fan can output higher gas pressure, and can provide more gas flow at the same time, low noise.

In the case of using the common base, the installation is very simple and basically does not require the support of professional technicians.

The motor shaft is elastically connected with the drive shaft. It is not necessary to tighten the belt or replace the belt frequently, and the maintenance workload is small.



Product features



1. The fan system running at normal temperature with an impeller diameter of less than 1400 mm does not require additional configuration of bearing cooling device, which reduces the user's investment and maintenance workload.

2. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.

3.The fan is made of high quality carbon steel, and can also use stainless steel or other metal materials according to customer requirements.

4. Running test and vibration value detection after the production is completed, the fan operation is reliable.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
9-03 4D 2900 22852452 32976594 5.57.5
4.5D 2900 28933060 46959389 1115
5D 2900 35703854 644012880 1522
5.6D 2900 44824805 904818095 3045
6.3D 1450 14221500 644112882 7.511
7.1D 1450 18041942 922018439 1118.5
8D 1450 22852462 1318926378 18.530
9D 1450 28933099 1877937558 3755
10D 1450 35703854 2576042933 5590
11.2D 9601450 19614835 2396172381 30160
12.5D 730960 14122638 2532966620 2290
14D 730960 17753305 3558693596 45160
16D 730960 23144295 53120139712 75280


Application



1. In the factory, the workshops, warehouses and other departments are equipped with centrifugal fans, which play a role in ventilation, ensure the fresh air in the workshop, and help to purify the working environment and the health of employees. At the same time, the factory warehouse is equipped with centrifugal fans to dry the air to ensure that the mechanical equipment or other industrial products maintain the original quality.

2. Install centrifugal fans in mines and tunnels to re-enter fresh air and exhaust dirty air to ensure air circulation in the mines and tunnels.Centrifugal fans can help dust discharge, ensure air transparency in mines and tunnels, and ensure the health of workers in mines and tunnels.

3. A centrifugal fan is installed in the cooling tower, which not only plays the role of ventilation and ensures the normal operation of the cooling tower, but also plays a positive role in improving the cooling effect of the cooling tower by the large flow wind generated by the centrifugal fan.

4. Main ventilator in coal mine is an important equipment to ensure normal ventilation in underground mine, which not only affects the production capacity of coal mine, but also is very important to the safety of mining industry.

5. Centrifugal fans are widely used in boilers and industrial furnaces. They mainly play the role of ventilation and air induction. On the one hand, they ensure the environment of the boiler room or industrial kiln. On the other hand, they allow the replacement of oxygen-enriched air, which makes the firepower of the boiler or kiln more fierce and saves coal to a certain extent. Wait for power resources to reduce enterprise production costs.



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
