Place of Origin: | Henan China |
---|---|
Brand Name: | SIMO |
Certification: | CE, ISO9001:2008,TUV |
Model Number: | SIMO Blower 6-08 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiable |
Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
Delivery Time: | 15-35 Days |
Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
Supply Ability: | 500 Sets Per Month |
Voltage: | 380V/415V/440V/660V/6KV/10KV | Electric Current Type: | AC |
---|---|---|---|
Motor Type: | Three Phase AC Motor | Motor: | SIEMENS/ABB/By Your Demand |
System Type: | Single Inlet, Overhang Type | Power Source: | Three Phase AC Motor |
High Light: | Antiwear Cement Centrifugal Blower Fan,Carbon Steel Cement Centrifugal Blower Fan,Medium Pressure Cement Fan |

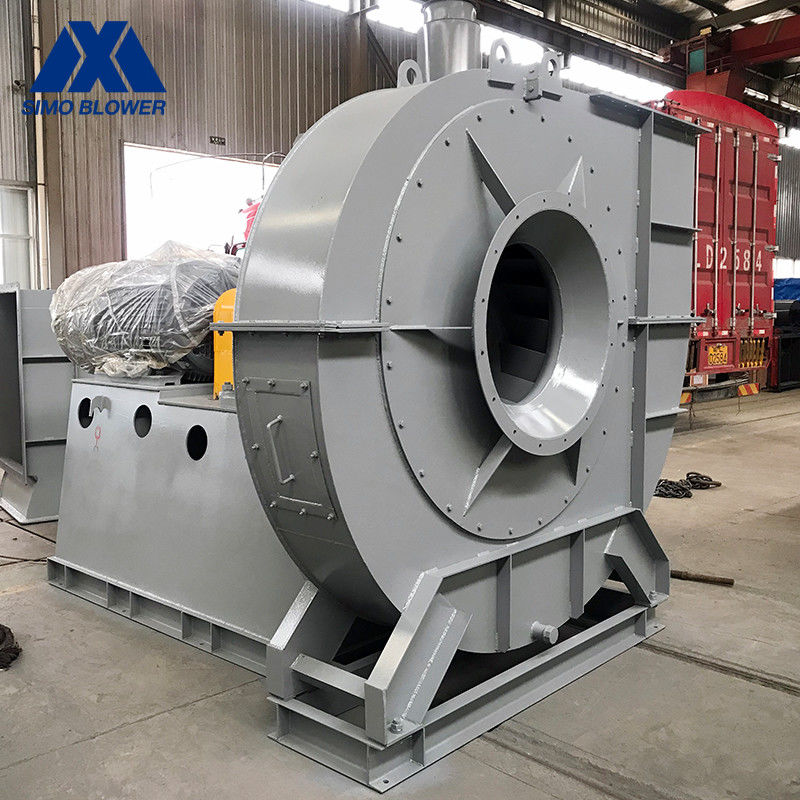

Carbon Steel Medium Pressure Antiwear Cement Centrifugal Blower Fan
Introduction
Medium requirements for 6-08 series fans: The medium to be transported should be non-corrosive, non-flammable, explosive, and free of viscous substances. The dust and hard particles contained in the medium should be no more than 150mg/m3.
The fan is equipped with temperature and vibration sensors, which can easily install the fan operation monitoring device.
Made of high quality carbon steel, stainless steel or other metal materials are available upon request.
Ultrasonic flaw detection on the welding seam and main spindle of the impeller to ensure that there are no welding defects or material defects and ensure the strength.
Technical data
series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
---|---|---|---|---|---|
6-08 | 8D | 1450 | 1859~2745 | 11000~26400 | 15 ~ 22 |
9D | 1450 | 2353~3474 | 15700~37500 | 30 ~ 45 | |
10D | 1450 | 2905~4289 | 21500~51500 | 45 ~ 75 | |
11D | 960 ~ 1450 | 1541~5190 | 22700~68500 | 22 ~ 110 | |
12D | 960 ~ 1450 | 1834~6176 | 24600~89000 | 37 ~ 160 | |
13D | 960 ~ 1450 | 2152~7248 | 31200~113000 | 55 ~ 250 | |
14D | 960 ~ 1450 | 2496~8406 | 39000~141000 | 75 ~ 400 | |
15D | 730 ~ 1450 | 1657~9650 | 36600~172000 | 45 ~ 500 | |
16D | 730 ~ 1450 | 1885~10980 | 44300~211000 | 75 ~ 710 | |
17D | 730 ~ 960 | 2128~5433 | 53200~168000 | 90 ~ 280 | |
18D | 730 ~ 960 | 2386~6091 | 63100~199000 | 110 ~ 355 | |
19D | 730 ~ 960 | 2658~6787 | 74200~234000 | 160 ~ 500 | |
20D | 730 ~ 960 | 2946~7520 | 86700~273000 | 200 ~ 630 | |
21D | 580 ~ 960 | 2050~8290 | 79500~316000 | 200 ~ 800 | |
22D | 580 ~ 960 | 2250~9099 | 92200~363000 | 220 ~ 1000 | |
23.5D | 580 ~ 960 | 2567~10380 | 112000~443000 | 220 ~ 1400 | |
25D | 580 ~ 730 | 6794~6464 | 134000~406000 | 355 ~ 800 | |
26.5D | 480 ~ 730 | 2236~7633 | 132000~483000 | 220 ~ 1120 | |
28D | 480 ~ 730 | 2496~8522 | 156000~569000 | 315 ~ 1400 | |
29.5D | 480 ~ 730 | 2771 ~ 9460 | 183000~667000 | 400 ~ 2000 |
Product Features
1. This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.
2. The current collector and impeller front plate are processed by advanced spinning process, and the precision is guaranteed.
3. V-belt and coupling drivetrain fan is equipped with integral bearing housing, good lubrication, stable operation, long bearing life.
4. Equipped with tapered sleeve embedded pulley, easy to disassemble.
FAQ
1,What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2,How about your company’s pre-sales service and after-sales service?
A: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3,Does your company have qualifications?
A: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
