Place of Origin: | Henan China |
---|---|
Brand Name: | SIMO |
Certification: | CE, ISO9001:2008,TUV |
Model Number: | SIMO Blower 6-05 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiable |
Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
Delivery Time: | 15-35 Days |
Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
Supply Ability: | 500 Sets Per Month |
Voltage: | 380V/415V/440V/660V/6KV/10KV | Electric Current Type: | AC |
---|---|---|---|
Motor Type: | Three Phase AC Motor | Category: | Blower |
Main Shaft: | High-strength Carbon Structural Steel | Power Source: | Three Phase AC Motor |
High Light: | Wear Resistant Cement Blower Fan,V Belt Driven Cement Blower Fan,Q345 Backward Curved Cement Fan |

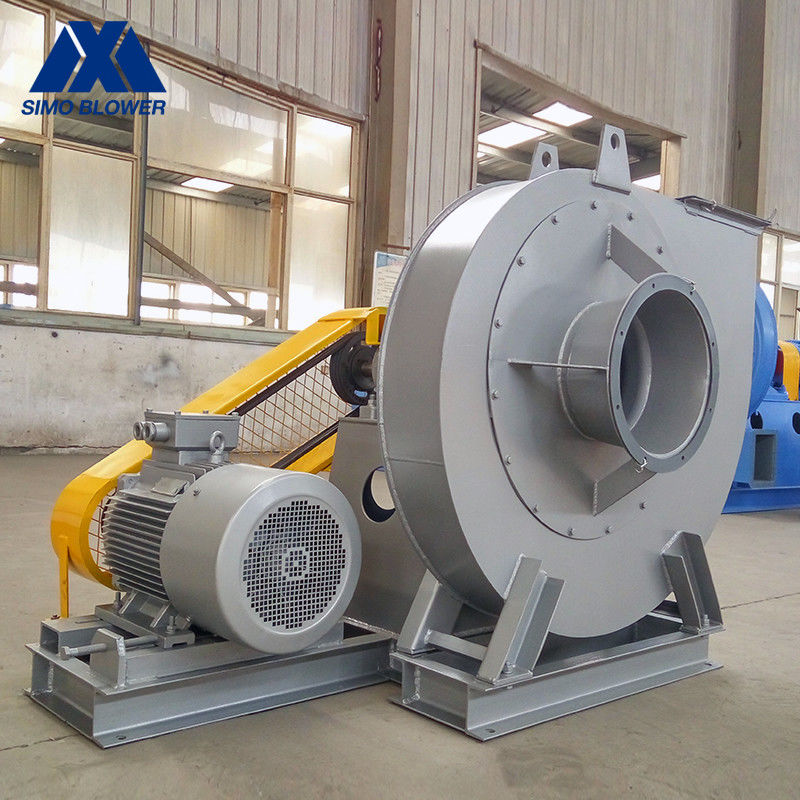

V-Belt Driven Q345 Backward Curved Wear Resistant Cement Blower Fan
Introduction
The 6-05 medium-pressure series fan can meet the performance requirements of large flow and high pressure at the same time, and has the characteristics of high efficiency and low noise. It is a series centrifugal fan products with a wide range of performance.
It can be selected if the intake conditions are equivalent and the performance is suitable.
It can be used to transport normal temperature or high temperature clean gas, dusty gas, flammable gas, corrosive gas, powder or granular materials, fiber materials, etc.
Technical data
series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
---|---|---|---|---|---|
6-05 | 6C | 2000~2880 | 2079~5884 | 1598~4375 | 3~11 |
7C | 1680~2880 | 8012~5864 | 3655~6948 | 4~18.5 | |
8C | 1500~2880 | 2079~10474 | 2842~10371 | 4~37 |
Product Features
1. The fan speed can be flexibly set by matching different belt pulley diameters to make the fan run at the highest efficiency point and reduce energy waste.
2. Motor slide guide can be provided for convenient belt tensioning to reduce energy loss caused by belt slack.
3. The bearing housing is reserved for the installation position of temperature and vibration sensors, which can facilitate the installation of fan operation monitoring device.
4. Use liquid lubricating oil. It is not necessary to open the bearing housing to replace and fill the lubricating oil. The bearing housing is provided with an observation window for easy observation of the quality and stock of the lubricating oil.
FAQ
1,What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2,How about your company’s pre-sales service and after-sales service?
A: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3,Does your company have qualifications?
A: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
