| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 7-10 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | General Ventilation | Power Source: | Three Phase AC Motor |
|---|---|---|---|
| Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung | Electric Current Type: | AC |
| Delivery Time: | 30 Days | Bearing Cooling: | Air Cooling Or Circulating Water Cooling |
| High Light: | Anti Explosion Flue Gas Exhaust Fan,Mineral Powder Flue Gas Exhaust Fan,Anti Explosion Flue Gas Fan |
||

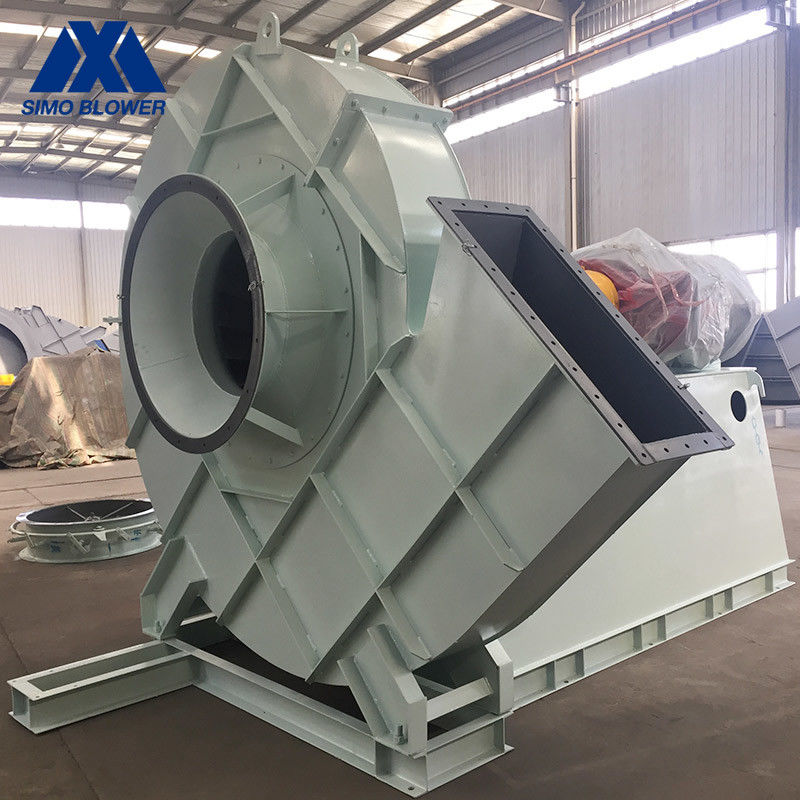

High Volume Anti-Explosion Mineral Powder Sintering Flue Gas Fan
Introduction Of Centrifugal Fan
The 7-10 series medium pressure centrifugal fan is the latest series of high-efficiency industrial centrifugal fan developed by our company.
This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.
The current collector and impeller front plate are processed by advanced spinning process and ensure precision.
V-belt driving and coupling driving type fan are equipped with integral bearing box, which has good lubrication, stable operation and long bearing life.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 7-09 | 5D | 3030 | 2982 ~ 3456 | 4486 ~ 8971 | 11 ~ 15 |
| 5.6D | 2360 | 2623～2264 | 4909～9817 | 11 | |
| 7.1D | 1830 ~ 2450 | 2188 ~ 3862 | 7757～20771 | 15 ~ 30 | |
| 8D | 1910 | 3517～3034 | 11582～23164 | 30 | |
| 9D | 1570 | 3002～2591 | 13555～27111 | 30 | |
| 10D | 1470 ~ 1650 | 2806 ~ 4109 | 17410 ～ 36478 | 45 ~ 55 |
Product Advantages
1.This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.
2.The current collector and impeller front plate are processed by advanced spinning process and ensure precision.
3. V-belt driving and coupling driving type fan are equipped with integral bearing box, which has good lubrication, stable operation and long bearing life.
4. Equipped with tapered sleeve embedded pulley, easy to assemble and disassemble.
FAQ
1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
