| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 6-12 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | General Ventilation | Power Source: | Three Phase AC Motor |
|---|---|---|---|
| Category: | Blower | Electric Current Type: | AC |
| Delivery Time: | 30 Days | Type: | Centrifugal Fan |
| High Light: | Rotary Kiln Flue Gas Fan,Lime Kiln Flue Gas Fan,Explosion Proof Kiln Flue Gas Fan |
||

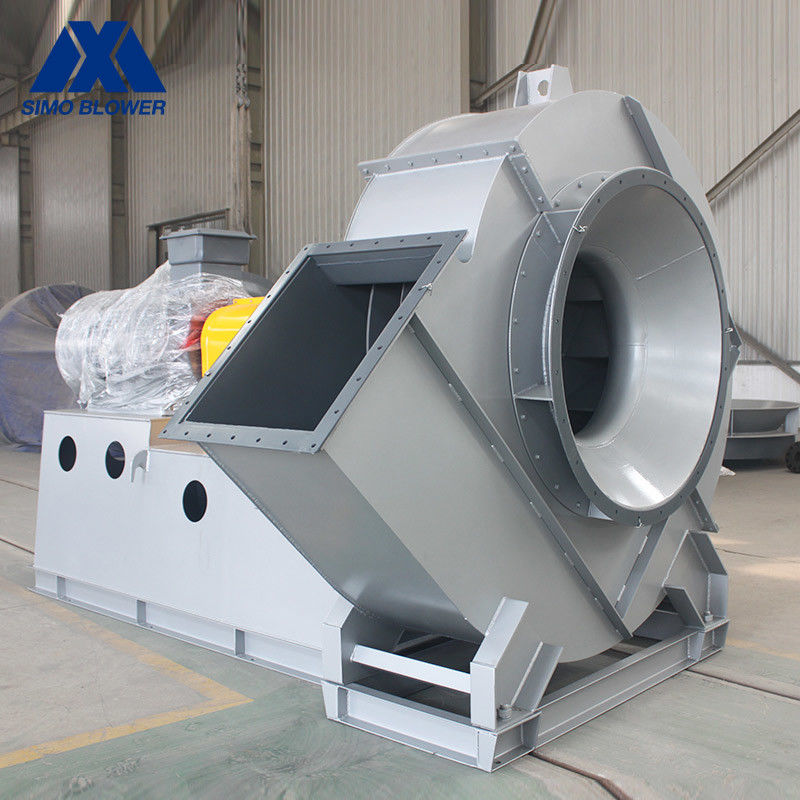

Industrial Energy Efficiency Anti-Explosion Lime Rotary Kiln Flue Gas Fan
Introduction Of Centrifugal Fan
Medium requirements for 6-08 series fans: The medium to be transported should be non-corrosive, non-flammable, explosive, and free of viscous substances. The dust and hard particles contained in the medium should be no more than 150mg/m3.
Medium temperature: The medium temperature of standard fans is not more than 80 °C, the V-belt driving type fan can transport media below 150 °C for a long time when it is added to the heat-dissipating wheel.
It is widely used in environmental dust removal, material transportation, and industrial equipment.The current collector and impeller front plate are processed by advanced spinning process, and the precision is guaranteed.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 6-12 | 3.15D | 1600～3150 | 354～1880 | 755～3323 | 0.75～3 |
| 4D | 1250～2500 | 345～1933 | 1184～5495 | 0.75～4 | |
| 5D | 1400～2000 | 675～1953 | 2487～8623 | 2.2～7.5 | |
| 6.3D | 1000～1600 | 344～1985 | 1776～13799 | 1.1～11 | |
| 8D | 1120～1400 | 547～1517 | 3554～12074 | 3～7.5 | |
| 10D | 800～1250 | 350～1953 | 2843～22075 | 1.5～15 | |
| 12.5D | 400～1000 | 350～2043 | 7402～56902 | 2.2～22 |
Product Advantages
1. V-belt and coupling drivetrain fan is equipped with integral bearing housing, good lubrication, stable operation, long bearing life.
2. Equipped with tapered sleeve embedded pulley, easy to disassemble.
3. The collector is equipped with a mounting flange to facilitate the customer to use the pipeline.
FAQ
1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
