HG785 Alloyed Steel Backward Boiler Fan Explosionproof Efficient Energy Saving

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 5-12
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: General Ventilation Voltage: 380V/415V/440V/660V/6KV/10KV
Category: Blower Bearing Type: Rolling Bearing
Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung Electric Current Type: AC
High Light:

HG785 Boiler Fan

,

Alloyed Steel Boiler Fan

,

Explosionproof Boiler Fan

HG785 Alloyed Steel Explosionproof Efficient Energy-Saving Backward Boiler Fan



Introduction Of Centrifugal Fan



The 5-12 series centrifugal fan is an enhanced version of the 5-11 series medium pressure centrifugal fan.

It has a larger output flow than the 5-11 series. It is also used to transport a variety of common gases and hard materials in the industrial field, the application object is exactly the same as 5-11 series fan.

The fan speed can be flexibly set by matching different belt pulley diameters to make the fan run at the highest efficiency point and reduce energy waste.

Motor slide guide can be provided for convenient belt tensioning to reduce energy loss caused by belt slack.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
5-12 4C 25003550 7422221 20655564 2.25.5
5C 22403150 9642819 37729851 411
6.3C 20002800 12213545 673717516 7.522
8C 14002000 11003323 965625619 1130
10C 12501800 14194483 1545144634 2275
12.5C 10001400 21454234 2414367803 37110


Product Advantages



1. The bearing housing uses labyrinth mechanical seal, unique anti-leakage design inside, vent hole at the top, and sealing grease at the joint, completely eliminating the possibility of oil leakage in the bearing hosing.

2. After annealed treatment, the internal stress of the structure generated during welding can be completely eliminated to ensure that the impeller will not creepage and crack.

3. The impeller is subjected to a high standard of dynamic balancing adjusting to ensure stable operation of the fan.

4. After running test and vibration value detection, the operation is reliable.



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.

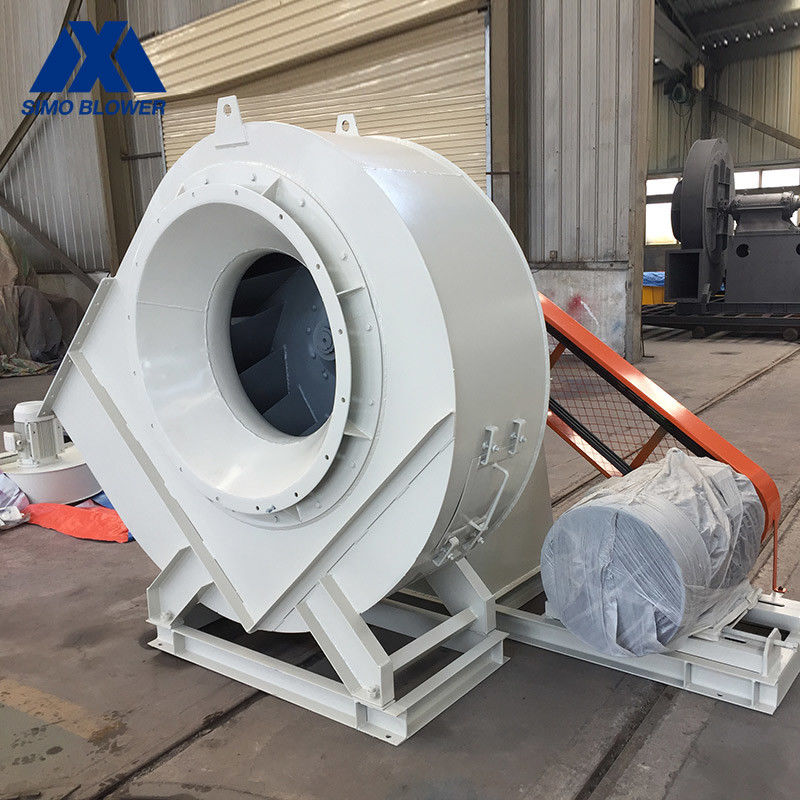

HG785 Alloyed Steel Backward Boiler Fan Explosionproof Efficient Energy Saving 0

HG785 Alloyed Steel Backward Boiler Fan Explosionproof Efficient Energy Saving 1

HG785 Alloyed Steel Backward Boiler Fan Explosionproof Efficient Energy Saving 2
