Double Suction Industrial Boiler Fan High Temperature Medium Pressure

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 5-11
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: General Ventilation Voltage: 380V/415V/440V/660V/6KV/10KV
Motor Type: Three Phase AC Motor Bearing: SKF/FAG/By Your Demand
Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung Color: Customer's Requirement
High Light:

Double Suction Boiler Fan

,

Double Suction boiler exhaust fan

,

Double Suction boiler blower fan

Double Suction Industrial High Temperature Medium Pressure Boiler Fan



Introduction Of Centrifugal Fan



This type of fan is currently used in the boiler industry. The air volume of the induced draft fan and the difference in wind pressure are relatively large, in order to adapt to the above situation, considering the practicability of the fan, in addition to the 20-ton boiler ID fan need large power coupling direct transmission, the other uses the triangular belt type transmission.

This can use different speeds to meet the requirements of various dust collectors in the same tonnage boiler, combined redundant fan series and machine number.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
5-11 12.4D 2900 9901873 27505750 34
5D 26202900 12652265 48409870 5.57.5
6D 26202850 18243148 837016760 1518.5
8D 18201980 17262991 1378027600 2230
9D 17401820 20003197 1878036140 37
12D 1450 36092471 3710068250 75
12.4D 1450 39032638 4094075330 90



Product Advantages



1. The bearing cooling method selects a low-cost water-cooling method or an oil-cooling method with better heat dissipation depending on the gas temperature and the conditions of the use environment. For extremely high temperature operating conditions, an electronic cooler can also be added to absolutely protect the reliable operation of the fan system.

2. For the materials of impeller and main shaft, for different working conditions and working speed, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature resistant high-strength alloy steel, make the impeller and main shaft to maintain reliable strength at high temperatures.

3. After the production is completed, all products are tested for running and vibration values for reliable operation.



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.

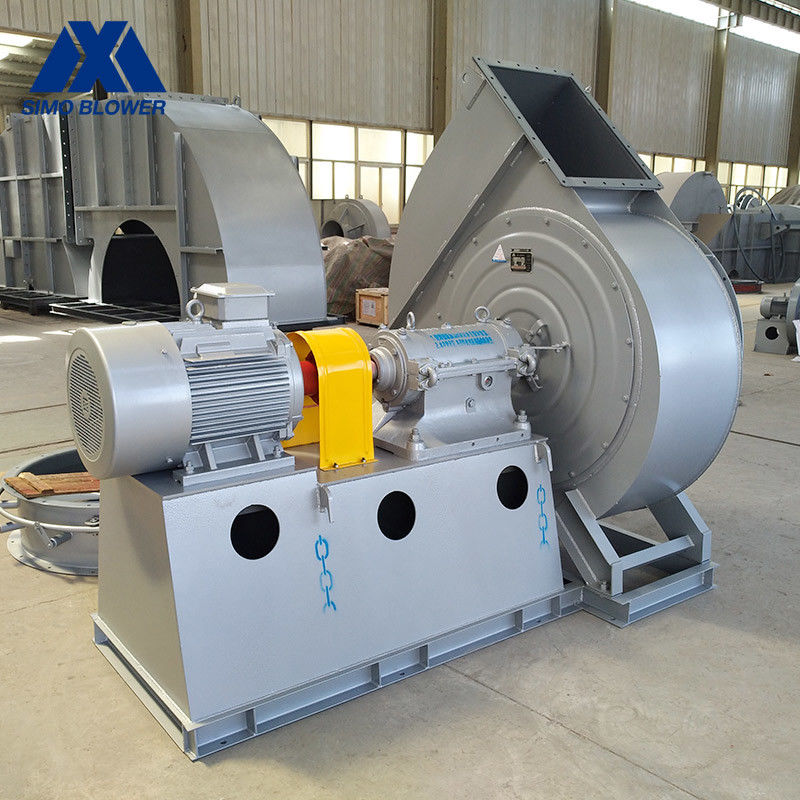

Double Suction Industrial Boiler Fan High Temperature Medium Pressure 0
