Place of Origin: | Henan China |
---|---|
Brand Name: | SIMO |
Certification: | CE, ISO9001:2008,TUV |
Model Number: | SIMO Blower 5-12 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiable |
Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
Delivery Time: | 15-35 Days |
Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
Supply Ability: | 500 Sets Per Month |
Application: | Industrial Ventilation | Feature: | High Performance |
---|---|---|---|
Lubrication: | Oil Bath Lubrication | Drivetrain: | Direct/Coupling Driven/V-belt Driven |
Noise: | Optional | Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung |

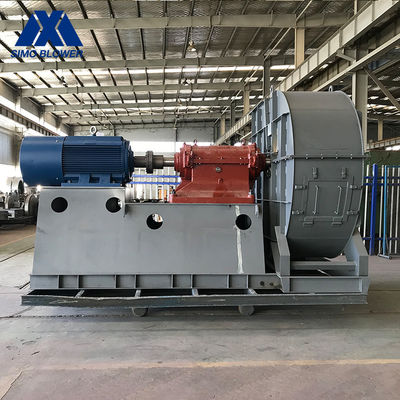

High Light: | Alloy Steel Centrifugal Flow Fan,Coupling Driving Centrifugal Flow Fan,Coupling Driving boiler centrifugal fan |
Introduction
The 5-12 series centrifugal fan is an enhanced version of the 5-11 series medium pressure centrifugal fan.
It has a larger output flow than the 5-11 series. It is also used to transport a variety of common gases and hard materials in the industrial field, the application object is exactly the same as 5-11 series fan.
Technical data
series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
---|---|---|---|---|---|
5-12 | 4D | 2500~3550 | 742~2221 | 2065~5564 | 2.2~5.5 |
5D | 2240~3150 | 964~2819 | 3772~9851 | 4~11 | |
6.3D | 2000~2800 | 1221~3545 | 6737~17516 | 7.5~22 | |
8D | 1400~2000 | 1100~3323 | 9656~25619 | 11~30 | |
10D | 1250~1800 | 1419~4483 | 15451~44634 | 22~75 | |
12.5D | 1000~1400 | 2145~4234 | 24143~67803 | 37~110 |
FAQ
1.Q: What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow rate(m3/h), Total pressure(Pa) or Static pressure(Pa), Inlet temperature(°C), Voltage and frequency on the working site.
2. Q:What is your delivery time?
A:15-35workdays, depending on the model of the fan.
3.Q:Are you manufacturer or trading company?
A:We are the professional manufacturer of centrifugal fans , over 65 years production experience and sales experience.
4.Q:What's your MOQ?
A:The MOQ is 1set,but larger quantity, lower price.
5.Q: What’s your warranty?
A: 12 months after arrival of the goods on site.
6.Q:How do you control the product's quality?
A:All the products have quality testing and dynamic balance before delivery.
Application
Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.
