| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 9-03 |
| Minimum Order Quantity: | 1 Set |
| Price: | 300-5000 USD |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Category: | Blower | Mounting: | Free Standing |
|---|---|---|---|
| Motor: | SIEMENS/ABB/By Your Demand | After-sales Service Provided: | Field Installation, Commissioning And Training |
| Main Shaft: | High-strength Carbon Structural Steel | Electric Current Type: | AC |
| High Light: | industrial centrifugal blower,centrifugal exhaust fan blower |
||

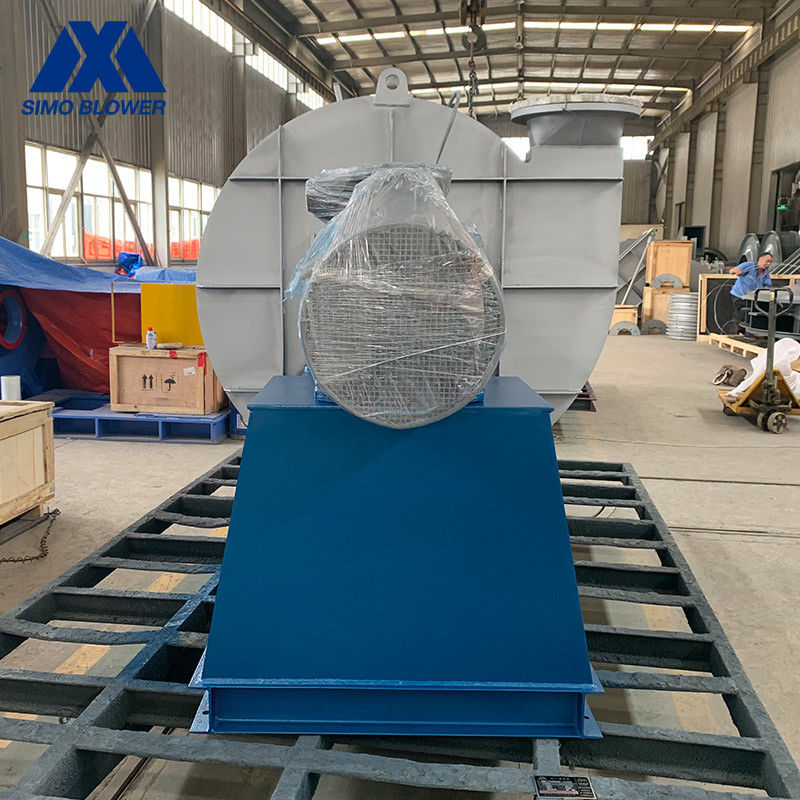

Wear Resistant Long Life High Pressure Centrifugal Ventilation Flow Fan
Introduction
9-03 series fan-type iron furnace special high-pressure centrifugal flow fan, is suitable for IL/h, 2L/h, 3L/h, 3L/h, 7L/h melting rate of iron furnace blast performance requirements.
The fan can also be used as the blast for various furnace forging furnaces.
Wear Resistant Long Life High Pressure Centrifugal Ventilation Flow Fan is also suitable for conveying air and non-corrosive, non-self-igniting, non-viscous materials or light powder/debris/short fiber materials.
Wear Resistant Long Life High Pressure Centrifugal Ventilation Flow Fan is suitable for forced ventilation, forced cooling, blasting of smelting furnaces and foundry furnaces, pressurization or decompression sealing of industrial equipment.
Technical data
|
PRODUCT PARAMETERS
|
|||
|
Centrifugal Flow Fan Application
|
Temperature | Normal temperature air, Hot air | |
| Air composition | Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials | ||
|
Centrifugal Flow Fan Performance
|
Impeller diameter |
400-1800 |
mm |
| Speed of mainshaft |
≤4000 |
rpm | |
| Pressure range |
1581-10587 |
Pa | |
| Flow range |
906-61297 |
m3/h | |
|
Centrifugal Flow Fan Structure
|
Blade | Forward | |
| Impeller support | SWSI (Single Width, Single Inlet), Impeller overhung. | ||
| Drivetrain |
Coupling |
Can assign | |
| Lubrication | Oil bath lubrication | ||
| Bearing cooling | Air cooling, Water cooling, Oil cooling | ||
|
Centrifugal Flow Fan System
Configuration |
Motor | ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand… |
Can assign |
| Impeller | Q235, Q345, SS304, SS316, HG785, DB685... | ||
|
Casing, Air inlet cone, Air inlet damper |
Q235, Q345, SS304, SS316, HG785, DB685... | ||
| Main shaft | 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel... | ||
| Bearing | FAG, SKF, NSK, ZWZ… | ||
|
Centrifugal Flow Fan Optional
Components |
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc |
||
Advantages and Features
1. Wear Resistant Long Life High Pressure Centrifugal Ventilation Flow Fan can output high pressure and is suitable for any industrial occasion where high pressure & normal temperature gas is required.
2. The energy transfer efficiency is high, the energy of the motor is directly applied to the impeller, and there is no energy consumption during the transfer.
3. The motor uses high-efficiency and energy-saving motors from China's leading motor manufacturers (and can also install branded motors required by users), with reliable quality and lower energy consumption.
4. Wear Resistant Long Life High Pressure Centrifugal Ventilation Flow Fan is made of high quality carbon steel, stainless steel or other metal materials are available upon request.
5. The Centrifugal Ventilation Flow Fan impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.
6.After the completion of production, after running test and vibration value detection, the operation is reliable.
