Large Capacity Process Fans In Cement Plant Q345 Three Phase Blower

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-12
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Category: Blower Impeller: Dynamic Balanced
Color: Customer's Requirement Bearing: SKF/FAG/By Your Demand
Power Source: Three Phase AC Motor Medium: Clean Air/Dusty Air
High Light:

industrial centrifugal blower

,

large centrifugal fan

,

Q345 Three Phase Blower

Cement Mill Centrifugal Flow Antiwear Q345 Large Capacity Blower Fan



Introduction



6-12 series high-pressure heavy-duty centrifugal Flow fan, suitable for conveying non-flammable gas and granule/powder/chip/fiber material at normal temperature or high temperature.

The output gas flow is slightly larger than the 6-11 series heavy-duty centrifugal fan, the air volume is large, and the pressure is high, smooth operation, high reliability and long life.

Cement Mill Centrifugal Flow Antiwear Q345 Large Capacity Blower Fan is widely used in industrial applications such as sintering systems, large-scale dust collectors, feed/air supply/exhaustion of large industrial rotary kiln/calcining kiln, air intake of large boilers, and desulfurization and denitration of industrial waste gas.



Technical data



PRODUCT PARAMETERS
Centrifugal Flow Fan Application
Temperature Normal temperature air, Hot air
Air composition Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials
Centrifugal Flow Fan Performance
Impeller diameter

315~1250

mm
Speed of mainshaft

400~3150

rpm
Pressure range

345~2043

Pa
Flow range

755-56902

m3/h
Centrifugal Flow Fan Structure
Blade Backward
Impeller support SWSI (Single Width, Single Inlet), Impeller overhung.
Drivetrain

Coupling

Can assign
Lubrication Oil bath lubrication
Bearing cooling Air cooling, Water cooling, Oil cooling
Centrifugal Flow Fan System
configuration
Motor ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand…



Can assign

Impeller Q235, Q345, SS304, SS316, HG785, DB685...

Casing, Air inlet cone,

Air inlet damper

Q235, Q345, SS304, SS316, HG785, DB685...
Main shaft 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel...
Bearing FAG, SKF, NSK, ZWZ…
Centrifugal Flow Fan Optional
components
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc


Advantages and Features



1. According to customer performance requirements customized design, and optimized by CFD technology, the energy consumption is lower than similar models.

2. The blade placement angle is optimized, more wear-resistant and longer service life.

3. The variable inlet damper can be used to flexibly adjust the pressure and flow of the fan during operation. The variable frequency motor can also be selected to adjust the pressure and flow of the fan by changing the speed.

4. The Centrifugal Flow Blower Fan is equipped with temperature and vibration sensors, which can easily install the fan operation monitoring device.

5. Made of high quality carbon steel, stainless steel or other metal materials are available upon request.

6. Ultrasonic flaw detection on the welding seam and main spindle of the impeller to ensure that there are no welding defects or material defects and ensure the strength.

7. The Centrifugal Flow Blower Fan's Bearing cooling method: according to gas temperature and operating environment conditions choose low-cost water-cooling method or oil-cooling method with good heat dissipation performance.

For extremely high temperature operating conditions, can also be installed with an electronic cooler, absolute protection of the reliable operation of the fan system.

8. Large parts and components are disassembled and transported, so that most parts can be loaded into containers for transportation, saving you shipping costs.

9. Each component has an installation number. Under the guidance of the installation manual, the system assembly can be completed smoothly.

10. Provide on-site arrangement and guidance services.

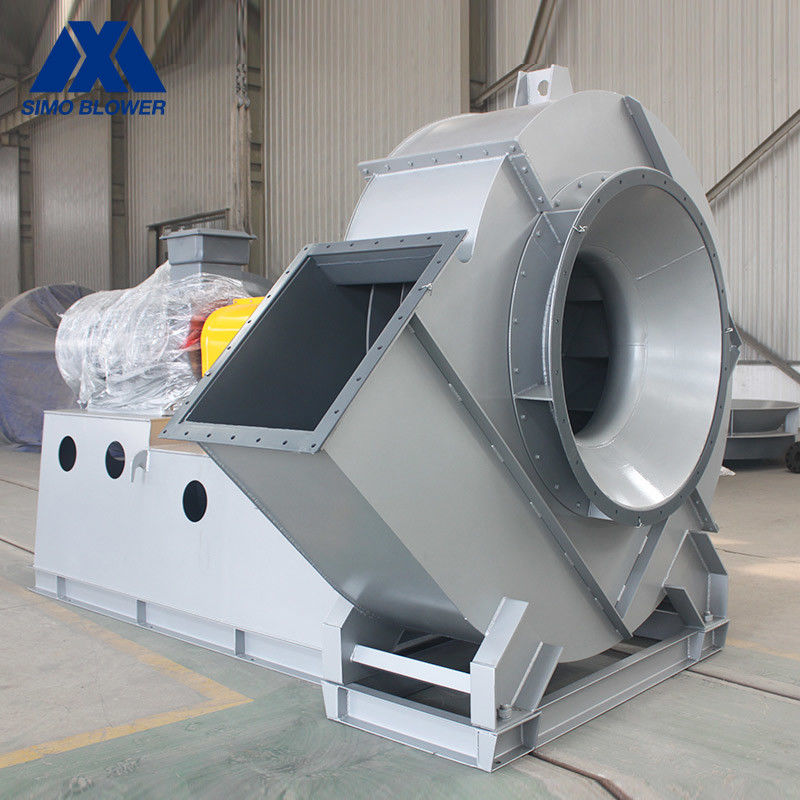

Large Capacity Process Fans In Cement Plant Q345 Three Phase Blower 0

Large Capacity Process Fans In Cement Plant Q345 Three Phase Blower 1
