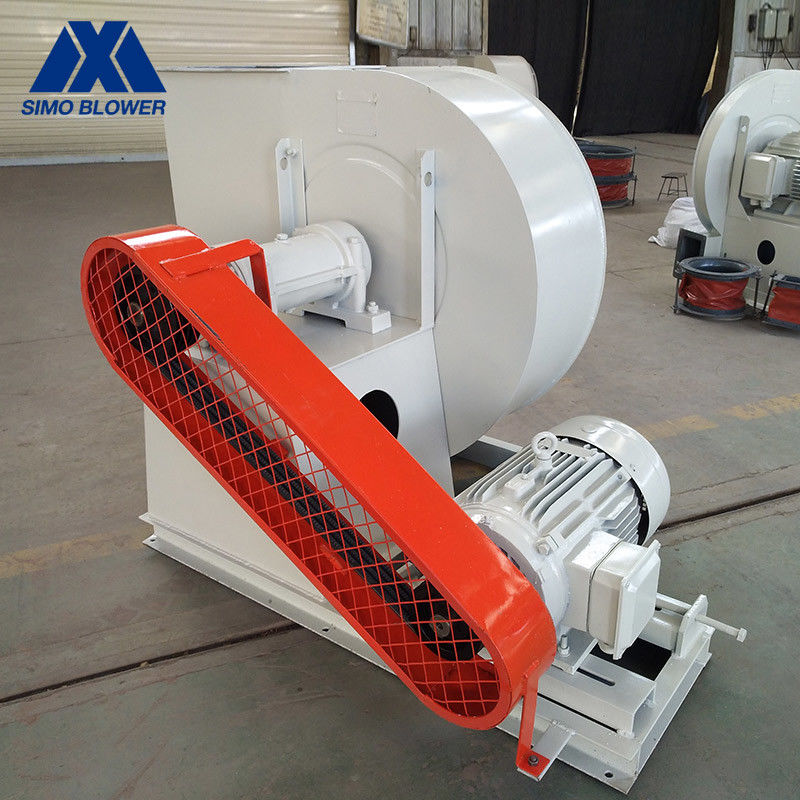

Medium Pressure Stokerfeed Boiler Blower Fan Oil Bath Lubrication
industrial centrifugal blower
,centrifugal exhaust fan blower
Medium Pressure Stainless Steel Stokerfeed Boiler Centrifugal Flow Blower Fan
Introduction
The 4-14 series centrifugal flow fan is suitable for indoor ventilation in general factories and large buildings.
It can be used to input gas as well as to output gas.
The gas delivered by the 4-14 series centrifugal flow fan should be no more than 80 °C air and other gases that are not self-igniting and are not harmful to the human body and are not corrosive to steel materials. No viscous substances are allowed in the gas, and the dust and hard particles contained in the gas are not more than 150 mg/m3.
Technical data
| centrifugal flow fan series | centrifugal flow fan model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 4-14 | 8C | 1450 | 2177～1481 | 16985～30134 | 18.5 |
| 9C | 960 ~ 1450 | 824 ~ 2756 | 16011～42906 | 11 ~ 30 | |
| 10C | 730 ~ 1450 | 588 ~ 3403 | 16701 ～58856 | 7.5 ~ 55 | |
| 11.2C | 730 ~ 1450 | 736 ~ 4276 | 23464 ～82688 | 11 ~ 90 | |
| 12.5C | 730 ~ 1450 | 912 ~ 5325 | 32619 ～114952 | 22 ~ 160 | |
| 14C | 730 ~ 1450 | 1147 ~ 6678 | 45827～161499 | 37 ~ 315 | |
| 16C | 580 ~ 960 | 951 ~ 3825 | 54351～159606 | 45 ~ 160 |
Advantages and Features
It has large flow and low noise, more use in building ventilation, ventilation and drying of materials, air purification and industrial waste gas treatment, industrial dust collectors, air purification and discharge in hazardous working environments(Paper production line, electrolytic aluminum production line, textile factory...). Blasting of boilers and brick kilns, transport of various gases, transport of granules/powders/debris/fiber materials, etc.
-
