Alloy Steel Forward Anti Explosion Industrial FD Fan High Temperature Boiler

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-06
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Bearing: SKF/FAG/By Your Demand
Mounting: Free Standing Lubrication: Oil Bath Lubrication
Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung Warranty: 1 Year
High Light:

Anti Explosion Industrial FD Fan

,

Forward Industrial FD Fan

,

Anti Explosion fd fan in boiler

Alloy Steel Forward Anti-Explosion Industrial FD High Temperature

Boiler Fan

Introduction


Medium requirements for 6-08 series fans: The medium to be transported should be non-corrosive, non-flammable, explosive, and free of viscous substances. The dust and hard particles contained in the medium should be no more than 150mg/m3.

Medium temperature: The medium temperature of standard fans is not more than 80 °C, the V-belt driving type fan can transport media below 150 °C for a long time when it is added to the heat-dissipating wheel.

It is widely used in environmental dust removal, material transportation, and industrial equipment.


Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
6-06 8D 1450 18592745 1100026400 15 ~ 22
9D 1450 23533474 1570037500 30 ~ 45
10D 1450 29054289 2150051500 45 ~ 75
11D 960 ~ 1450 15415190 2270068500 22 ~ 110
12D 960 ~ 1450 18346176 2460089000 37 ~ 160
13D 960 ~ 1450 21527248 31200113000 55 ~ 250
14D 960 ~ 1450 24968406 39000141000 75 ~ 400
15D 730 ~ 1450 16579650 36600172000 45 ~ 500
16D 730 ~ 1450 188510980 44300211000 75 ~ 710
17D 730 ~ 960 21285433 53200168000 90 ~ 280
18D 730 ~ 960 23866091 63100199000 110 ~ 355
19D 730 ~ 960 26586787 74200234000 160 ~ 500
20D 730 ~ 960 29467520 86700273000 200 ~ 630
21D 580 ~ 960 20508290 79500316000 200 ~ 800
22D 580 ~ 960 22509099 92200363000 220 ~ 1000
23.5D 580 ~ 960 256710380 112000443000 220 ~ 1400
25D 580 ~ 730 67946464 134000406000 355 ~ 800
26.5D 480 ~ 730 22367633 132000483000 220 ~ 1120
28D 480 ~ 730 24968522 156000569000 315 ~ 1400
29.5D 480 ~ 730 2771 ~ 9460 183000667000 400 ~ 2000


Product Features



1. This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.

2. The current collector and impeller front plate are processed by advanced spinning process, and the precision is guaranteed.

3. V-belt and coupling drivetrain fan is equipped with integral bearing housing, good lubrication, stable operation, long bearing life.


FAQ


1.Q: What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow rate(m3/h), Total pressure(Pa) or Static pressure(Pa), Inlet temperature(°C), Voltage and frequency on the working site.



2. Q:What is your delivery time?
A:15-35workdays, depending on the model of the fan.



3.Q:Are you manufacturer or trading company?
A:We are the professional manufacturer of centrifugal fans , over 65 years production experience and sales experience.



4.Q:What's your MOQ?
A:The MOQ is 1set,but larger quantity, lower price.



5.Q: What’s your warranty?
A: 12 months after arrival of the goods on site.



6.Q:How do you control the product's quality?
A:All the products have quality testing and dynamic balance before delivery.

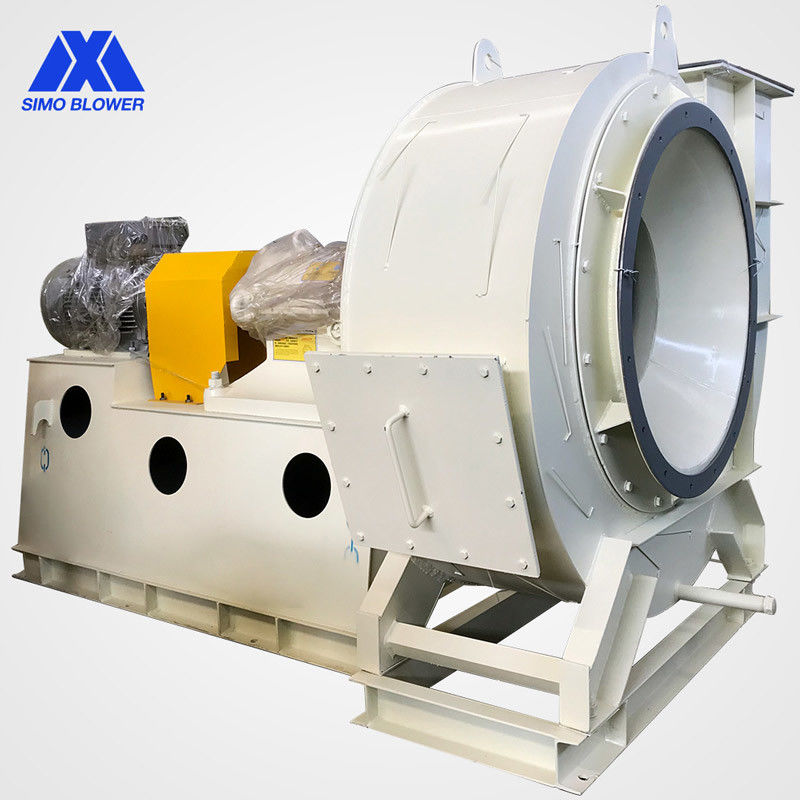

Alloy Steel Forward Anti Explosion Industrial FD Fan High Temperature Boiler 0
