| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 6-11 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Bearing Type: | Rolling Bearing | Bearing: | SKF/FAG/By Your Demand |
|---|---|---|---|
| Main Shaft: | High-strength Carbon Structural Steel | Electric Current Type: | AC |
| Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung | After-sales Service Provided: | Field Installation, Commissioning And Training |
| High Light: | Coal Fired Boiler Centrifugal Fan,Double Inlet Boiler Centrifugal Fan,Double Inlet boiler blower fan |
||

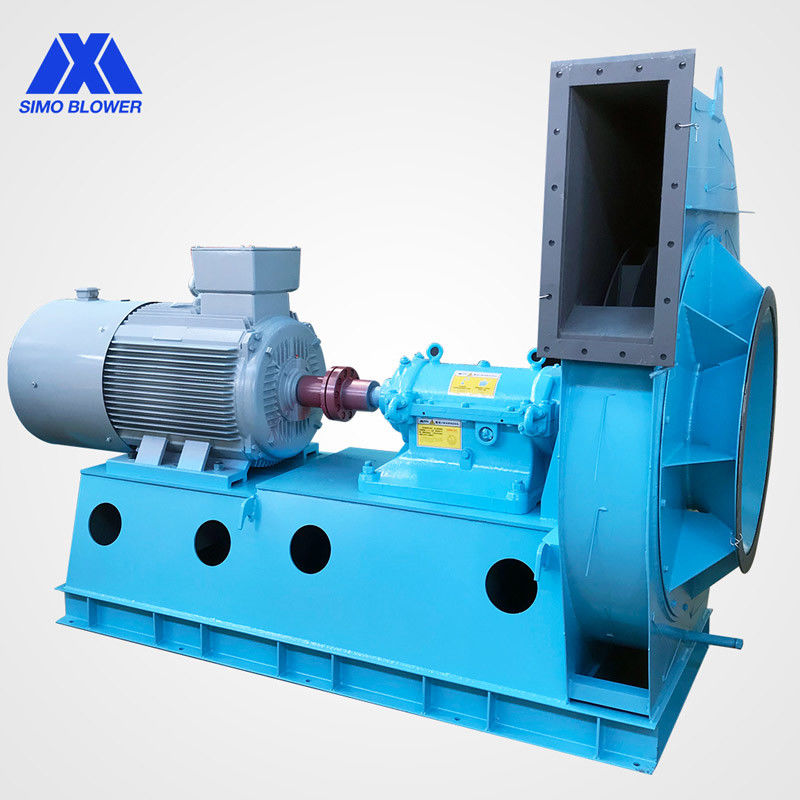

Double Inlet Medium Pressure Coal-Fired Boiler Centrifugal Fan
Introduction
The 6-11 series have the characteristics of high efficiency, flat performance curve, wear resistance, and work stability.
It has excellent performance and can output high pressure.
It can be used to transport normal temperature or high temperature non-flammable gases, particles, powder, debris, fibrous materials etc.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 6-11 | 14D | 1450 | 5435～7086 | 22889～41542 | 90～110 |
| 15D | 1450 | 6240～8134 | 28153～51095 | 110～160 | |
| 16D | 1450 | 7099～9255 | 34167～62011 | 160～220 | |
| 17D | 1450 | 8014～10448 | 40892～74379 | 220～280 | |
| 18D | 1450 | 8986～11713 | 48648～88292 | 280～400 | |
| 19D | 1450 | 10012～13051 | 57215～103840 | 400～500 | |
| 20D | 1450 | 11093～14461 | 66733～121114 | 450～630 |
Product Features
1. It can output higher outlet pressure and can work in high temperature medium, suitable for any need to transport high pressure & high temperature gas industrial occasions.
2. According to customer performance requirements customized design, and optimized by CFD technology, the energy consumption is lower than similar models.
3. For the material of impeller and main spindle, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature high-strength alloy steel for different working conditions temperature and working speed, so that the impeller and main spindle at high temperature still maintain reliable strength.
FAQ
1.Q: What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow rate(m3/h), Total pressure(Pa) or Static pressure(Pa), Inlet temperature(°C), Voltage and frequency on the working site.
2. Q:What is your delivery time?
A:15-35workdays, depending on the model of the fan.
3.Q:Are you manufacturer or trading company?
A:We are the professional manufacturer of centrifugal fans , over 65 years production experience and sales experience.
4.Q:What's your MOQ?
A:The MOQ is 1set,but larger quantity, lower price.
5.Q: What’s your warranty?
A: 12 months after arrival of the goods on site.
6.Q:How do you control the product's quality?
A:All the products have quality testing and dynamic balance before delivery.
