Large Capacity Backward Curved Induced Draught Centrifugal Boiler Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 5-06
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Bearing Type: Rolling Bearing Drivetrain: Direct/Coupling Driven/V-belt Driven
System Type: Single Inlet, Overhang Type Color: Customer's Requirement
Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung Material: Carbon Steel/Alloy Steel/Stainless Steel
High Light:

Induced Draught Boiler Fan

,

Backward Curved Boiler Fan

,

Backward Curved Boiler blower

Large Capacity Backward Curved Induced Draught Centrifugal Boiler Fan

Introduction


This can use different speeds to meet the requirements of various dust collectors in the same tonnage boiler, combined redundant fan series and machine number.
It is used to transport various common gases and hard materials in industrial production, and is suitable for various harsh conditions such as high temperature, wear and corrosion.

Technical data


series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
5-06 8D 1450 25921989 1202820607 15
10D 1450 40513108 2349340249 55
11D 1450 30362329 3126953571 55
12.4D 1450 38582960 4479276740 90


Product Features

1. For dust-containing gas, we can meet various working conditions from a small amount of dust to a very large dust content. After special treatment, the surface hardness of the blade can reach HRC60~70, which can extend the life of the impeller by more than 3 times.
2. The bearing housing is reserved for temperature and vibration sensor mounting positions, for convenient to install the fan operation monitoring device.
3. The weld and the main shaft of the impeller are ultrasonic flaw detection to ensure that there are no welding defects and material defects to ensure strength.
4. After the production is completed, all products are tested for running and vibration values for reliable operation.

FAQ

1.Q: What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow rate(m3/h), Total pressure(Pa) or Static pressure(Pa), Inlet temperature(°C), Voltage and frequency on the working site.

2. Q:What is your
delivery time?
A:15-35workdays, depending on the model of the fan.

3.Q:Are you
manufacturer or trading company?
A:We are the professional manufacturer of centrifugal fans , over 65 years production experience and sales experience.

4.Q:What's your
MOQ?
A:The MOQ is 1set,but larger quantity, lower price.

5.Q: What’s your
warranty?
A: 12 months after arrival of the goods on site.

6.Q:How do you control the product's
quality?
A:All the products have quality testing and dynamic balance before delivery.

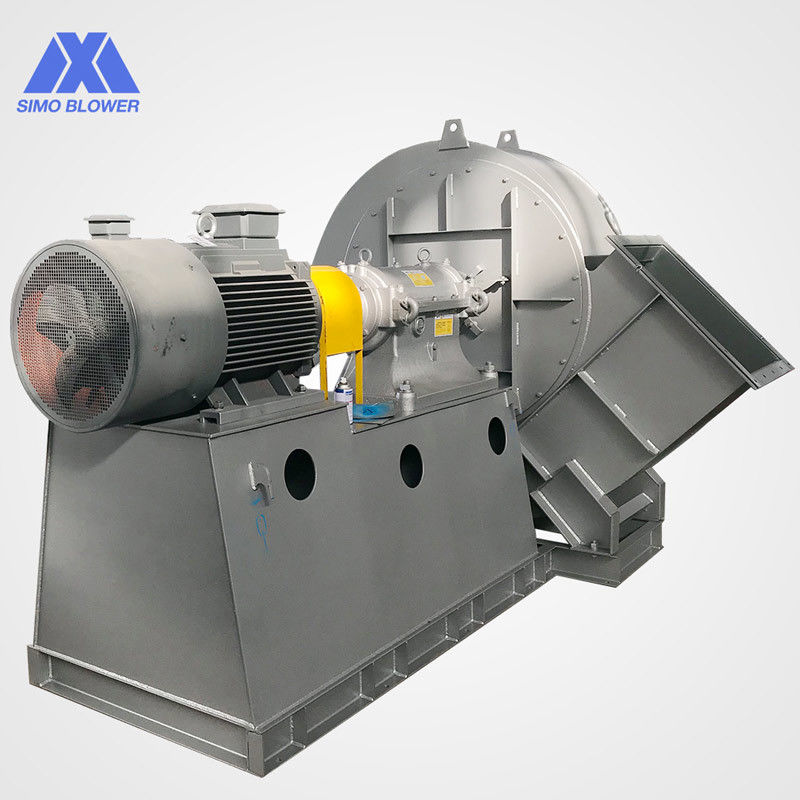

Large Capacity Backward Curved Induced Draught Centrifugal Boiler Fan 0Large Capacity Backward Curved Induced Draught Centrifugal Boiler Fan 1

Large Capacity Backward Curved Induced Draught Centrifugal Boiler Fan 2
