Place of Origin: | Henan China |
---|---|
Brand Name: | SIMO |
Certification: | CE, ISO9001:2008,TUV |
Model Number: | SIMO Blower 5-10 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiable |
Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
Delivery Time: | 15-35 Days |
Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
Supply Ability: | 500 Sets Per Month |
Bearing Type: | Rolling Bearing | Bearing Cooling: | Air Cooling Or Circulating Water Cooling |
---|---|---|---|
Motor Type: | Three Phase AC Motor | Electric Current Type: | AC |
Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung | Material: | Carbon Steel/Alloy Steel/Stainless Steel |
High Light: | Alloy Steel Boiler Fan,Coupling Driven Boiler Fan,Coupling Driven fan in boiler |

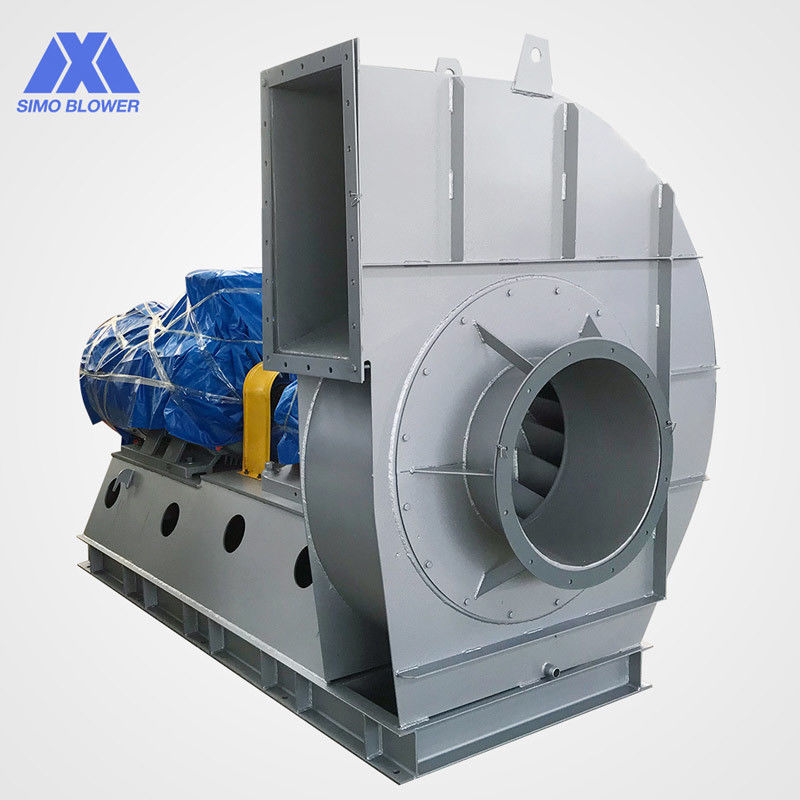

Alloy Steel Coupling Driven Energy Saving Forced Draft Boiler Fan
Introduction
1.It can output higher outlet pressure and provide more gas flow at the same time, low noise. Stable operation at higher media temperatures.
2. The fan speed can be flexibly set by matching different belt pulley diameters to make the fan run at the highest efficiency point and reduce energy waste.
3. Motor slide guide can be provided for convenient belt tensioning to reduce energy loss caused by belt slack.
4. The bearing housing is reserved for the installation position of temperature and vibration sensors, which can facilitate the installation of fan operation monitoring device.
5. Use liquid lubricating oil. It is not necessary to open the bearing housing to replace and fill the lubricating oil. The bearing housing is provided with an observation window for easy observation of the quality and stock of the lubricating oil.
Technical data
series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
---|---|---|---|---|---|
5-10 | 4D | 2900 | 1606~1232 | 3007~5152 | 3 |
4.5D | 2880 | 2004~1538 | 4252~7284 | 5.5 | |
5D | 2900 | 2509~1925 | 5873~10062 | 7.5 | |
5.4D | 2900 | 2927~2246 | 7398~12675 | 11 | |
6D | 2500 | 2685~2060 | 8749~14989 | 15 | |
8D | 2000 | 3055~2344 | 16591~28424 | 30 | |
9D | 2000 | 3867~2967 | 23623~40471 | 45 | |
10D | 1600 | 3055~2344 | 25923~44413 | 45 |
Product Features
1. The bearing housing uses labyrinth mechanical seal, unique anti-leakage design inside, vent hole at the top, and sealing grease at the joint, completely eliminating the possibility of oil leakage in the bearing hosing.
2. After annealed treatment, the internal stress of the structure generated during welding can be completely eliminated to ensure that the impeller will not creepage and crack.
3. The impeller is subjected to a high standard of dynamic balancing adjusting to ensure stable operation of the fan.
4. After running test and vibration value detection, the operation is reliable.
FAQ
1.Q: What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow rate(m3/h), Total pressure(Pa) or Static pressure(Pa), Inlet temperature(°C), Voltage and frequency on the working site.
2. Q:What is your delivery time?
A:15-35workdays, depending on the model of the fan.
3.Q:Are you manufacturer or trading company?
A:We are the professional manufacturer of centrifugal fans , over 65 years production experience and sales experience.
4.Q:What's your MOQ?
A:The MOQ is 1set,but larger quantity, lower price.
5.Q: What’s your warranty?
A: 12 months after arrival of the goods on site.
6.Q:How do you control the product's quality?
A:All the products have quality testing and dynamic balance before delivery.
