HG785 Alloyed Steel Backward Antifraying Boiler Centrifugal Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-11
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Bearing Type: Rolling Bearing Power Source: Three Phase AC Motor
Main Shaft: High-strength Carbon Structural Steel Electric Current Type: AC
Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung
High Light:

HG785 Boiler Centrifugal Fan

,

Antifraying Boiler Centrifugal Fan

,

Alloyed Steel Boiler Centrifugal Fan

HG785 Alloyed Steel Backward Antifraying Boiler Centrifugal Fan

Introduction


It has the characteristics of not easy dust accumulation and wear resistant, high efficiency and low noise. This series is a range of centrifugal fans with a wide range of performance.

It is suitable for discharging gas containing dust, wood chips and finely divided fibers (If it contains hard particles, a dust removal device must be installed in front of the fan.), it can also be used as a general ventilator for ventilation.


Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
6-11 14D 1450 54357086 2288941542 90110
15D 1450 62408134 2815351095 110160
16D 1450 70999255 3416762011 160220
17D 1450 801410448 4089274379 220280
18D 1450 898611713 4864888292 280400
19D 1450 1001213051 57215103840 400500
20D 1450 1109314461 66733121114 450630



Product Features


1.It can output higher outlet pressure and provide more gas flow at the same time, low noise.

2. The fan speed can be flexibly set by matching different belt pulley diameters to make the fan run at the highest efficiency point and reduce energy waste.

3. Motor slide guide can be provided for convenient belt tensioning to reduce energy loss caused by belt slack.

4. The bearing housing is reserved for the installation position of temperature and vibration sensors, which can facilitate the installation of fan operation monitoring device.


FAQ


1.Q: What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow rate(m3/h), Total pressure(Pa) or Static pressure(Pa), Inlet temperature(°C), Voltage and frequency on the working site.



2. Q:What is your delivery time?
A:15-35workdays, depending on the model of the fan.



3.Q:Are you manufacturer or trading company?
A:We are the professional manufacturer of centrifugal fans , over 65 years production experience and sales experience.



4.Q:What's your MOQ?
A:The MOQ is 1set,but larger quantity, lower price.



5.Q: What’s your warranty?
A: 12 months after arrival of the goods on site.



6.Q:How do you control the product's quality?
A:All the products have quality testing and dynamic balance before delivery.

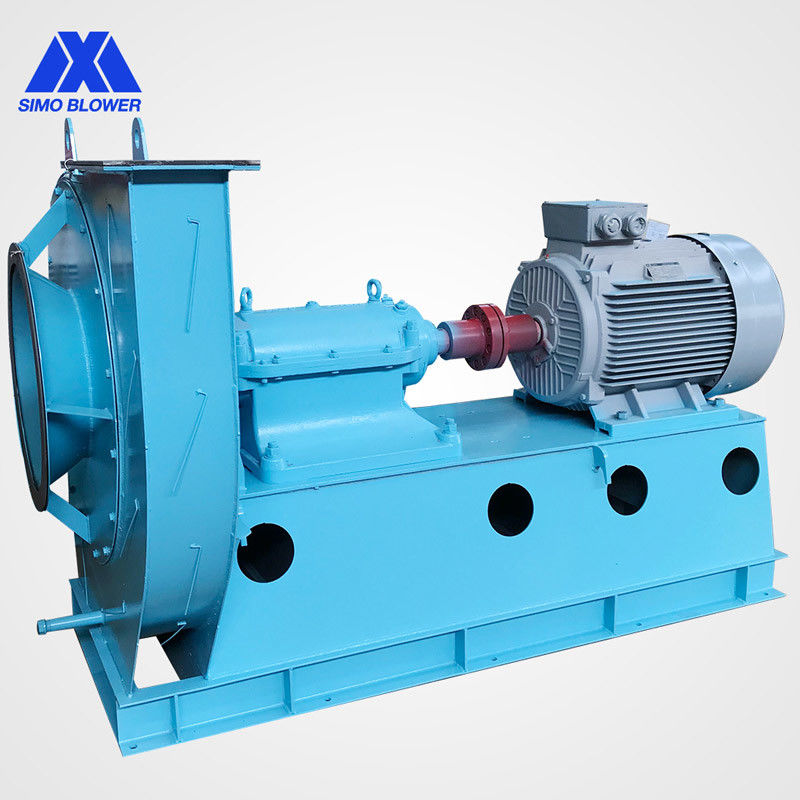

HG785 Alloyed Steel Backward Antifraying Boiler Centrifugal Fan 0

HG785 Alloyed Steel Backward Antifraying Boiler Centrifugal Fan 1
