Single Inlet HG785 Alloyed Steel Energy Saving Smelting Furnace Centrifugal Flow Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-03
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Feature: High Performance
After-sales Service Provided: Field Installation, Commissioning And Training Main Shaft: High-strength Carbon Structural Steel
Bearing Cooling: Air Cooling Or Circulating Water Cooling Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung
High Light:

Smelting Furnace Centrifugal Flow Fan

,

HG785 Centrifugal Flow Fan

,

HG785 industrial centrifugal blower

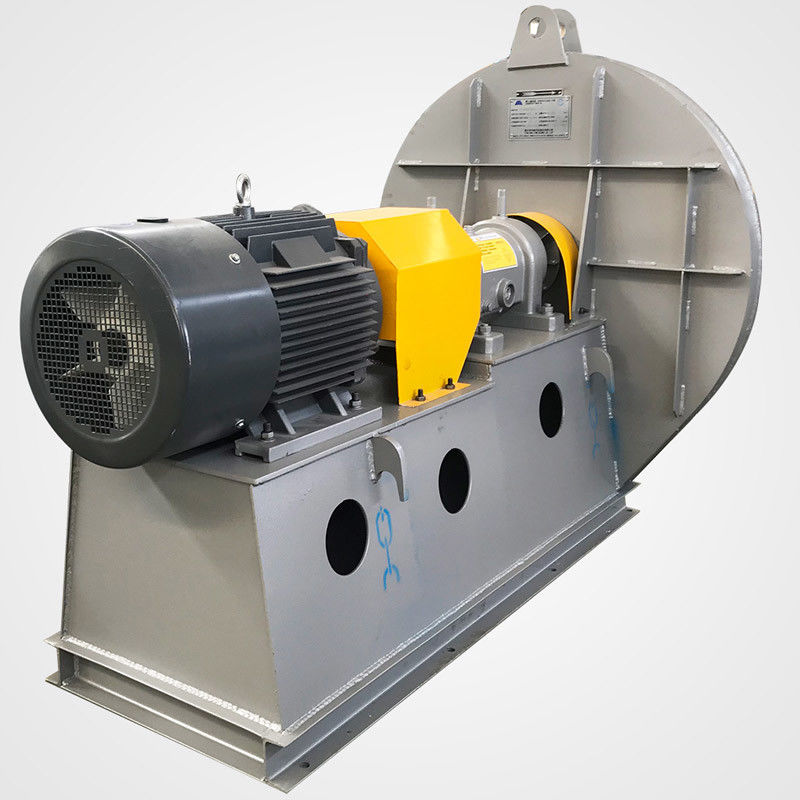

Single Inlet HG785 Alloyed Steel Energy Saving Smelting Furnace Centrifugal Flow Fan

Introduction



9-03 series fan-type iron furnace special high-pressure centrifugal fan, is suitable for IL/h, 2L/h, 3L/h, 3L/h, 7L/h melting rate of iron furnace blast performance requirements.

The fan can also be used as the blast for various furnace forging furnaces.

It is also suitable for conveying air and non-corrosive, non-self-igniting, non-viscous materials or light powder/debris/short fiber materials.

It is suitable for forced ventilation, forced cooling, blasting of smelting furnaces and foundry furnaces, pressurization or decompression sealing of industrial equipment.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
9-03 8D 2950 1668017631 30198117 3755
9D 2950 2134822314 432611632 75110



FAQ

1.Q: What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow rate(m3/h), Total pressure(Pa) or Static pressure(Pa), Inlet temperature(°C), Voltage and frequency on the working site.



2. Q:What is your delivery time?
A:15-35workdays, depending on the model of the fan.



3.Q:Are you manufacturer or trading company?
A:We are the professional manufacturer of centrifugal fans , over 65 years production experience and sales experience.



4.Q:What's your MOQ?
A:The MOQ is 1set,but larger quantity, lower price.



5.Q: What’s your warranty?
A: 12 months after arrival of the goods on site.



6.Q:How do you control the product's quality?
A:All the products have quality testing and dynamic balance before delivery.



Application



Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.



Single Inlet HG785 Alloyed Steel Energy Saving Smelting Furnace Centrifugal Flow Fan 0

Single Inlet HG785 Alloyed Steel Energy Saving Smelting Furnace Centrifugal Flow Fan 1

Single Inlet HG785 Alloyed Steel Energy Saving Smelting Furnace Centrifugal Flow Fan 2
