Carbon Steel v-belt driving High Volume Dust Collector Fan Blower

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-14
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung Color: Color
Power Source: Three Phase AC Motor Medium: Clean Air/Dusty Air
Current Type: AC Impeller Test: Ultrasonic Flaw Detection
High Light:

Carbon Steel Dust Collector Fan Blower

,

v belt Dust Collector Fan Blower

,

SWSI Dust Collector Fan Blower

Carbon Steel V-Belt Driving High Volume Dust Collector Fan Blower



Detail introduction



The 4-14 series centrifugal fan is suitable for indoor ventilation in general factories and large buildings.

It can be used to input gas as well as to output gas.

The gas delivered by the 4-14 series fan should be no more than 80 °C air and other gases that are not self-igniting and are not harmful to the human body and are not corrosive to steel materials. No viscous substances are allowed in the gas, and the dust and hard particles contained in the gas are not more than 150 mg/m3.



Product features



1. Made of high quality carbon steel, Stainless steel or other metal materials can also be used according to user requirements.

2. The impeller is annealed to completely eliminate structural stresses generated during welding, ensuring that the impeller does not undergo creep and cracking.

3. After the production is completed, all products are tested for running and vibration values for reliable operation.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
4-14 8C 1450 21771481 1698530134 18.5
9C 960 ~ 1450 824 ~ 2756 1601142906 11 ~ 30
10C 730 ~ 1450 588 ~ 3403 16701 58856 7.5 ~ 55
11.2C 730 ~ 1450 736 ~ 4276 23464 82688 11 ~ 90
12.5C 730 ~ 1450 912 ~ 5325 32619 114952 22 ~ 160
14C 730 ~ 1450 1147 ~ 6678 45827161499 37 ~ 315
16C 580 ~ 960 951 ~ 3825 54351159606 45 ~ 160



Application



1. In the factory, the workshops, warehouses and other departments are equipped with centrifugal fans, which play a role in ventilation, ensure the fresh air in the workshop, and help to purify the working environment and the health of employees. At the same time, the factory warehouse is equipped with centrifugal fans to dry the air to ensure that the mechanical equipment or other industrial products maintain the original quality.

2. Install centrifugal fans in mines and tunnels to re-enter fresh air and exhaust dirty air to ensure air circulation in the mines and tunnels.Centrifugal fans can help dust discharge, ensure air transparency in mines and tunnels, and ensure the health of workers in mines and tunnels.

3. A centrifugal fan is installed in the cooling tower, which not only plays the role of ventilation and ensures the normal operation of the cooling tower, but also plays a positive role in improving the cooling effect of the cooling tower by the large flow wind generated by the centrifugal fan.

4. Main ventilator in coal mine is an important equipment to ensure normal ventilation in underground mine, which not only affects the production capacity of coal mine, but also is very important to the safety of mining industry.

5. Centrifugal fans are widely used in boilers and industrial furnaces. They mainly play the role of ventilation and air induction. On the one hand, they ensure the environment of the boiler room or industrial kiln. On the other hand, they allow the replacement of oxygen-enriched air, which makes the firepower of the boiler or kiln more fierce and saves coal to a certain extent. Wait for power resources to reduce enterprise production costs.



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.

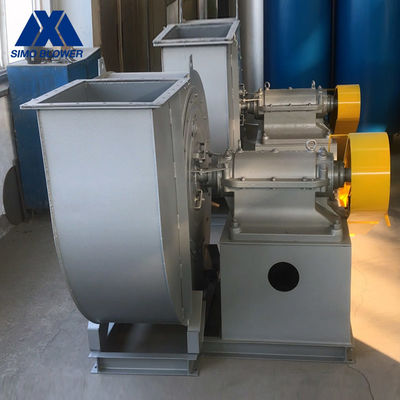

Carbon Steel v-belt driving High Volume Dust Collector Fan Blower 0

Carbon Steel v-belt driving High Volume Dust Collector Fan Blower 1
