Carbon Steel Coupling Driving Antifraying Heat Dissipation Flue Gas Centrifugal Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-10
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Drivetrain: Direct/Coupling Driven/V-belt Driven
Bearing: SKF/FAG/By Your Demand Power Source: Three Phase AC Motor
Motor: SIEMENS/ABB/By Your Demand Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung
High Light:

Flue Gas Centrifugal Fan

,

Carbon Steel flue exhaust fans

,

Coupling Driving flue exhaust fans

Carbon Steel Coupling Driving Antifraying Heat Dissipation Flue Gas

Centrifugal Fan



Introduction



The 9-10 series centrifugal fan can output high gas pressure, suitable for conveying normal or high temperature clean gas/combustible gas/corrosive gas/mixed with a few impurities, light particles/debris/short fiber materials.

The most commonly used for forced ventilation, rapid drying, rapid cooling and heat dissipation, cement production line chiller cooling, clinker cooler, circulating fluidized bed system, air purification and industrial waste gas treatment, flue gas desulfurization industrial boilers or incinerators forced draft/ induced draft/ primary/ secondary air, ventilation of large mill system, industrial waste heat recovery device, blasting of smelting furnace and casting furnace, combustion of blast furnace, coal injection of blast furnace, pressurized transportation of gas, Pressurization or decompression sealing of industrial equipment.



Product Features



1. It can output very high pressure and can work at higher medium temperature, suitable for any industrial occasion where high pressure & high temperature gas needs to be delivered.

2. In the case of using the common base , the installation is very simple and basically does not require the support of professional technicians.

3. The bearing box is reserved with the temperature and vibration sensor installation position, which can conveniently install the fan operation monitoring device.

4. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.

5. Customized design according to customer performance requirements, and optimized by CFD technology, the energy consumption is lower than similar models.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
9-10 8D 14502900 323115034 329714287 7.5110
9D 1450 41014597 469510717 1522
10D 1450 49585840 644015455 3037
11.2D 9601450 27057364 599021713 1575
12.5D 9601450 39759229 832730186 22110
14D 9601450 424911668 1169942409 37220
16D 9601450 557515425 1746363305 75315


FAQ



1.Q: What’s the MOQ of your company ?

A: The MOQ is 1set.

2.Q: How long is the delivery time ?

A:5-35 days.

3.Q : What’s your payment terms ?

A : T/T, L/C, or Negotiable.

4.Q: What’s your warranty ?
A: 1 year.

5.Q: Is your company factory or trade company ?

A: We have our own factory, our type is factory +trade.

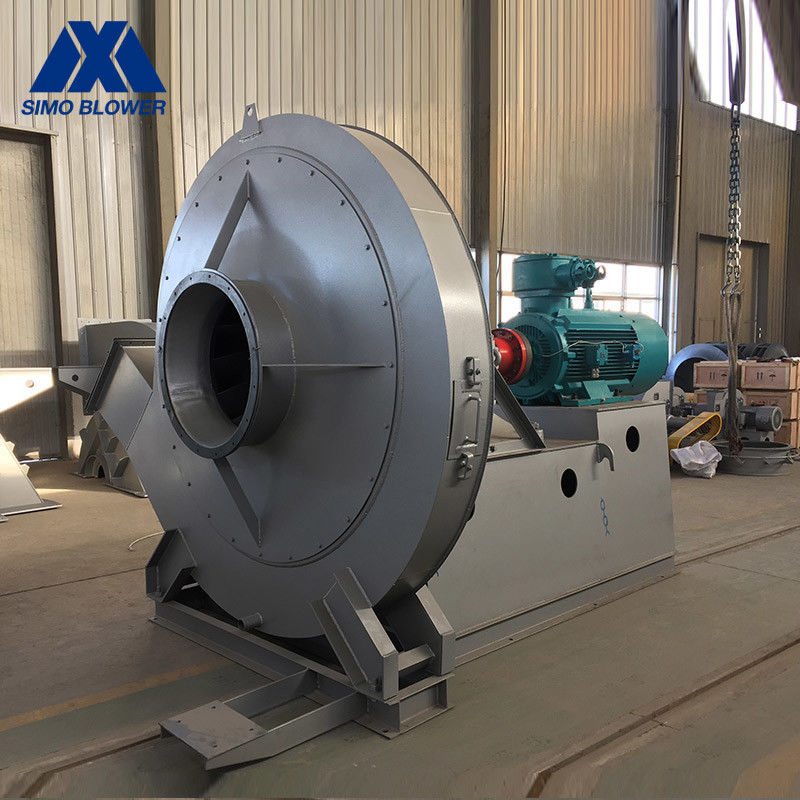

Carbon Steel Coupling Driving Antifraying Heat Dissipation Flue Gas Centrifugal Fan 0

Carbon Steel Coupling Driving Antifraying Heat Dissipation Flue Gas Centrifugal Fan 1
