AC Motor Antifraying Exhaust Cement Fan Blower 4486 ~ 8971m3/h

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 7-08
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Voltage: 380V/415V/440V/660V/6KV/10KV Material: Carbon Steel/Alloy Steel/Stainless Steel
Bearing Cooling: Air Cooling Or Circulating Water Cooling Category: Blower
Main Shaft: High-strength Carbon Structural Steel Blade: Forward / Backward/Backward Curved
High Light:

Antifraying Cement Fan

,

8971m3/H Cement Fan

,

AC Motor Cement Blower

AC Motor AC Motor Antifraying Exhaust Cement Blower Fan



Introduction

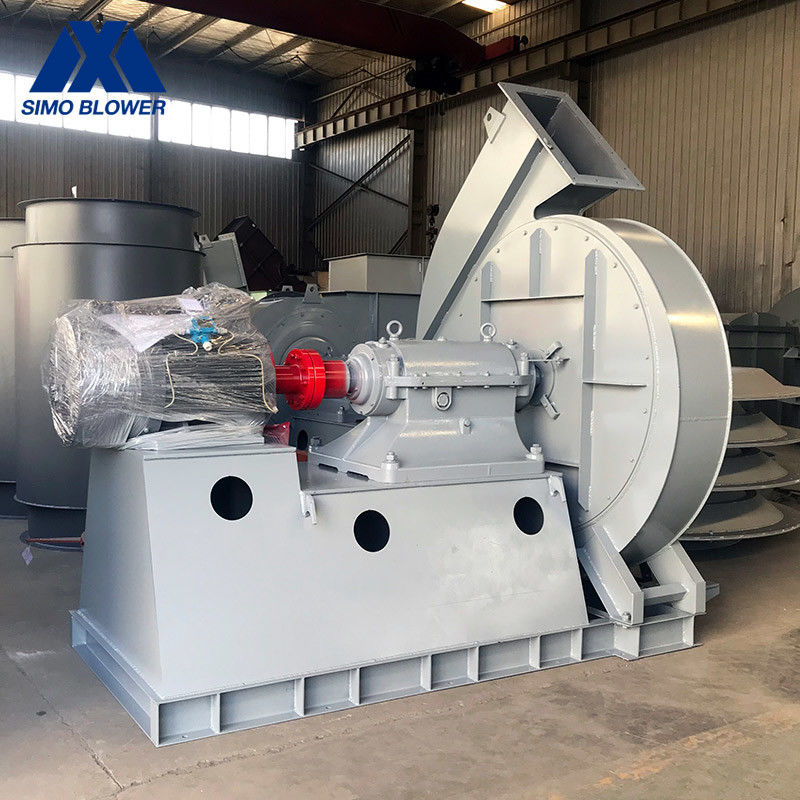

The 7-08. series medium pressure centrifugal fan is the latest series of high-efficiency industrial centrifugal fan developed by our company. It has the highest efficiency of 85.4%.

It belongs to small flow and medium pressure series.

It has stable and high performance and is widely used in environmental dust removal, material transportation and equipment matching in industrial fields.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
7-08 5D 3030 2982 ~ 3456 4486 ~ 8971 11 ~ 15
5.6D 2360 26232264 49099817 11
7.1D 1830 ~ 2450 2188 ~ 3862 775720771 15 ~ 30
8D 1910 35173034 1158223164 30
9D 1570 30022591 1355527111 30
10D 1470 ~ 1650 2806 ~ 4109 17410 36478 45 ~ 55



Product Features



1.This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.

2.The current collector and impeller front plate are processed by advanced spinning process and ensure precision.

3. V-belt driving and coupling driving type fan are equipped with integral bearing box, which has good lubrication, stable operation and long bearing life.



FAQ


1,What parameters need to be provided when you design the industrial centrifugal fans?

 A: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2,How about your company’s pre-sales service and after-sales service?
A: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3,Does your company have qualifications?
 A: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
